APPENDIX 17-5

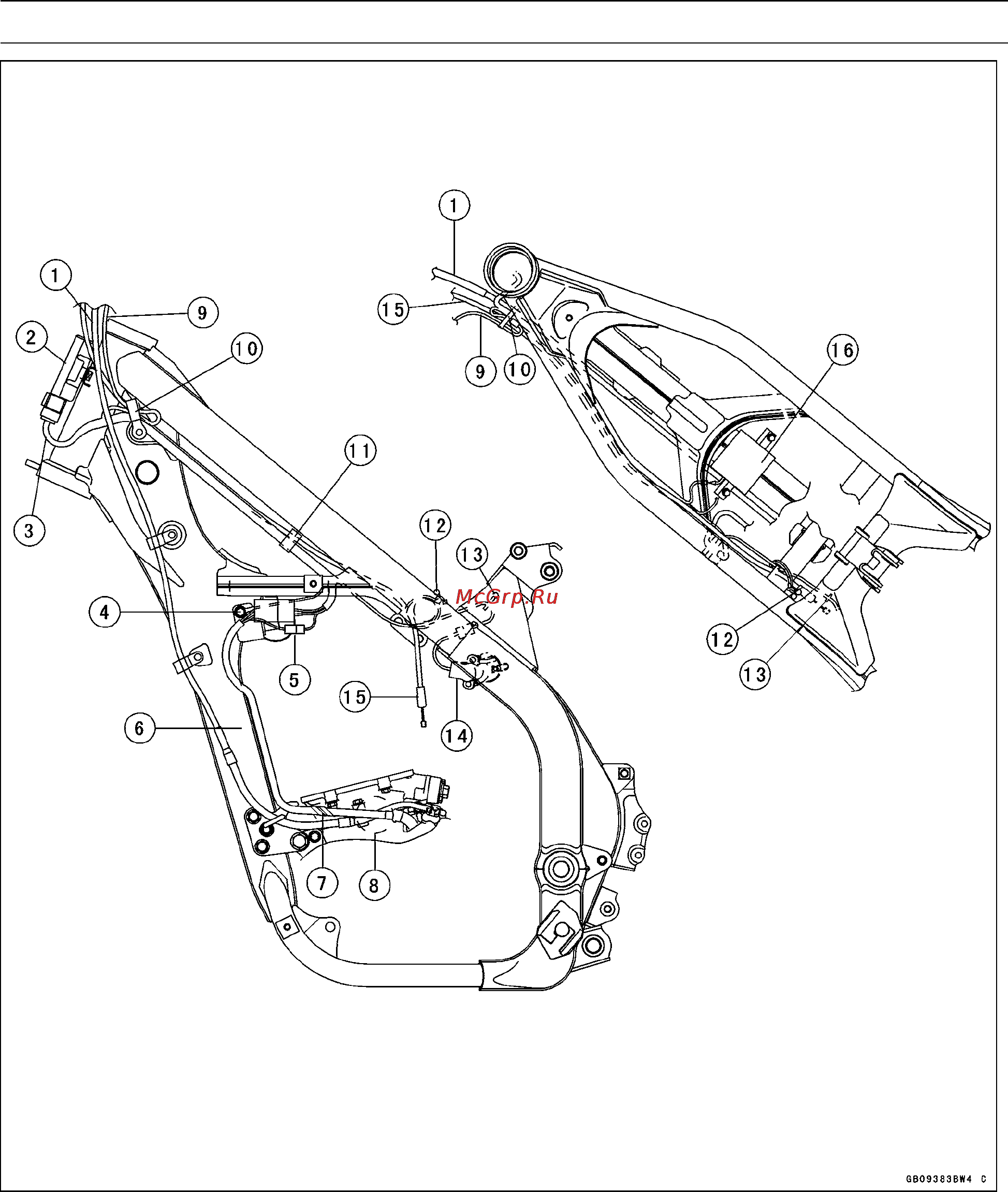

Cable, Wire, and Hose Routing
1. Clutch Cable
2. C.D.I. Unit
3. Main Harness
4. Bolt (together with ground lead terminal)
5. Neutral Switch Lead Connector
6. Magneto Lead
7. Clamp
8. Run the magneto lead outside of the
clutch cable.
9. Engine Stop Switch
10. Clamp (Hold the hot start cable, engine
stop switch lead and main harness.)
11. Clamp (Run the hot start cable and main
harness.)
12. Clamp (Hold the hot start cable and throt-
tle sensor lead.)
13. Clamp (Run the throttle sensor lead of
main harness side.)
14. Throttle Sensor
15. Hot Start Cable
16. Ignition Coil
