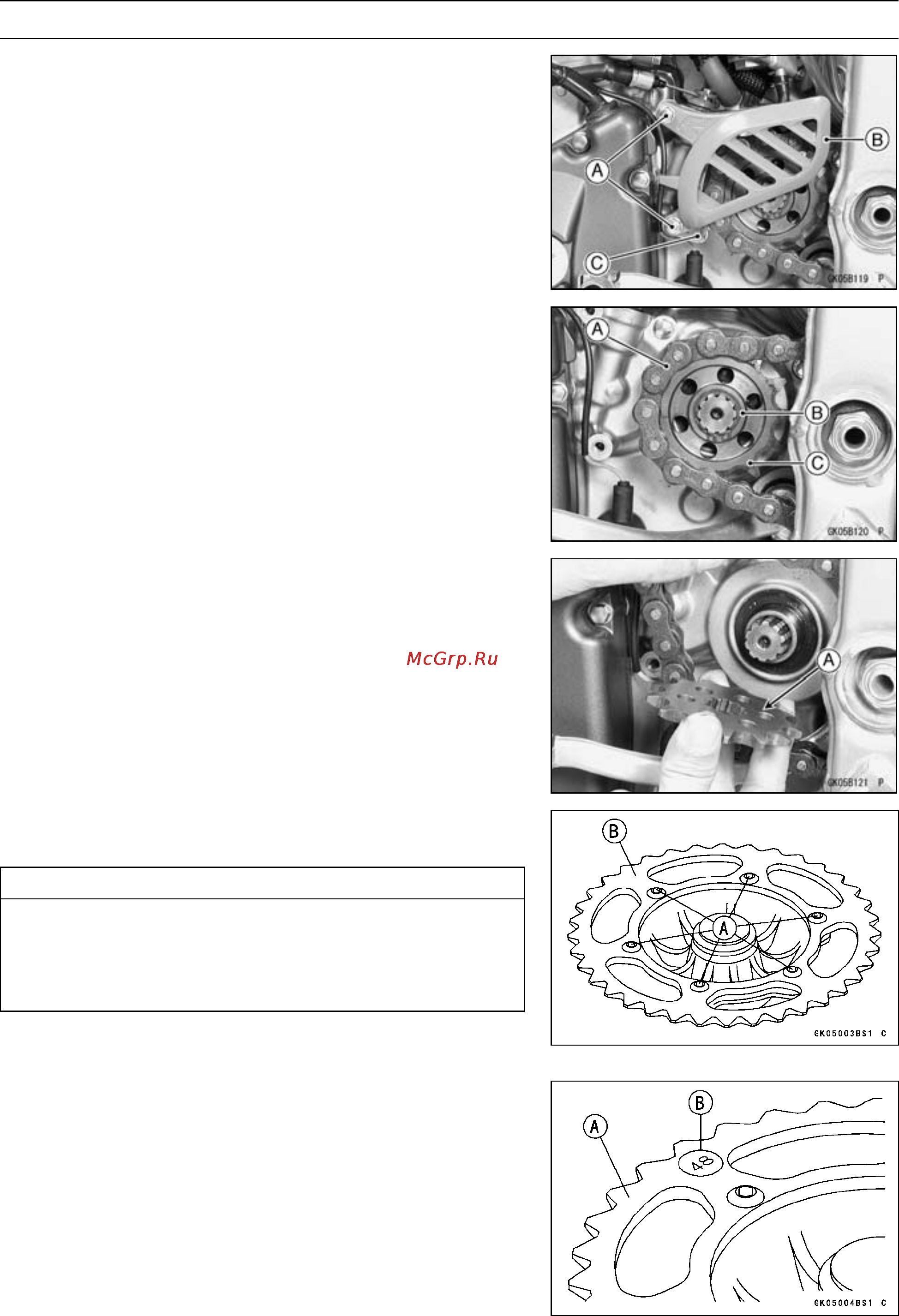

FINAL DRIVE 11-9
Sprockets
Engine Sprocket Removal
•
Remove:
Engine Sprocket Cover Bolts [A]
Engine Sprocket C over [B]
Drive Chain Guide [C]
•
Remove:
Drive Chain [A] (free of engine sprocket)
•
Remove the circlip [B], and pull off the engine sprocket
[C].
Special Tools - Outside Circlip Pliers: 57001–144
Engine Sprocket Installation
•
Install the engine sprocket so that the flatten side faces
[A] inside.
•
Replace the circlip with a new one.
•
Install the circlip so that the tooth is aligned with a spline
groove.
Special Tools - Outside Circlip Pliers: 57001–144
Torque - Engine Sprocket Cover Bolts: 4.9 N·m (0.5 kgf·m,
43 in·lb)
Rear Sprocket Removal
•
Remove the rear wheel (see Wheels/Tires chapter).
CAUTION
Do not lay the wheel on the ground with the disc
facing down. This can damage or warp the disc.
Place blocks under the wheel so that the disc does
not touch the ground.
•
Unscrew the rear sprocket bolts [A], and remove the rear
sprocket [B].
Rear Sprocket Installation
•
Install the rear sprocket [A] so that the marked side [ B]
faces out.
•
Install the rear sprocket bolts and tighten the nuts.
Torque - Rear Sprocket Nuts: 34 N·m (3.5 kgf·m, 25 ft·lb)
Sprocket Wear Inspection
•
Refer to the Sprocket Wear Inspection in Periodic Main-
tenance chapter.
