16-20 ELECTRICAL SYSTEM
Ignition System
Exciter Coil Peak Voltage Check:
•
Disconnect the connector of the magneto lead connector
from the main harness.
•
To check the peak voltage, do the following procedures.
NOTE
○
Measure the voltage with each lead connected cor-
rectly. The correct value may not be obtained if
disconnected.
○
Maintain the correct value of compression pressure for
the cylinder (Be sure to measure the voltage with the
spark plug installed to the cylinder head).
○
Set the hand tester to DC 250 V range.
○

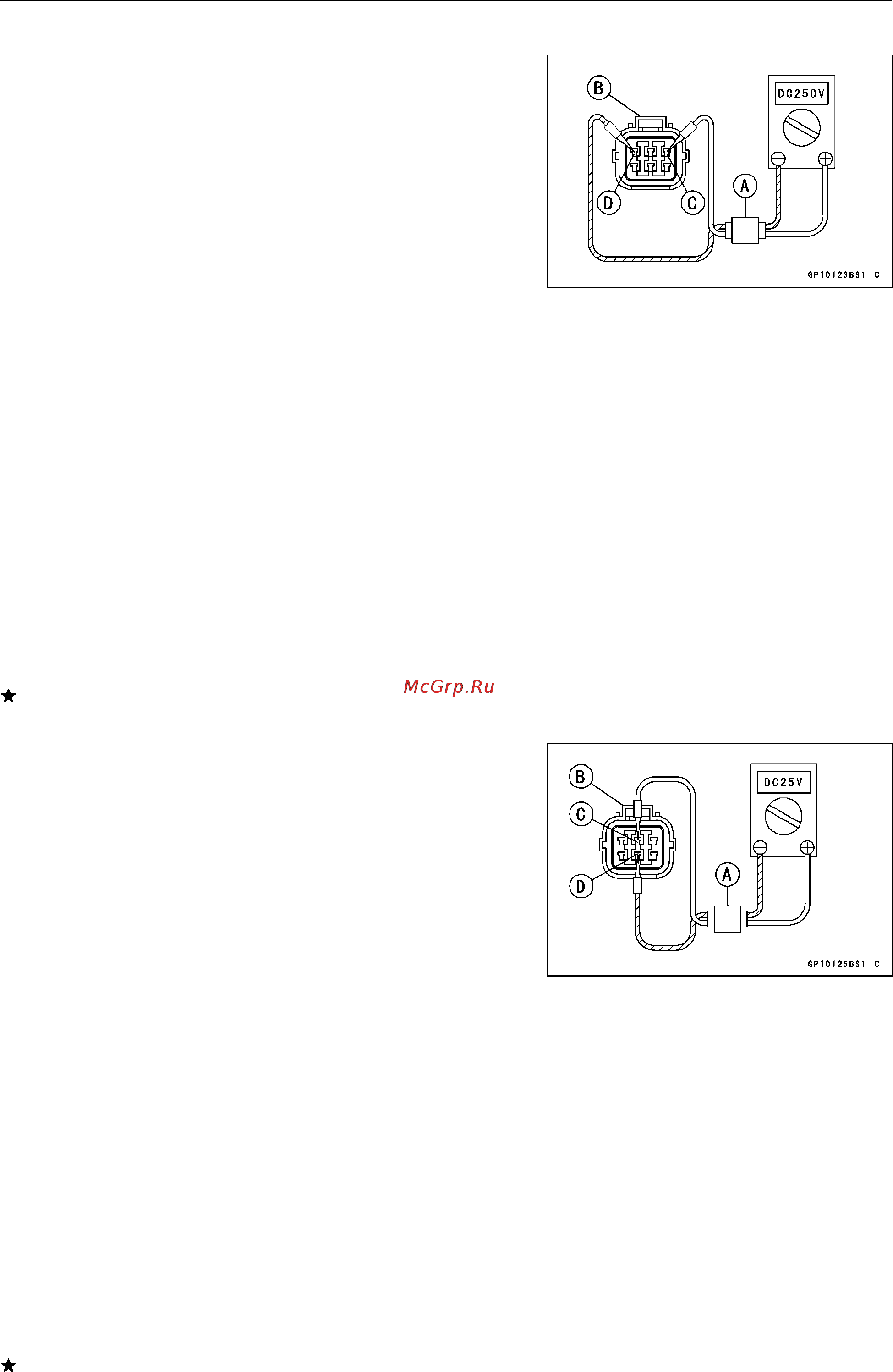

Connect the peak voltage adapter [A] to the tester and the
terminals of the magneto lead connector [B].
Recommended Tool: Peak Voltage Adapter
Type: KEK-54-9-B
Brand: KOWA SEIKI
Connection: Adapter Positive → Red/White
Lead [C]
Adapter Negative → Brake/Red
Lead [D]
○
Crank the engine by kicking the pedal several times to
measure the peak voltage of the exciter coil.
Peak Voltage: 40 V or Above
If the voltage is less than the specified, check the exciter
coil.
Charge Coil Peak Voltage Check:
•
Disconnect the connector of the magneto lead connector
from the main harness.
•
To check the peak voltage, do the following procedures.
NOTE
○
Measure the voltage with each lead connected cor-
rectly. The correct value may not be obtained if
disconnected.
○
Maintain the correct value of compression pressure for
the cylinder (Be sure to measure the voltage with the
spark plug installed to the cylinder head.)
○
Connect the peak voltage adapter [A] to the tester and the
terminals of the magneto lead connector [B].
Recommended Tool: Peak Voltage Adapter
Type: KEK-54-9-B
Brand: KOWA SEIKI
Connection:
Adapter Positive → Yellow
Lead [C]
Adapter Negative → Yellow
Lead [D]
○
Crank the engine by kicking the pedal several time to
measure the peak voltage of the charge coil.
Peak Voltage: 8.8 V or Above
If the voltage is less than the specified, check the charge
coil.
