SUSPENSION 13-27

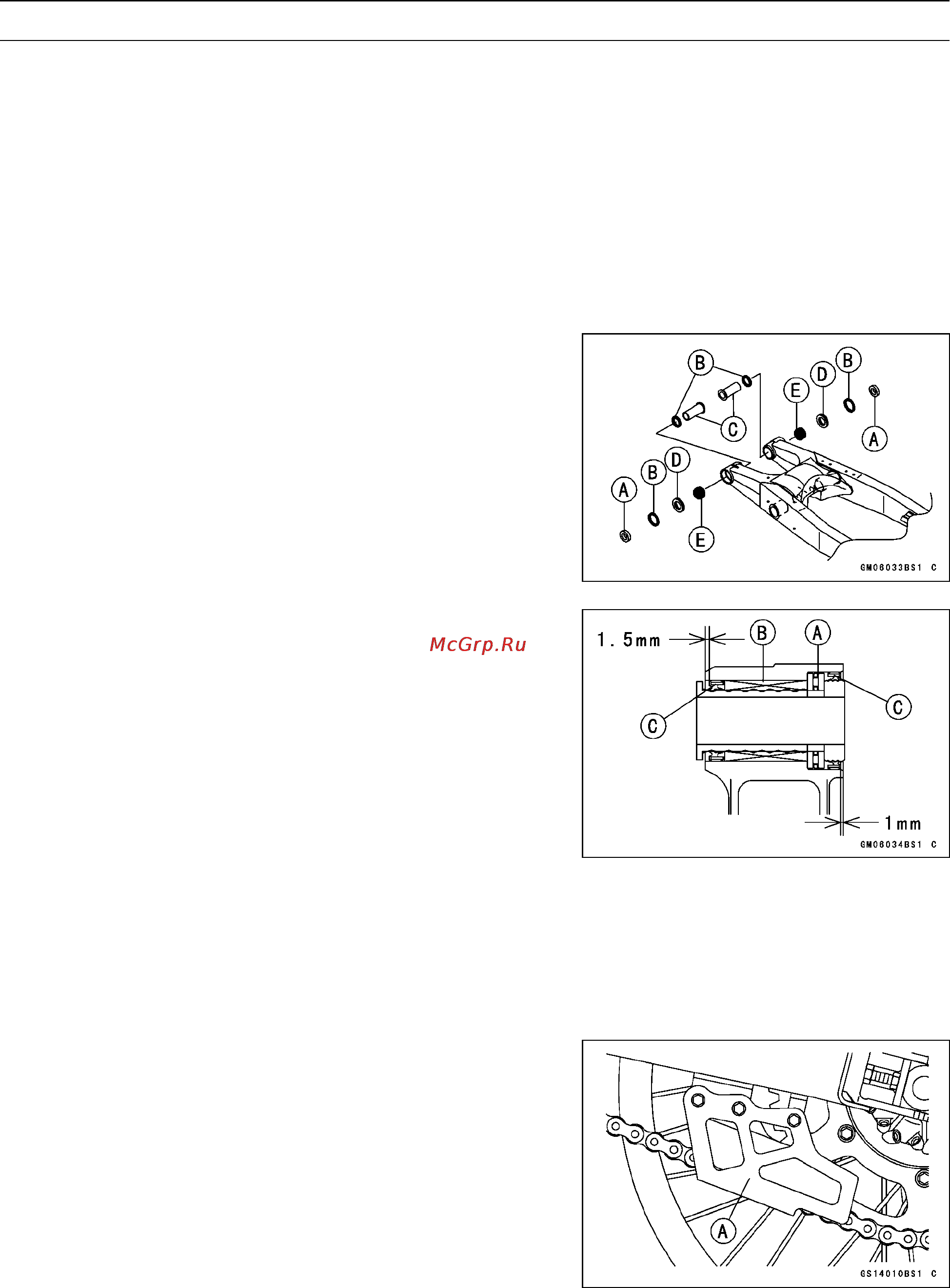

Swingarm
Swingarm Installation
•
Apply plenty of grease to the inside of the needle bear-
ings, sleeves, and oil seals.
•
Tighten the following:
Torque - Swingarm Pivot Shaft Nut: 98 N·m (10.0 kgf·m, 72
ft·lb)
Rocker Arm Mounting Nut: 83 N·m (8.5 kgf·m, 61
ft·lb)
•
Refer to the W heels/Tires, Final Drive, and Brakes chap-
ters for wheel installing.
Swingarm Bearing Removal
•
Remove:
Swingarm
Collars [A]
Grease Seals [B]
Sleeves [C]
Needle Bearings [D]
•
Remove the needle bearings [E] using the oil seal & bear-
ing r emover.
Special Tool - Oil Seal & Bearing Remover: 57001–1058
Swin garm Bearing Installation
•
Replace the needle bearings and, grease seals with new
ones.
•
Apply plenty of grease to the grease seals, and needle
bearings [A].
NOTE
○
Install the needle bearings so that the manufacturer’s
marks face out.
○
Install the grease seals so that the deep groove side of
the rip in-ward.
Special Tool - Bearing Driver Set: 57001–1129
•
Install the needle bearings [A], [B], and grease seals [C]
position as shown.
○
The installation procedure is the same as the counter
side.
Drive Chain Guid e, Guide Roller, Chain S lipper Wear
•
Visually inspect the drive chain guide [A] and replace i t if
excessively w orn or dam aged.
