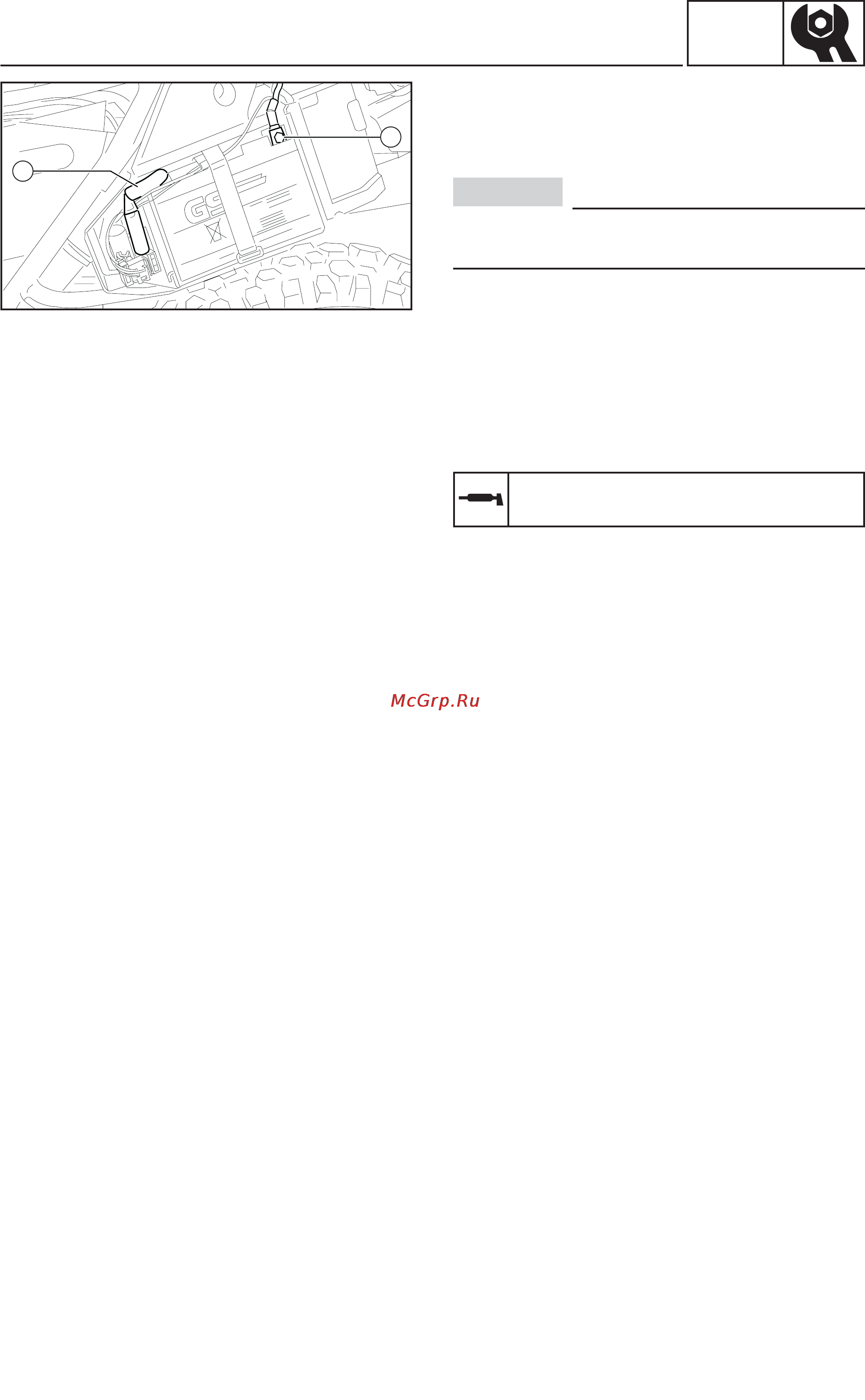

CHECKING AND CHARGING THE BATTERY
3-52
INSP
ADJ
6. Connect:
•
Battery leads
(to the battery terminals)
First, connect the positive lead 2, then the
negative lead 1.
7. Check:
•
Battery terminals
Dirt ➔ Clean with a wire brush.
Loose connection ➔ Connect properly.
8. Lubricate:
•
Battery terminals
CAUTION:
9. Install:
•
Panel
•
Seat
1
2
Recommended lubricant
Dielectric grease
