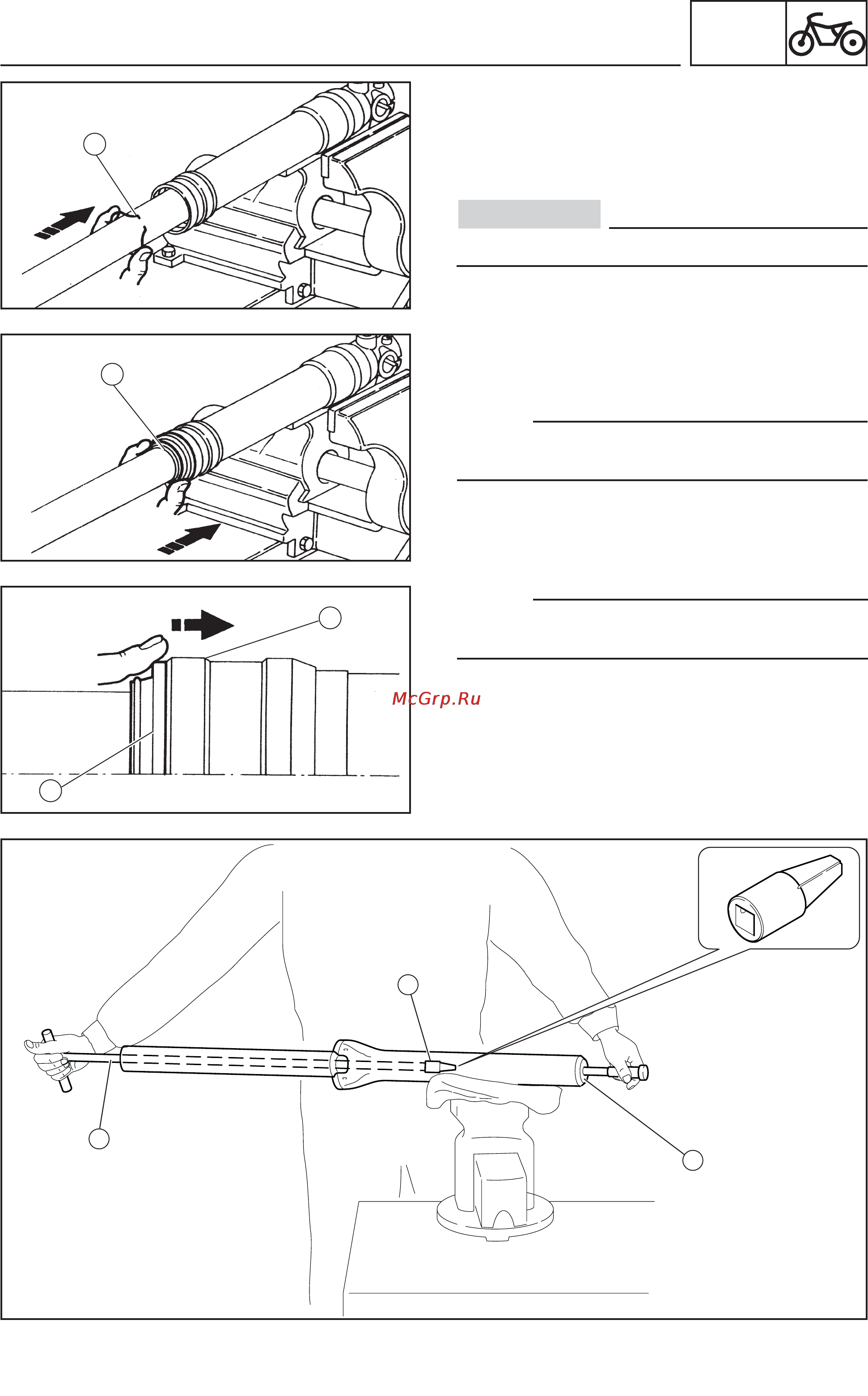

CHAS
FRONT FORK
4-55
16. Tightly clamp the fork leg horizontally fasten-
ing it by caliper attachment on the outer tube.
17. Install:
•
Snap ring (1)
Check that the snap ring is correctly seated.
CAUTION:
18. Install:
•
Dust seal (1) (new)
NOTE:
Apply lightweight lithium-soap base grease to the
dust seal before installing it.
NOTE:
Taking care to insert completely the dust seal (1)
with force in the outer tube (2).
1
1
1
2
3
2
1
