Yamaha TT600RE (2004) [213/382] Engine disassembly
![Yamaha TT600RE (2004) [213/382] Engine disassembly](/views2/1121411/page213/bgd5.png)
ENG

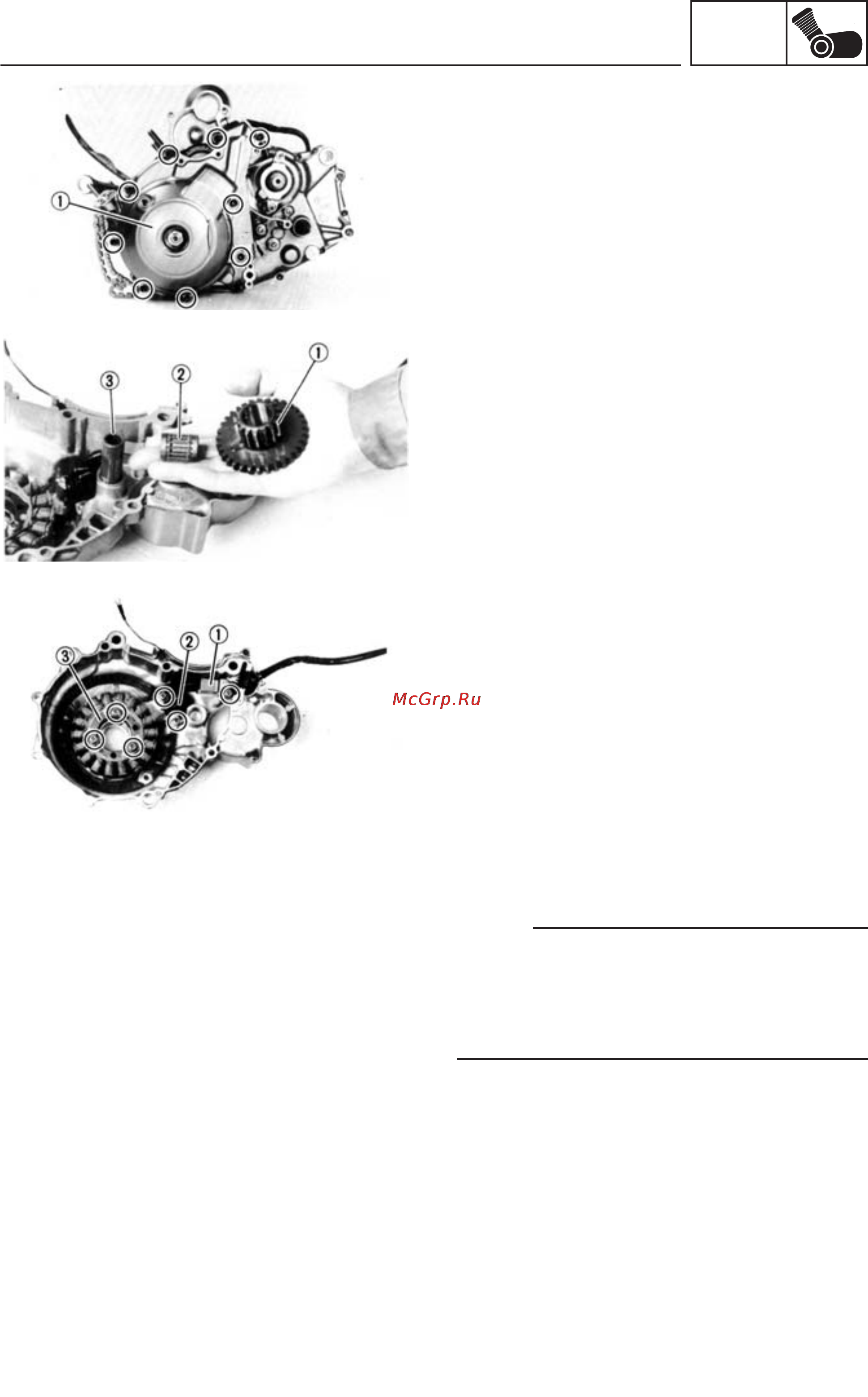

ENGINE DISASSEMBLY
5-9
4. Remove:
•
Crankcase cover gasket (1) (L)
•
Centring pins
•
Seal ring and O-ring
•
Gasket
6. Remove:
•
Cable clamp (1)
•
Coil (2)
•
Stator (3)
CRANKCASE COVER (R), CLUTCH, PRIMARY
DRIVE GEAR AND BALANCER SHAFT GEAR
NOTE:
The clutch, the primary gear and the balance gear
may be inspected with the engine installed by
removing the following parts.
•
Footrest (R)
•
Oil delivery hose screw
5. Remove:
•
Intermediate starter gear (1)
•
Bearing (2)
•
Distributor shaft (3)
