CHAS
DRIVE CHAIN, DRIVE SPROCKET
AND REAR WHEEL SPROCKET
4-83
a
6. Remove:
•
Swingarm
•
Drive chain
Refer to “REAR SHOCK ABSORBER
REMOVAL” and “SWINGARM REMOVAL”
sections.

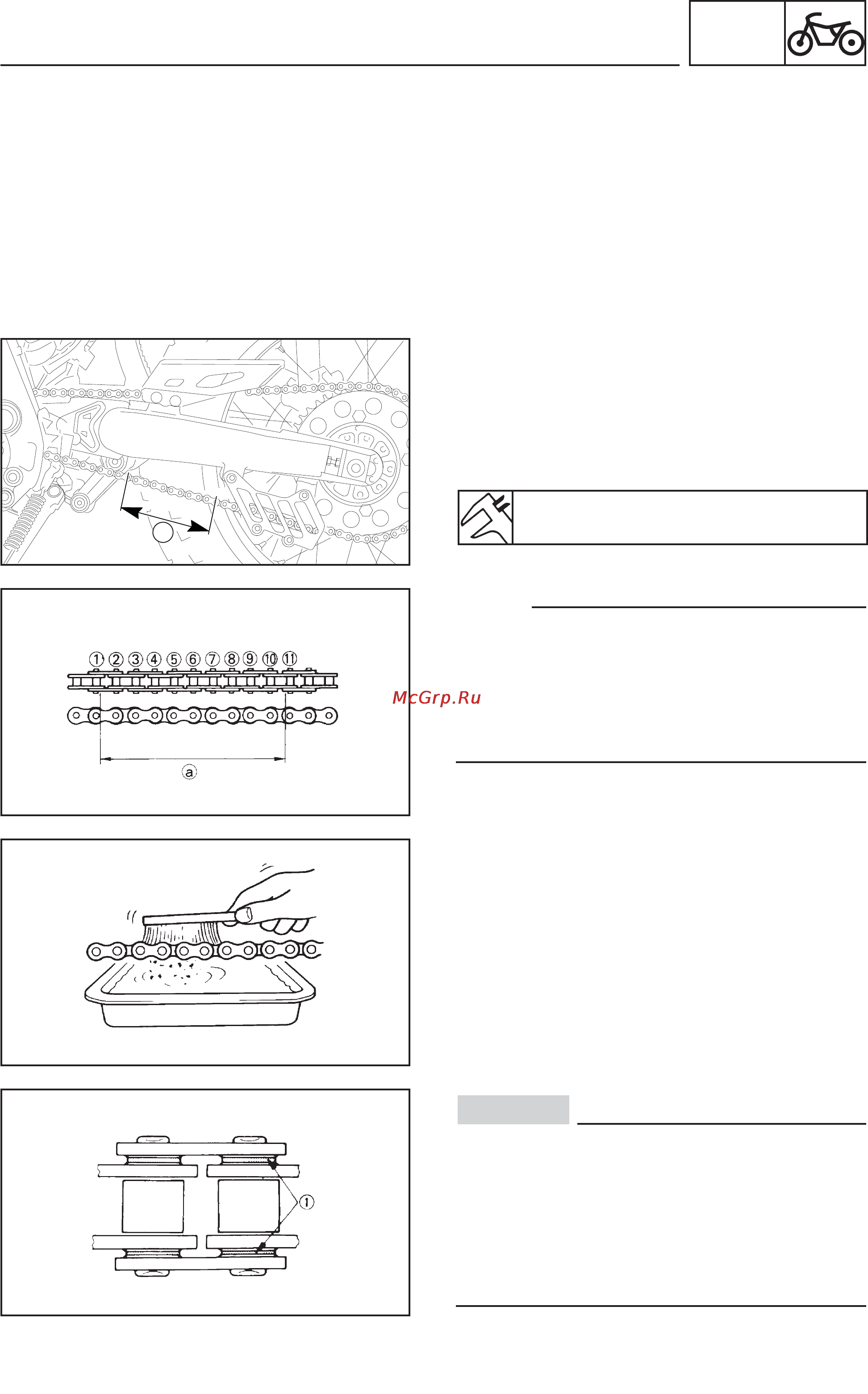

DRIVE CHAIN INSPECTION
1. Measure:
•
Length of 10 links (drive chain)
Out of specification ➔ Replace drive
chain.
Maximum lenght of 10 links (a):
150.2 mm
NOTE:
•
Stretch the chain by hand to measure it.
•
The length of the 10 links is recorded between
the inside of the link pins (1) and (11) as
shown.
•
The length of the 10 links is measured at var-
ious points.
2. Clean:
•
Drive chain
Immerge in kerosene and brush thorough-
ly to remove as much dirt as possible.
Remove from kerosene and allow to dry.
This motorcycle is fitted with a chain with
small O-Rings (1) fitted between its plates.
Vapour cleaning, pressurised washing and
certain types of solvents may damage these
seal rings.
To clean the transmission chain use only
kerosene.
CAUTION:
