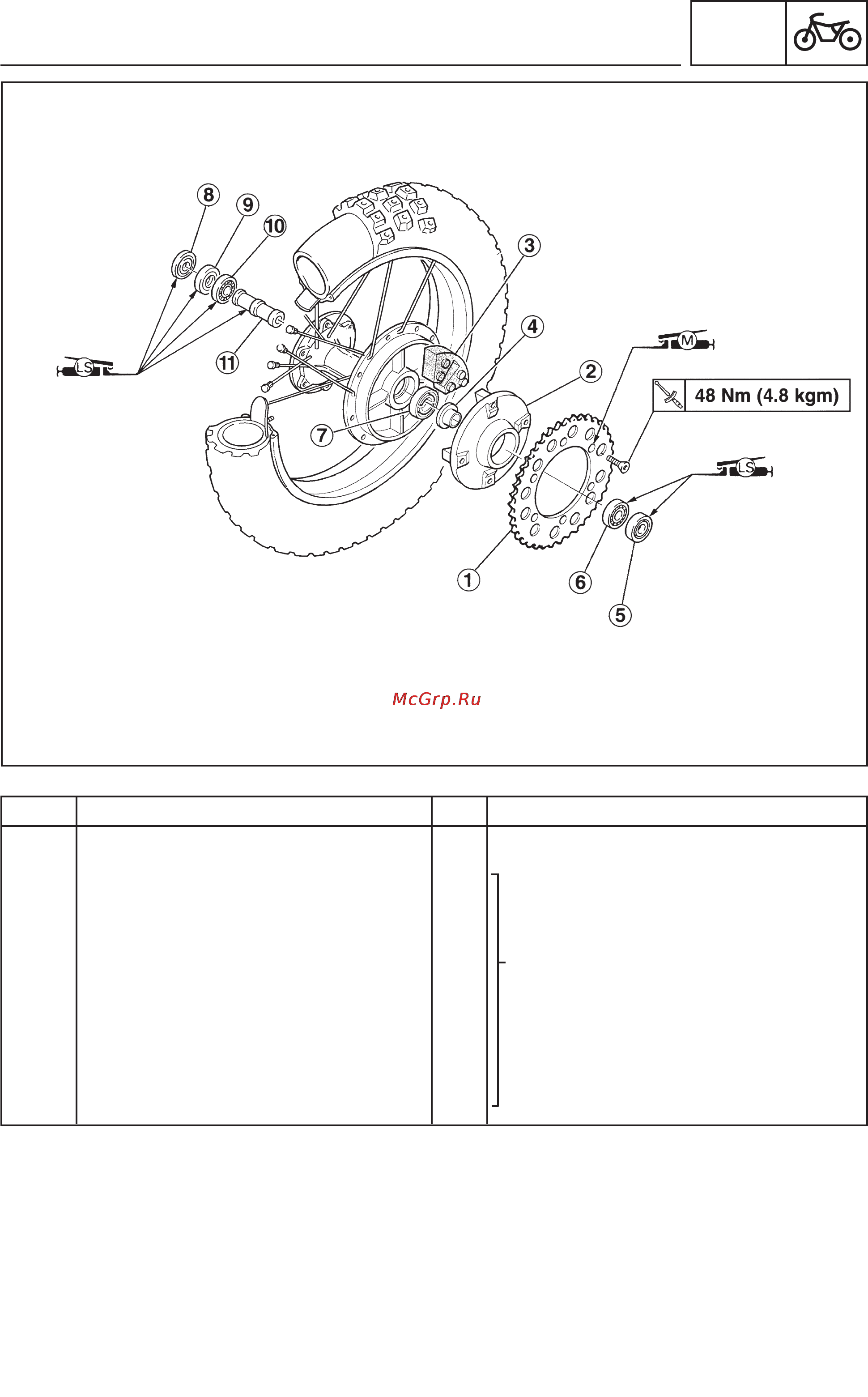

REAR WHEEL AND BRAKE DISC
4-22
CHAS
Order Job name/Part name Q.ty Remarks
Rear wheel disassembly Remove the parts in order.
1 Driven sprocket 1
2 Hub 1
3 Damper 4
4 Spacer 1
Refer to “REAR WHEEL DISASSEMBLY/AS-
5 Oil seal 1
SEMBLY” section.
6 Bearing 1
7 Bearing 1
8 Hub dust cover 1
9 Oil seal 1
10 Bearing 1 Reverse the removal procedure for installa-
11 Bearing spacer 1 tion.
