ENG
ENGINE DISASSEMBLY
5-11

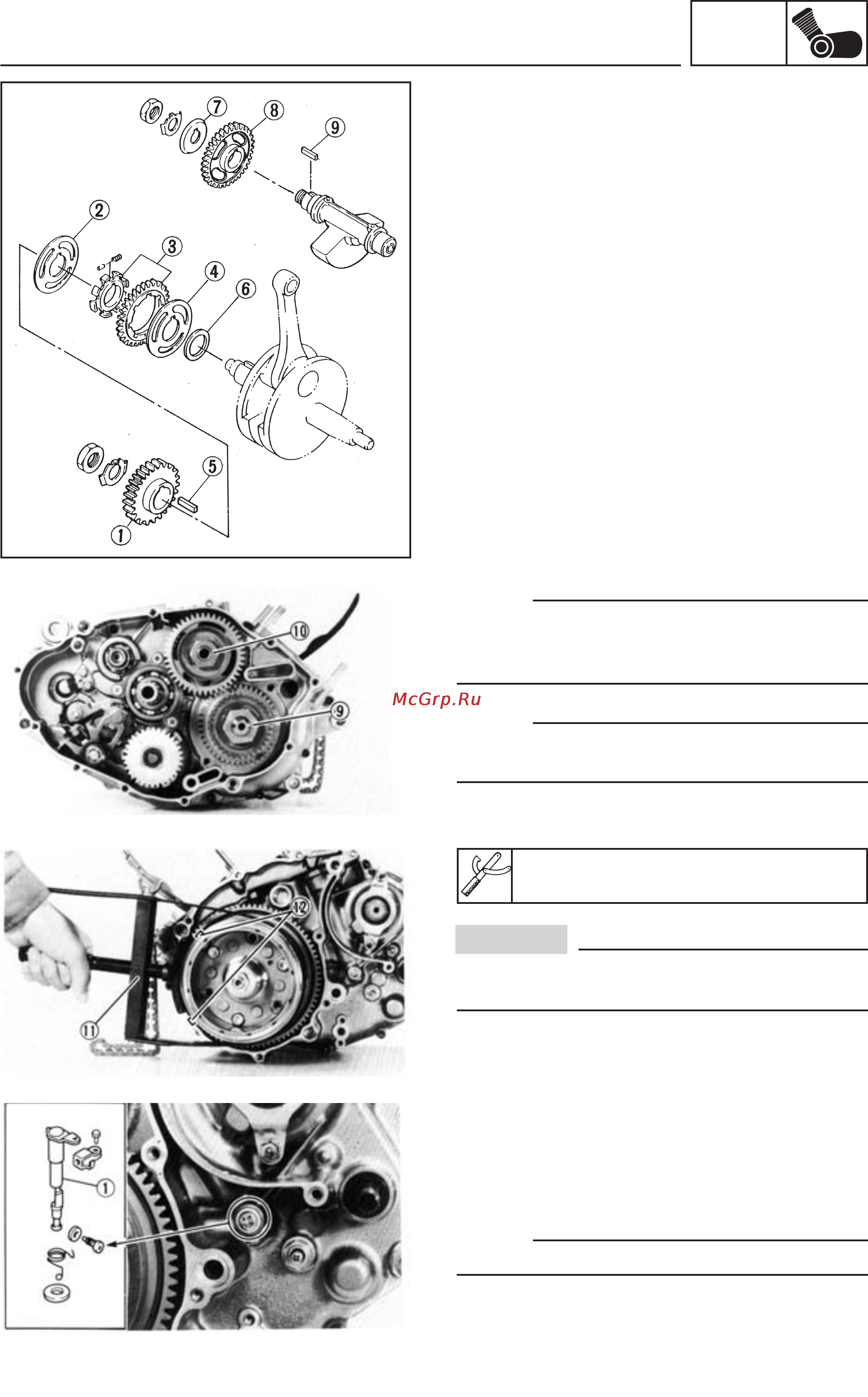

3. Remove
•
Primary drive gear (1)
•
Disc (2)
•
Balancer drive gear (3)
•
Disc (4)
•
Key (5)
•
Disc washer (6)
•
Disc (7)
•
Balancer gear (8)
•
Straight key (9)
NOTE:
Before loosening the nut (9) (primary drive gear)
and nut (10) (balancer gear), straighten the wash
lock tab.
NOTE:
To loosen nuts (9) and (10), hold the rotor (CA
magneto) firmly in place using special tool (11).
Sheave holder:
P/N. 90890-01701
Be careful not to touch jutting edges (12) on
the rotor with the sheave holder.
CAUTION:
4. Remove:
•
Push lever (1)
•
Spring
•
Flat washer
NOTE:
Loosen the screw to remove the push rod.
