1-7
GEN
INFO

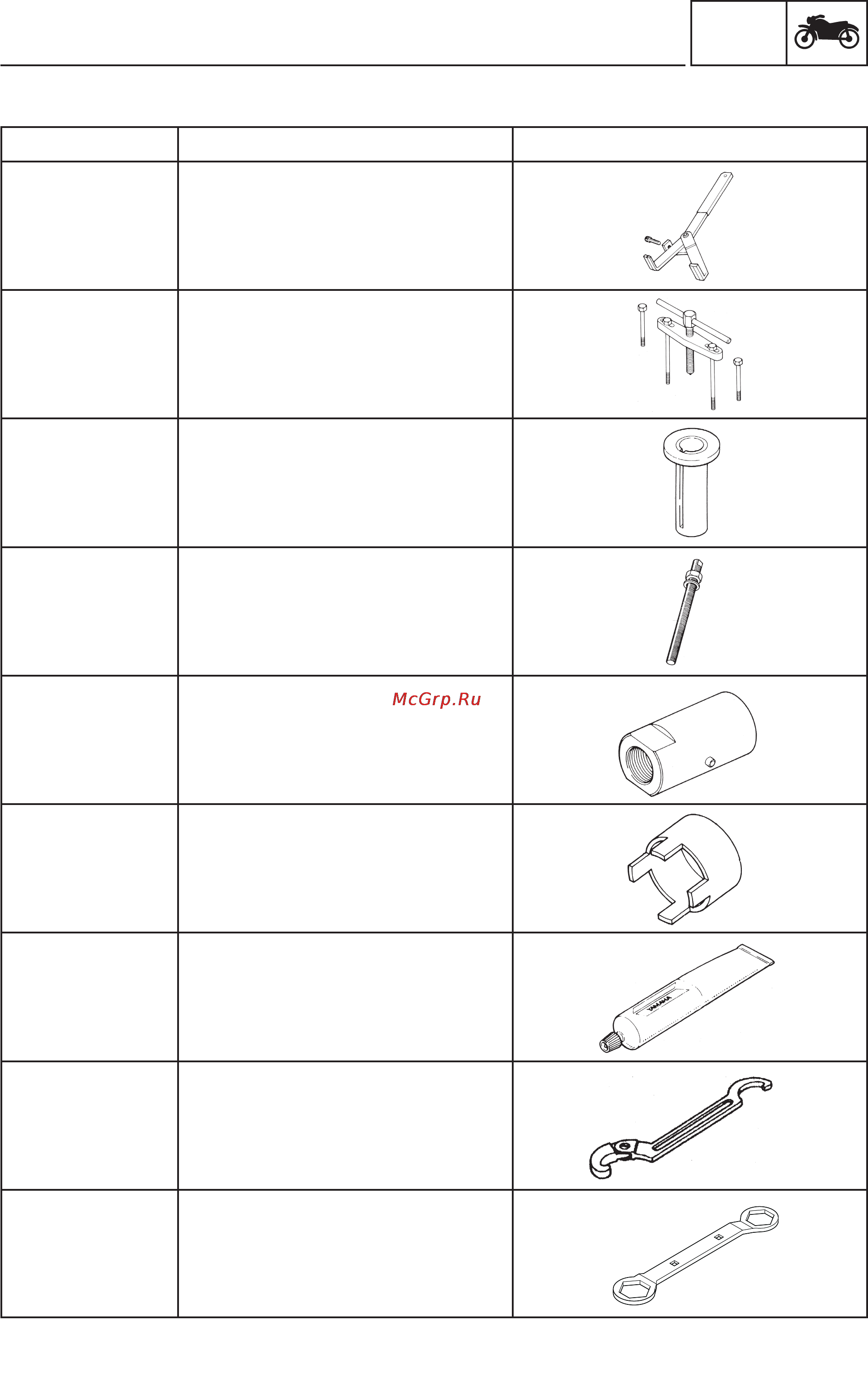

SPECIAL TOOLS
Tool No.
Tool name / Usage Illustration
90890-04086
All-purpose clutch holder
This tool is used to lock the clutch, when the
clutch boss lock nut is being loosened or
tightened.
90890-01135
Crankcase separating tool
This tool is necessary to disassemble the
crankcase.
90890-01274
Crankshaft installation hose
This tool is used to install the crankshaft.
90890-01275
Crankshaft installation bolt
This tool is used to install the crankshaft.
90890-04059
#10 (M14) adapter
This tool is used to install the crankshaft.
90890-04081
Crank spacer
This tool is used to install the crankshaft.
90890-85505
SEALANT (QUICK GASKET) ®
Yamaha Bond No. 1215 ®
This sealant (adhesive) is used for crankcase
mating surfaces etc.
90890-01268
Ringnut wrench
This tool is used to loosen and tighten the
steering ringnut.
90890-01348
Ringnut wrench
This tool is used to loosen and tighten the
steering ringnut.
