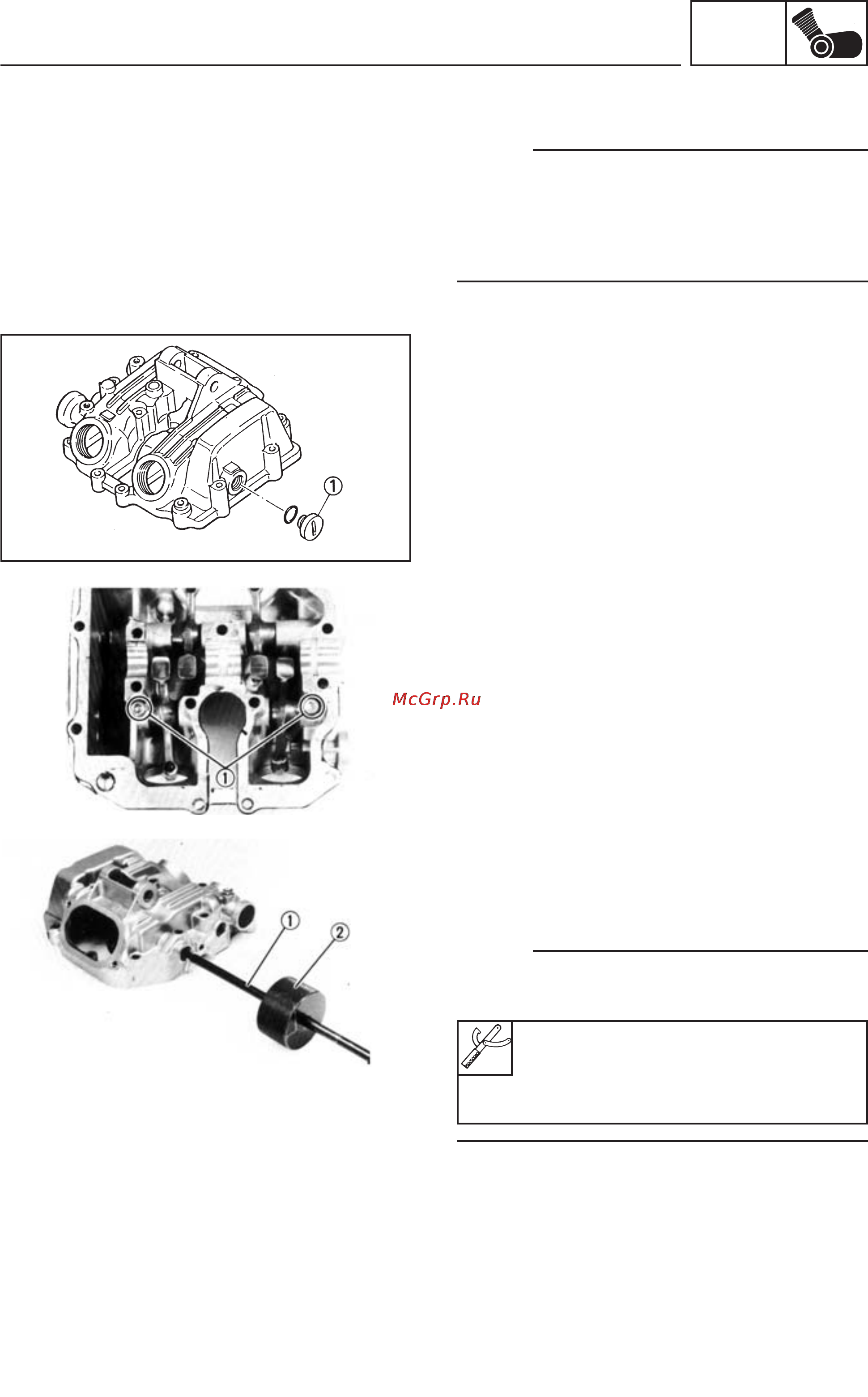

ENGINE DISASSEMBLY
5-18
ENG
ROCKER ARMS
NOTE:
The rocker arms may be examined with the
engine installed by removing the following parts.
•
Seat
•
Fuel tank
•
Cylinder head cover
1. Remove:
•
Cap (1)
2. Remove:
•
Bolts (1) (rocker shaft)
3. Remove:
•
Rocker shaft
•
Rocker arms
NOTE:
Remove the rocker shaft using sliding hammer (1)
and weight (2).
Sliding hammer bolt:
P/N. 90890-01083
Weight:
P/N. 90890-01084
