REAR BRAKE
4-30
CHAS
Brake components must not be disassem-
bled. The builder declines every responsibility
after brake components disassembly (brake
master cylinder or brake caliper) or in case of
use of non original parts.
DO NOT:
•
Remove brake components from the
motorcycle unless is absolutely necessary.
•
Use solvents on internal brake components.
•
Use brake fluid already used for bleeding.
•
Allow brake fluid to come into contact with
the eyes as it may cause injury.
•
Allow brake fluid to come into contact with
painted or plastic parts as it may damage
them.
•
Disconnect any hydraulic connection, other-
wise the whole system must be disassem-
bled, drained, cleaned, then properly filled
and bled after reassembly.
CAUTION:
NOTE:
It is unnecessary to disassemble the brake hose
to replace the pads.
NOTE:
•
If you replace the pads, also replace the pad
support.
•
If one of the two pads has to be replaced
because it is worn, replace both.

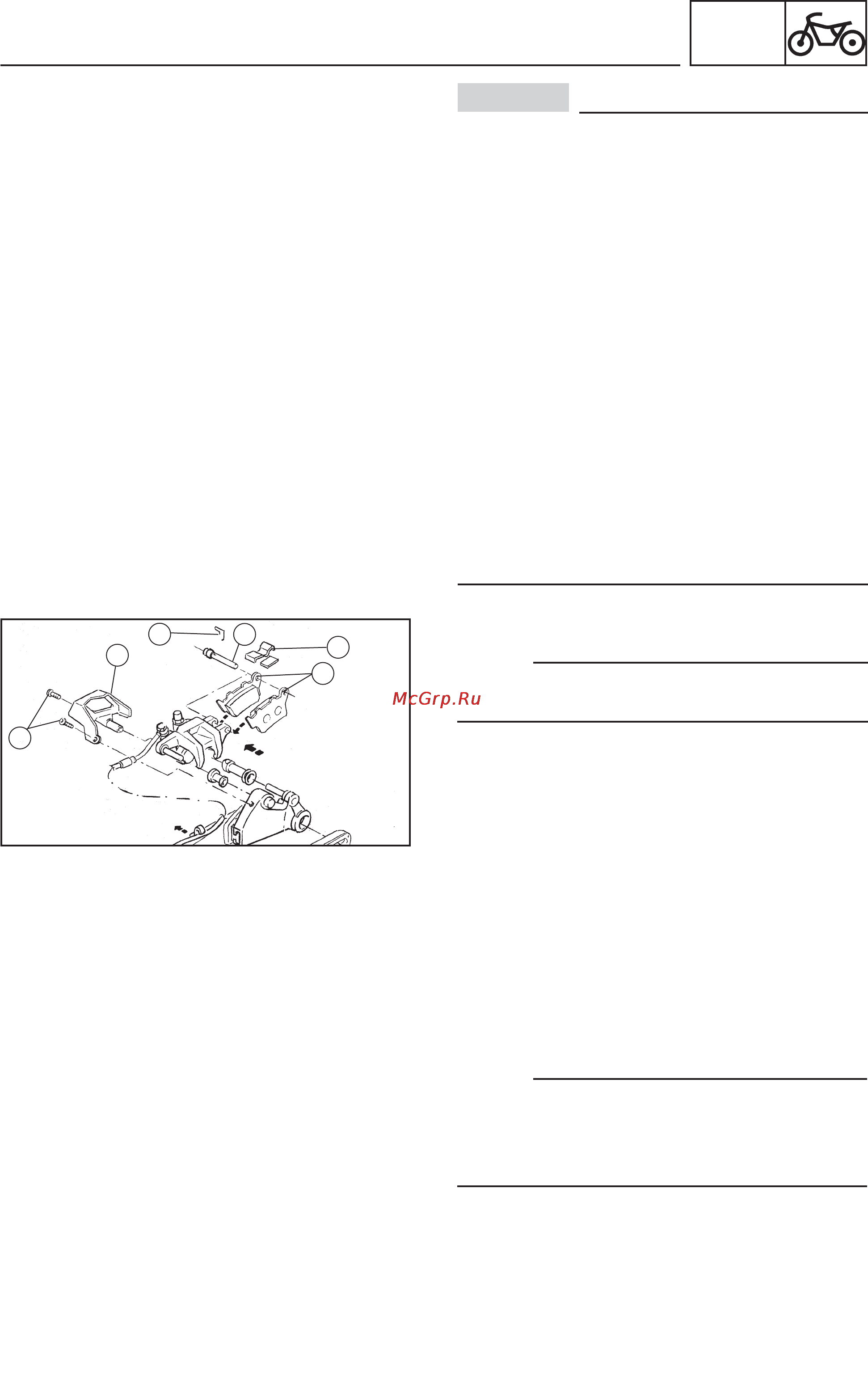

BRAKE PAD REPLACEMENT
1. Remove:
•
Rear wheel (refer to “REAR WHEEL
REMOVAL” section).
•
Bolt (caliper protector) (1)
•
Brake caliper protector (2)
•
Pad pin retainer (3)
•
Brake pad pin (4)
Remove the caliper in the illustrated direc-
tion.
2. Remove:
•
Brake pads (5)
•
Pad support (6)
6
4
3
2
1
5
