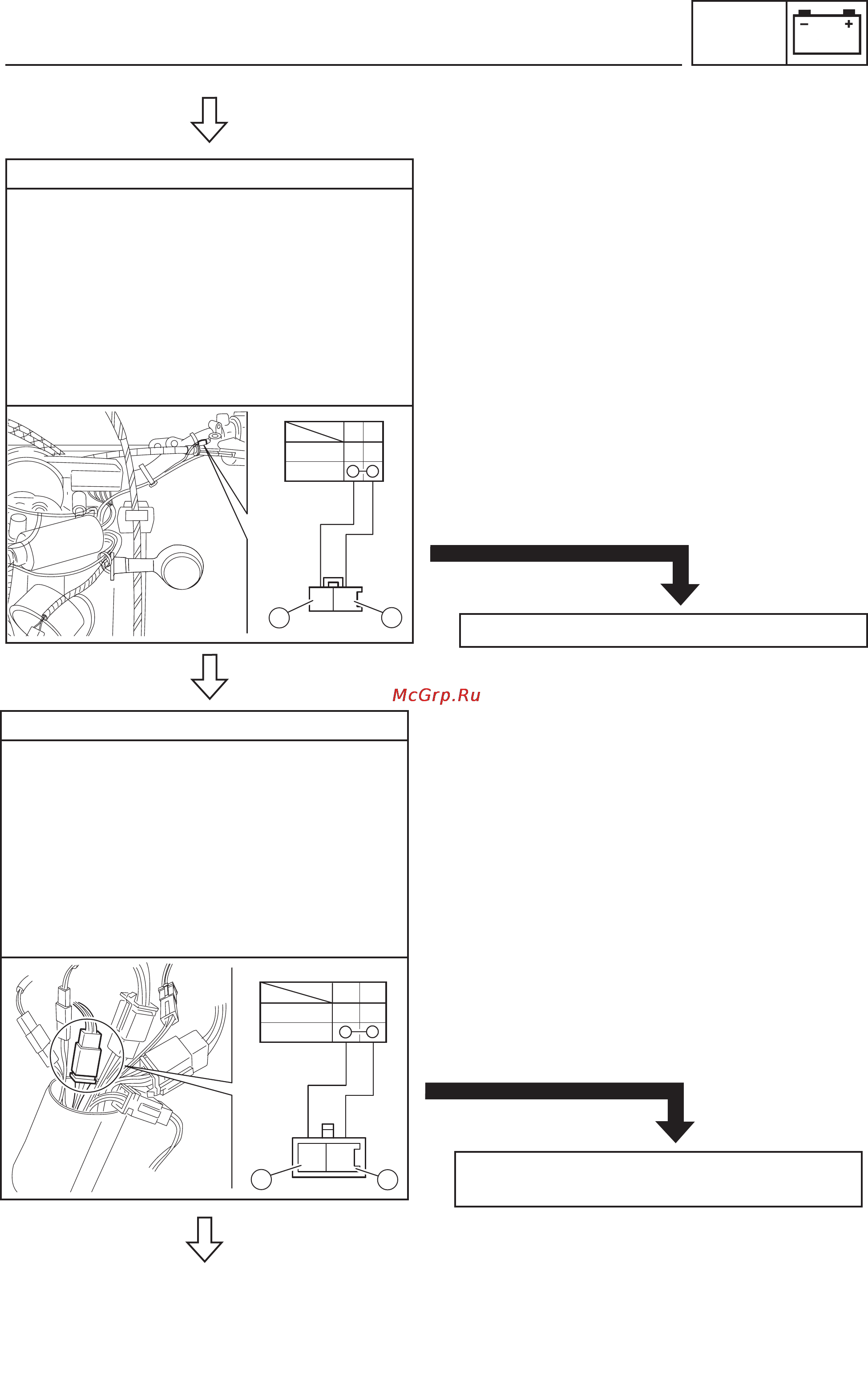

9. Clutch switch.
•
Disconnect the clutch switch connector
from the harness.
•
Connect the pocket tester (Ω x 1) to the
clutch switch cable.
•
Check the clutch switch component for
continuity between “Black (1)” and “Black
(2)”.
Refer to “SWITCH CHECK” in Chapter 3.
INCORRECT
The clutch switch is defective. Replace.
Release
Hold
B
B
B
B
1
2
CORRECT
7-28
ELEC
ELECTRICAL STARTING SYSTEM
INCORRECT
The start switch is defective. Replace the right
handlebar switch.
10. Start switch.
•
Disconnect the start switch connector
from the harness.
•
Connect the pocket tester (Ω x 1) to the
handlebar switch terminal.
•
Check the start switch component for con-
tinuity between “Blue/White (1)” and
“Black/Yellow (2)”.
Refer to “SWITCH CHECK” in Chapter 3.
CORRECT
Free
Pushed in
LW
L/W
BY
BY
2
1
*
