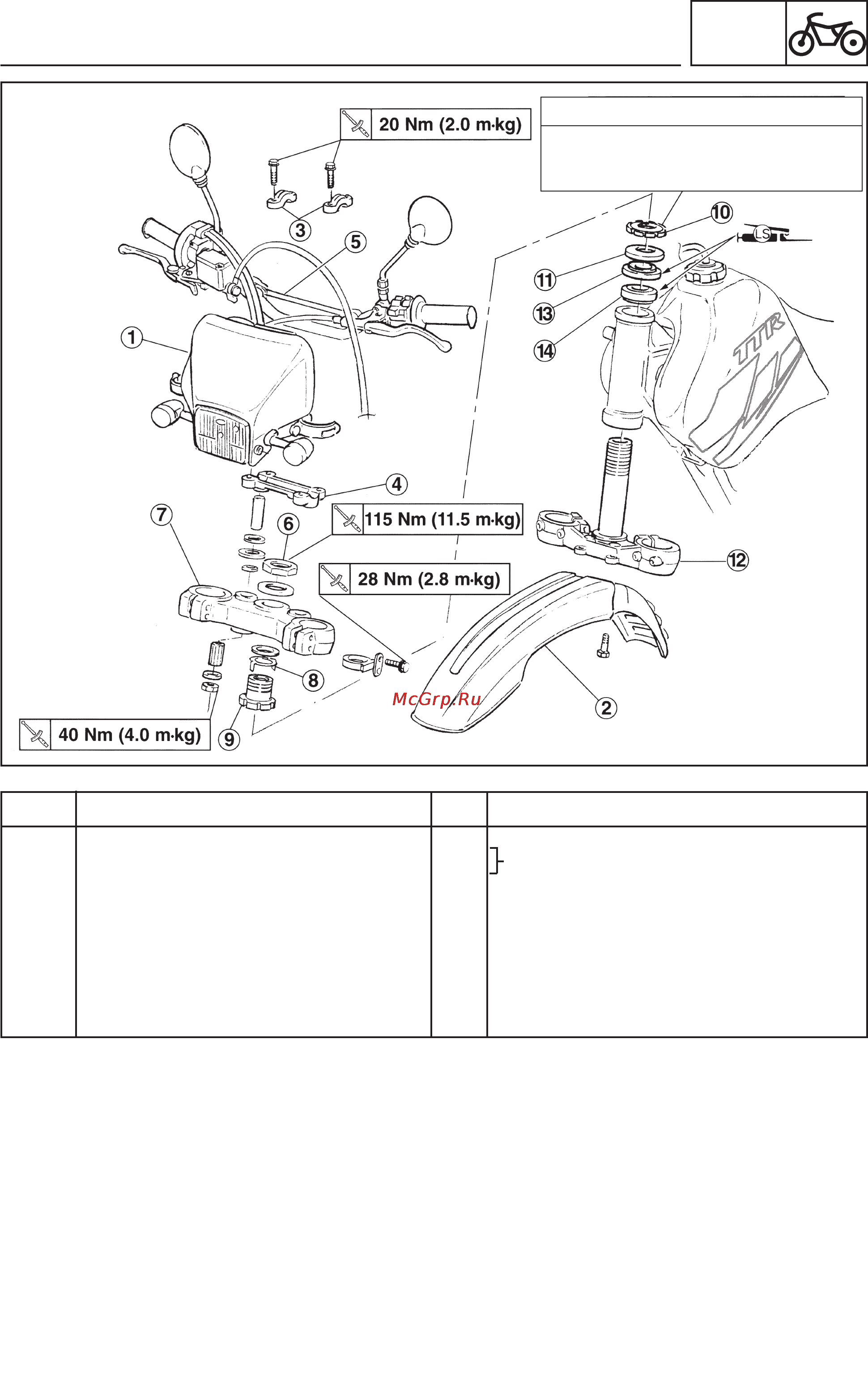

STEERING
4-62
CHAS
Order Job name/Part name Q.ty Remarks
9 Upper ring nut 1 Refer to “STEERING REMOVAL/INSTAL-
10 Lower ring nut 1 LATION” section.
11 Ball race cover 1
12 Lower bracket/Steering axle 1
13 Bearing (upper) 1
14 Bearing (lower) 1
Reverse the removal procedure for instal-
lation.
TIGHTENING PROCEDURE
• Initial tightening 38 Nm (3.8 mkg)
• Loosen 1 turn
• Final tightening 4 Nm (0.4 mkg)
