Yamaha TT600RE (2004) [278/382] Engine assembly and setting
![Yamaha TT600RE (2004) [278/382] Engine assembly and setting](/views2/1121411/page278/bg116.png)

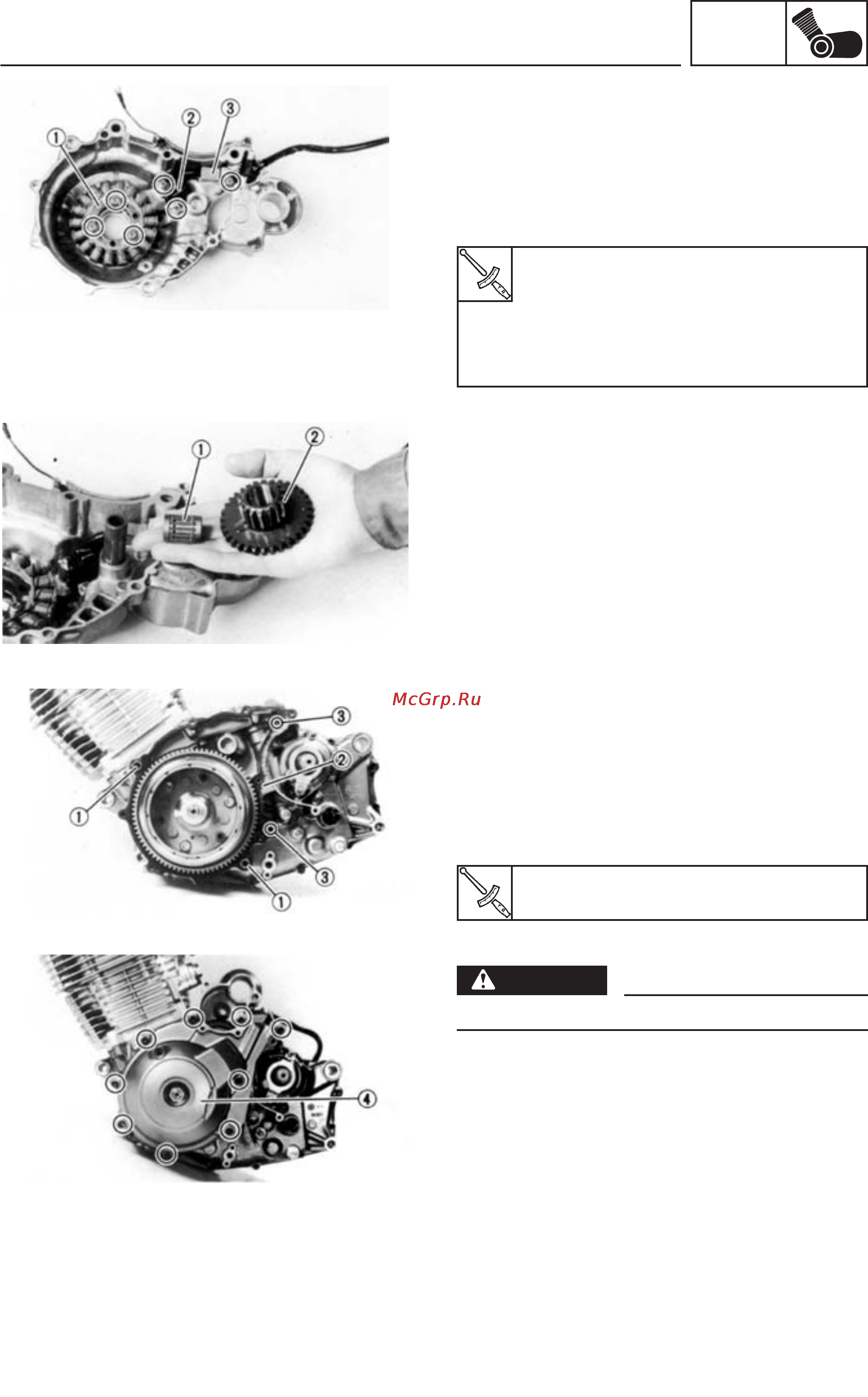

ENGINE ASSEMBLY AND SETTING
5-74
ENG
STARTER NEUTRAL GEAR AND CRANKCASE
COVER (L))
1. Install:
•
Stator winding (1)
•
Pick-up coil (2)
•
Cable clamp (3)
2. Install:
•
Bearing (1)
•
Intermediate starter gear 2 (2)
Screws (stator and coil):
7 Nm (0.7 mkg)
Use LOCTITE ®
Screw (cable clamp):
7 Nm (0.7 mkg)
3. Install:
•
Centring pin (1)
•
Gasket (2)
•
O-Ring (3)
•
Crankcase cover (L) (4)
•
Plugs
Bolt (crankcase cover):
10 Nm (1.0 mkg)
WARNING
Always use a new gasket.
