Yamaha TT600RE (2004) [180/382] Steering

CHAS

4-65

STEERING

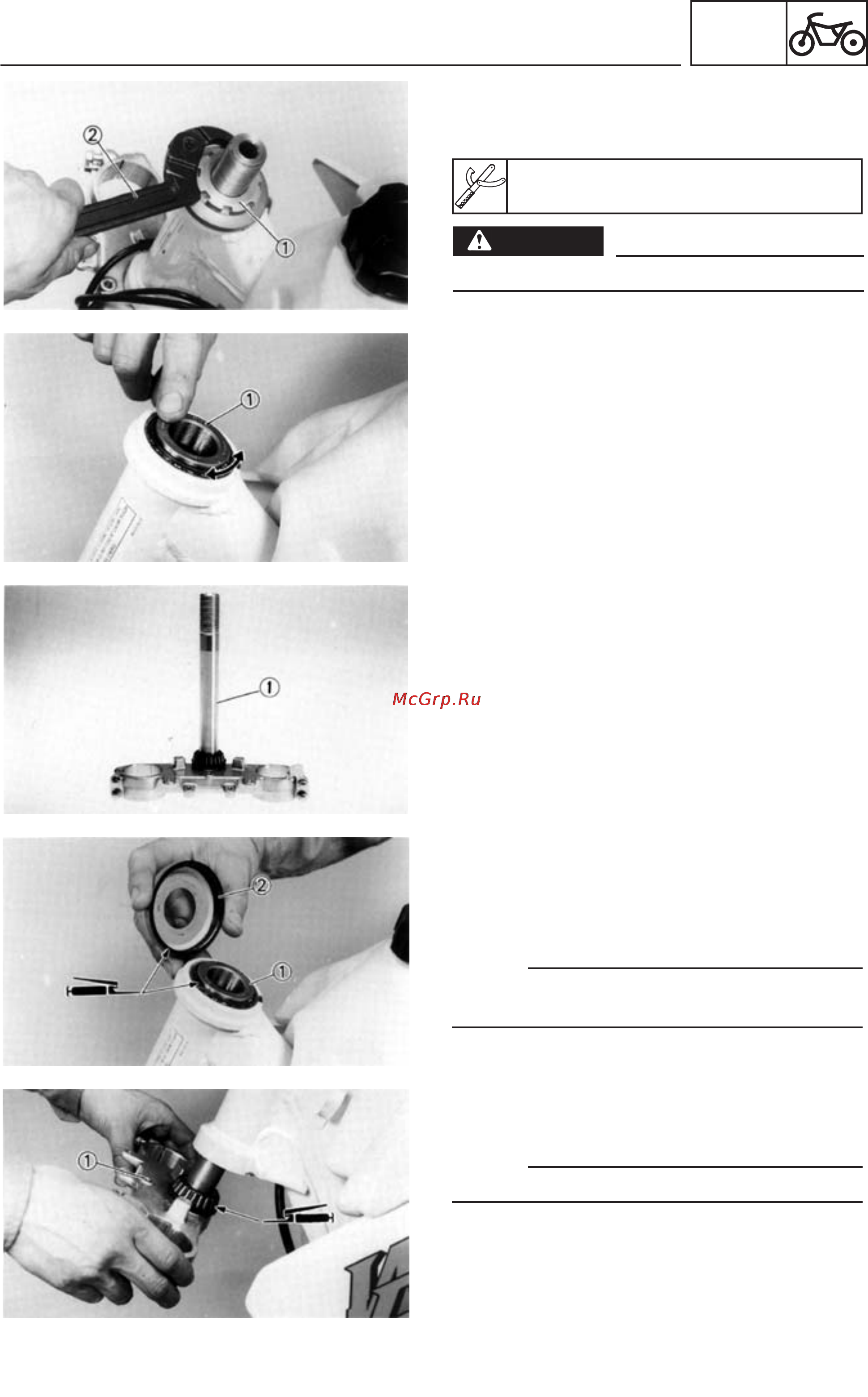

Ring nut wrench (2):

90890-01268

7. Remove:

•

Ring nut (lower) (1)

•

Use the ring nut wrench (2)

WARNING

Support the steering axle to prevent it falling.

STEERING INSPECTION

1. Wash the bearings in solvent.

2. Inspect:

•

Bearing (upper and lower) (1)

Corrosion/Damage ➔ Replace races and

bearing.

Install the bearings in the races. Spin the

bearing by hand.

If the bearing rises or fails to run freely in

the race, replace bearing and race.

3. Inspect:

•

Steering axle (1)

Bend/Damage ➔ Replace.

STEERING INSTALLATION

1. Install:

•

Bearing (1)

•

Ball race cover (2)

NOTE:

Apply lithium soap-base grease to the bearing

and ball race cover lip.

2. Install:

•

Lower bracket (1)

NOTE:

Apply lithium soap-base grease to the bearing.
