ELEC
LIGHT SYSTEM
7-47

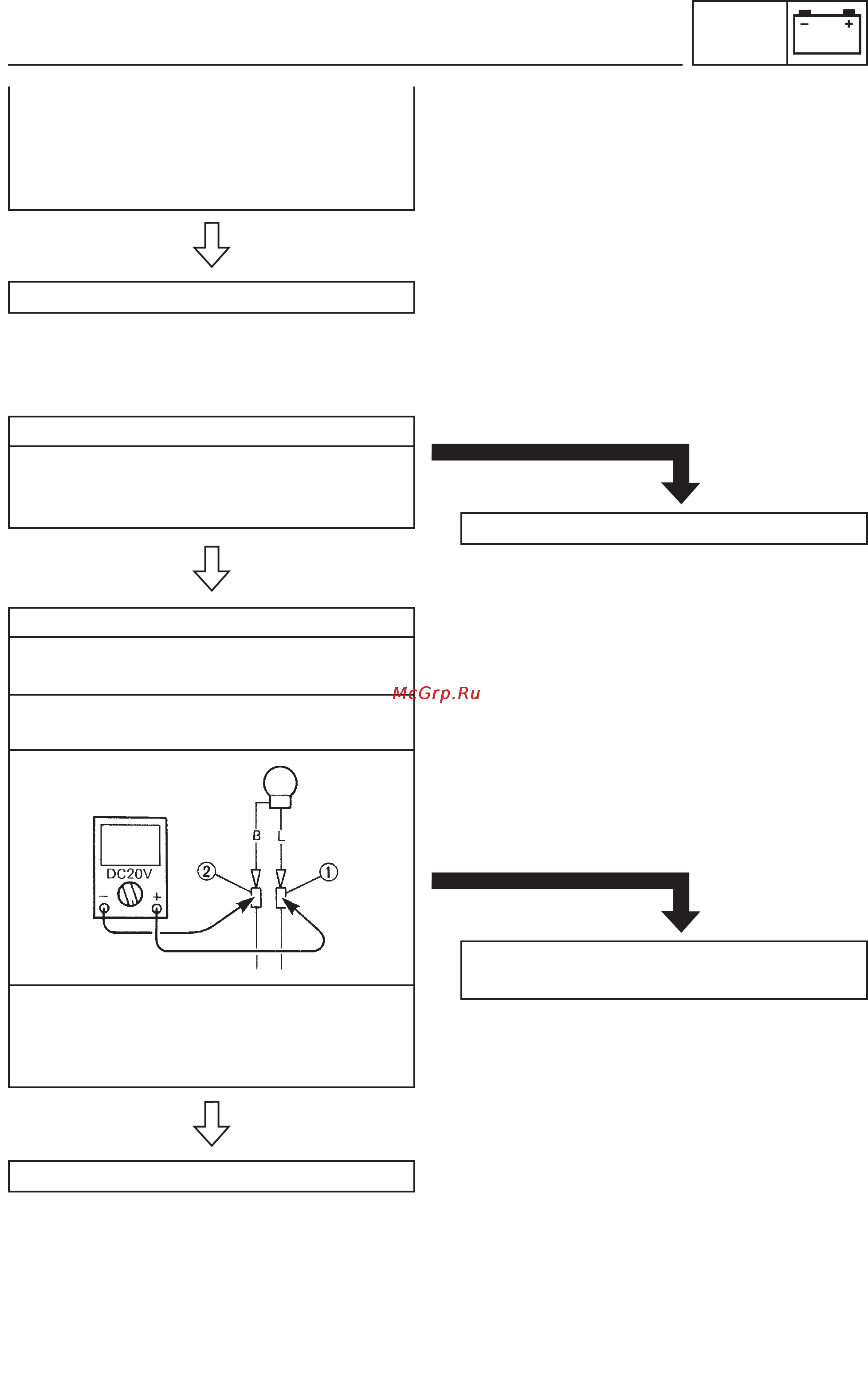

CONTINUITY
DISCONTINUITY
Replace the bulb and/or the bulbholder.
1. Bulb and bulbholder.
•
Check the continuity of the bulb and bulb-
holder.
Refer to “BULB INSPECTION” section.
2. Voltage.
•
Connect the pocket tester (DC 20V) to the
bulbholder connector.
Tester terminal (+) ➔ Blue cable (1)
Tester terminal (–) ➔ Black cable (2)
•
Turn the main switch to ON.
•
Check the voltage (12V) on the “Blue”
cable of the bulbholder connector.
OUT OF SPECIFICATION
The circuit from the main switch to the bulbhol-
der connector is defective. Repair.
IN COMPLIANCE WITH
SPECIFICATIONS (12V)
•
Turn the main switch to ON.
•
Turn the lights switch to “LO” or “HI”.
•
Check the voltage (12V) on the “Green”
and “Yellow” cable at the bulbholder ter-
minals.
The circuit is efficient.
IN COMPLIANCE WITH
SPECIFICATIONS (12V)
The circuit is efficient.
2. The instrument light and/or the parking indica-
tor light fails to turn on.
