Yamaha TT600RE (2004) [221/382] Engine disassembly

ENG

ENGINE DISASSEMBLY

5-17

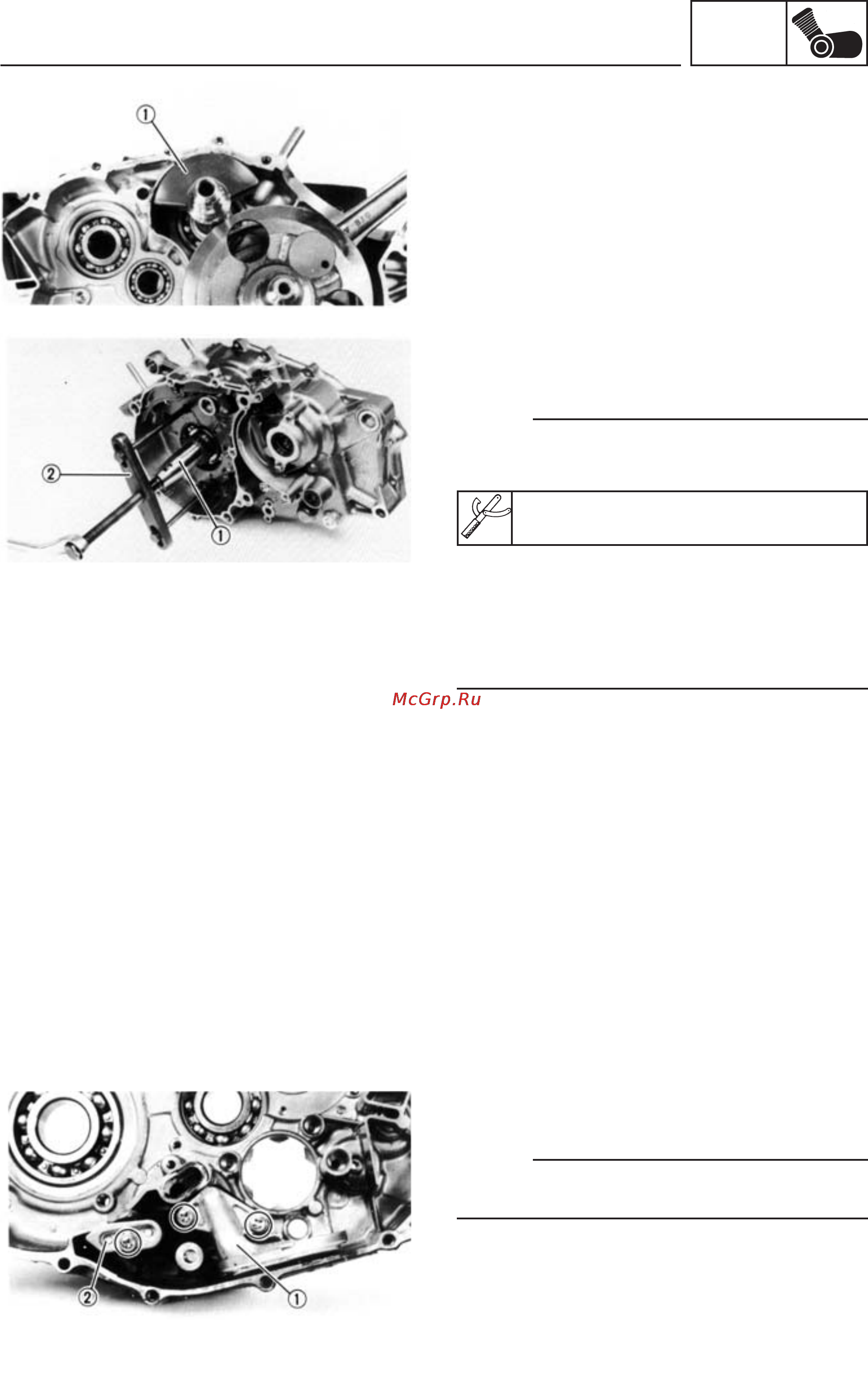

BALANCER SHAFT AND CRANKSHAFT

1. Remove:

•

Balancer shaft (1)

2. Remove:

•

Crankshaft (1)

NOTE:

•

Remove the crankshaft by using the

crankcase separating tool (2).

Crankcase separating tool:

P/N. 90890-01135

•

Tighten the separating tool bolts, making sure

that the tool body is parallel with the engine

crankcase. If necessary, a screw may be

backed out slightly to level tool body.

OIL STRAINER

NOTE:

It is advisable to replace the oil strainer every time

the engine is disassembled.

1. Remove:

•

Oil strainer (1)

•

Oil passage cover (2)

•

Gasket
