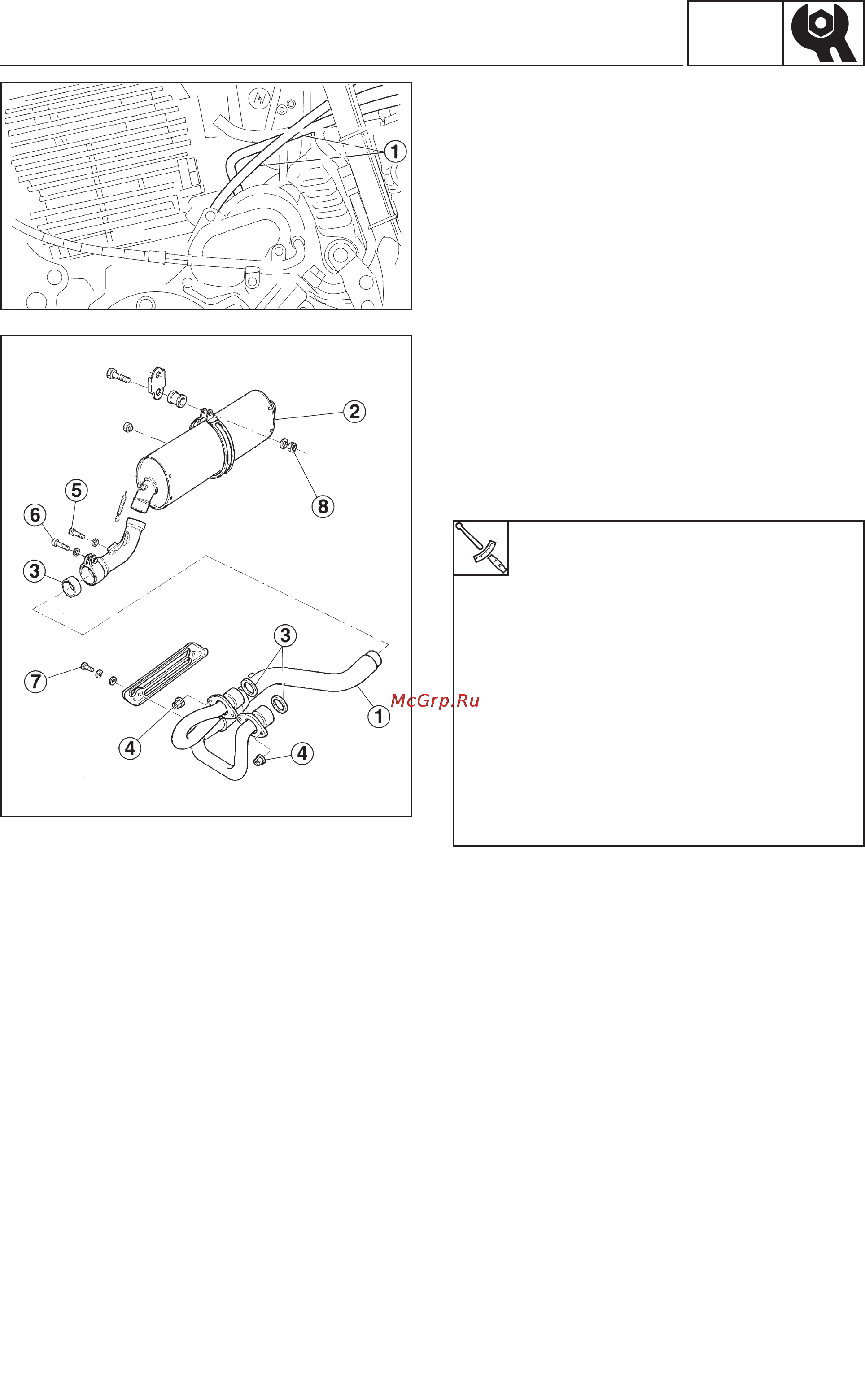

INSP
ADJ
CRANCKCASE VENTILATION HOSE INSPECTION/
EXHAUST SYSTEM INSPECTION
3-29
CRANCKCASE VENTILATION HOSE
INSPECTION
1. Inspect:
•
Crankcase ventilation hoses (1)
Cracked/Damaged ➔ Replace.
EXHAUST SYSTEM INSPECTION
1. Inspect:
•
Exhaust pipe (1)
•
Muffer (2)
Cracks/Damage ➔ Replace.
•
Gaskets (3)
Exhaust gas leakage ➔ Replace.
Nut (4) (exhaust pipe):
10 Nm (1.0 mkg)
Screw (5) (muffler):
23 Nm (2.3 mkg)
Bolt (6) (flange):
23 Nm (2.3 mkg)
(apply molybdenum disulfide
grease)
Screw (7) (protection):
7 Nm (0.7 mkg)
Use LOCTITE
®
.
Nut (8) (muffler):
23 Nm (2.3 mkg)
