ELEC
IGNITION SYSTEM
7-15
IN COMPLIANCE
WITH SPECIFICATIONS

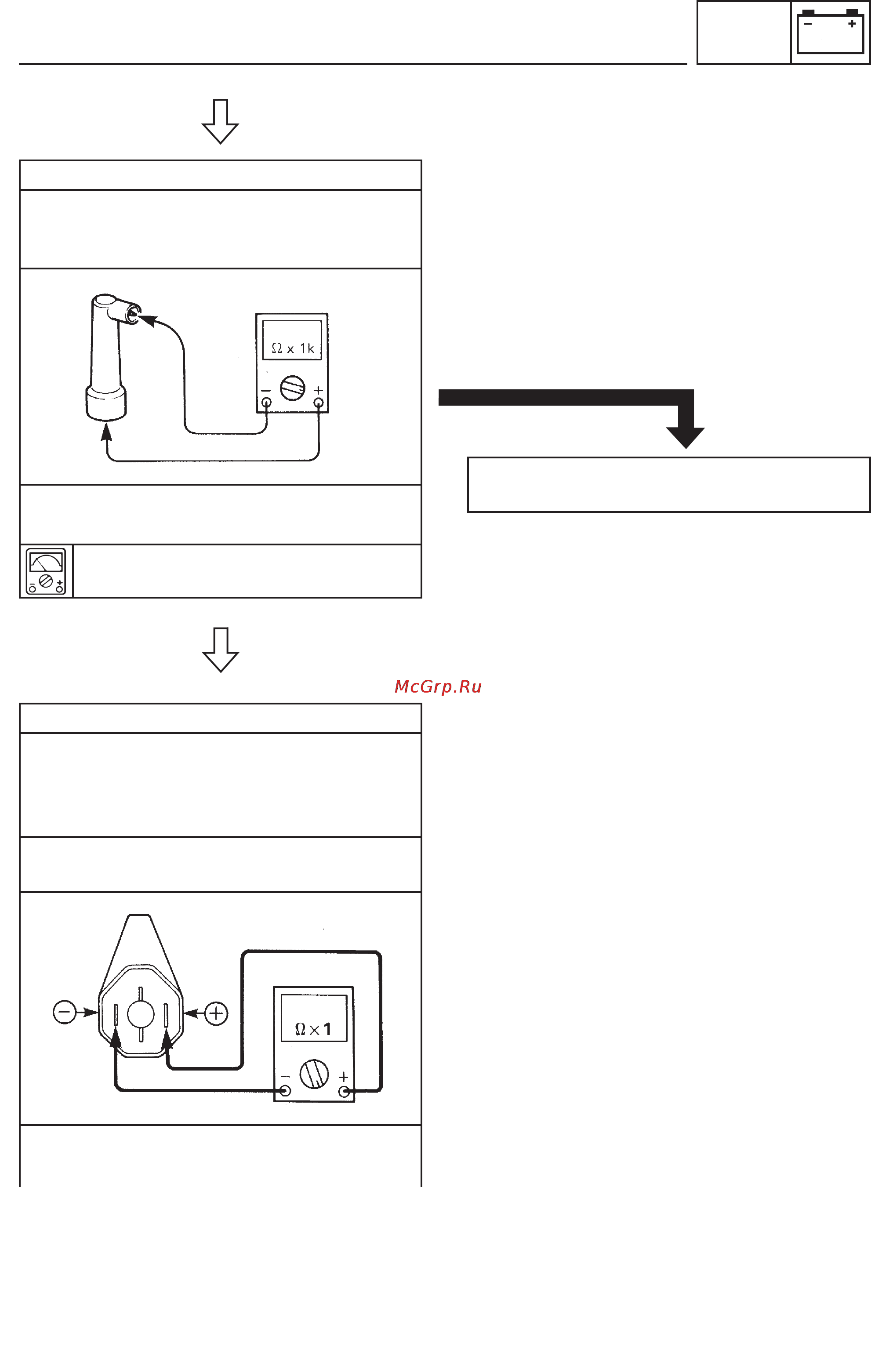

5. Spark plug cap resistance.
•
Remove the spark plug cap.
•
Connect the pocket tester (Ω x 1k) to the
spark plug cap.
•
Check that the spark plug cap has the
specified resistance.
OUT OF SPECIFICATION
The spark plug cap is defective.
Replace.
Resistance of spark plug cap:
10 kΩ at 20°C (68°F)
6. Ignition winding resistance.
•
Disconnect the ignition coil cables from
the wire harness.
•
Connect the pocket tester (Ω x 1) to the
ignition coil.
Tester terminal (+) ➔ Pole (+)
Tester terminal (–) ➔ Pole (–)
•
Check that the primary coil has the speci-
fied resistance.
*
