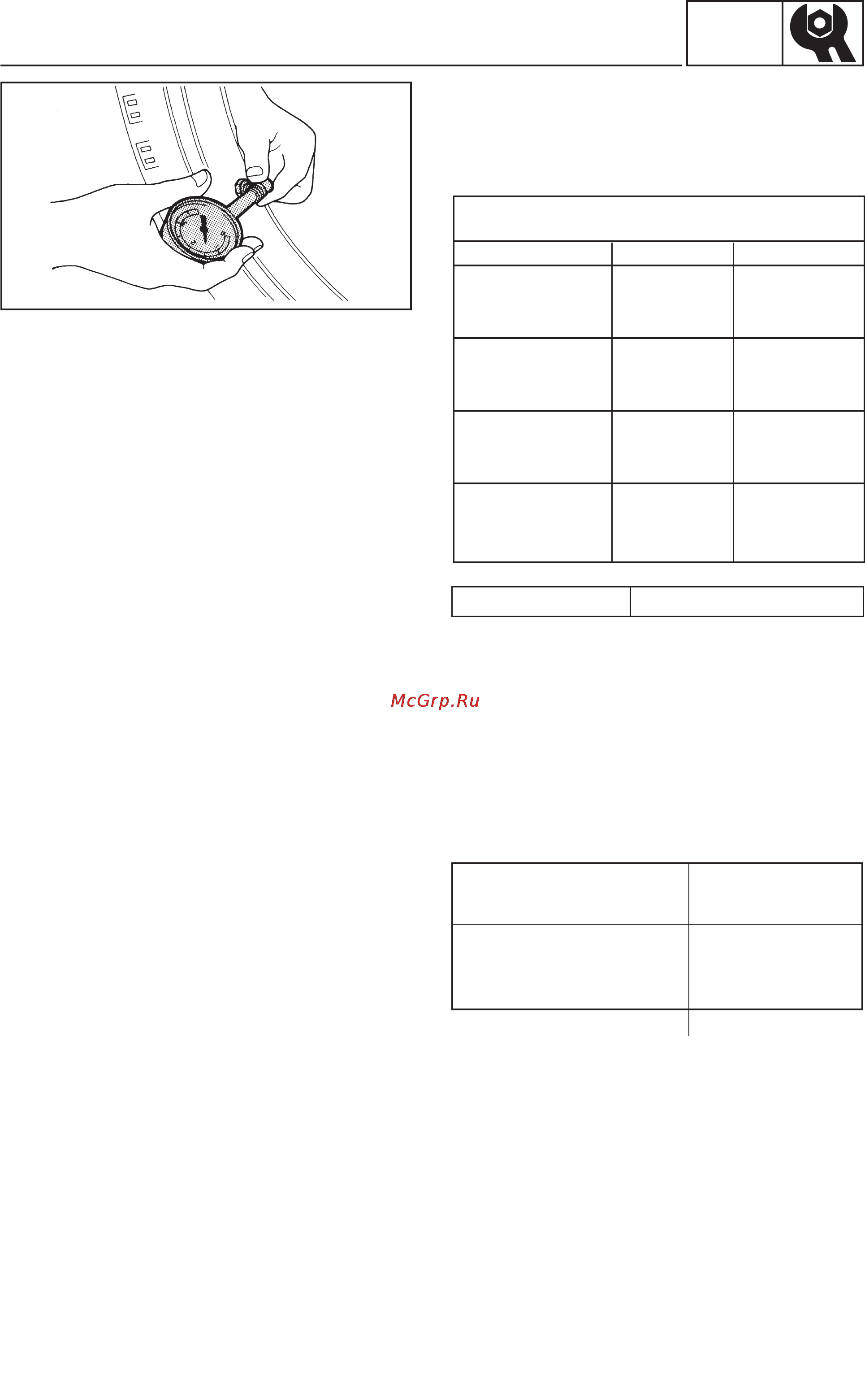

TYRE INSPECTION
3-42
INSP
ADJ
1. Check:
•
Tyre pressure
Out of specification ➔ Adjust.
Tire air pressure
(measured on cold tires)
Load* Front Rear
200 kPa 220 kPa
Up to 90 kg (2.00 kgf/cm
2
, (2.20 kgf/cm
2
,
2.00 bar) 2.20 bar)
210 kPa 240 kPa
90 kg-maximum (2.10 kgf/cm
2
, (2.40 kgf/cm
2
,
2.10 bar) 2.40 bar)
150 kPa 160 kPa
Off-road riding (1.50 kgf/cm
2
, (1.60 kgf/cm
2
,
1.50 bar) 1.60 bar)
High-speed
210 kPa 240 kPa
riding
(2.10 kgf/cm
2
, (2.40 kgf/cm
2
2.10 bar) 2.40 bar)
Maximum load* 180 kg
* Total weight of rider, passenger, cargo and ac-
cessories.
2. Adjust:
•
Air pressure
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
Adjustment:
•
Remove the valve cap.
Use an air pump or Increase air
compressed air pistol. pressure
Eliminate air by Air pressure
pressing valve tube diminishes
stem
•
Install valve caps securely.
3. Inspect:
•
Tyre surface
Wear/Damage ➔ Replace.
