Yamaha TT600RE (2004) [132/382] Front brake
![Yamaha TT600RE (2004) [132/382] Front brake](/views2/1121411/page132/bg84.png)
CHAS

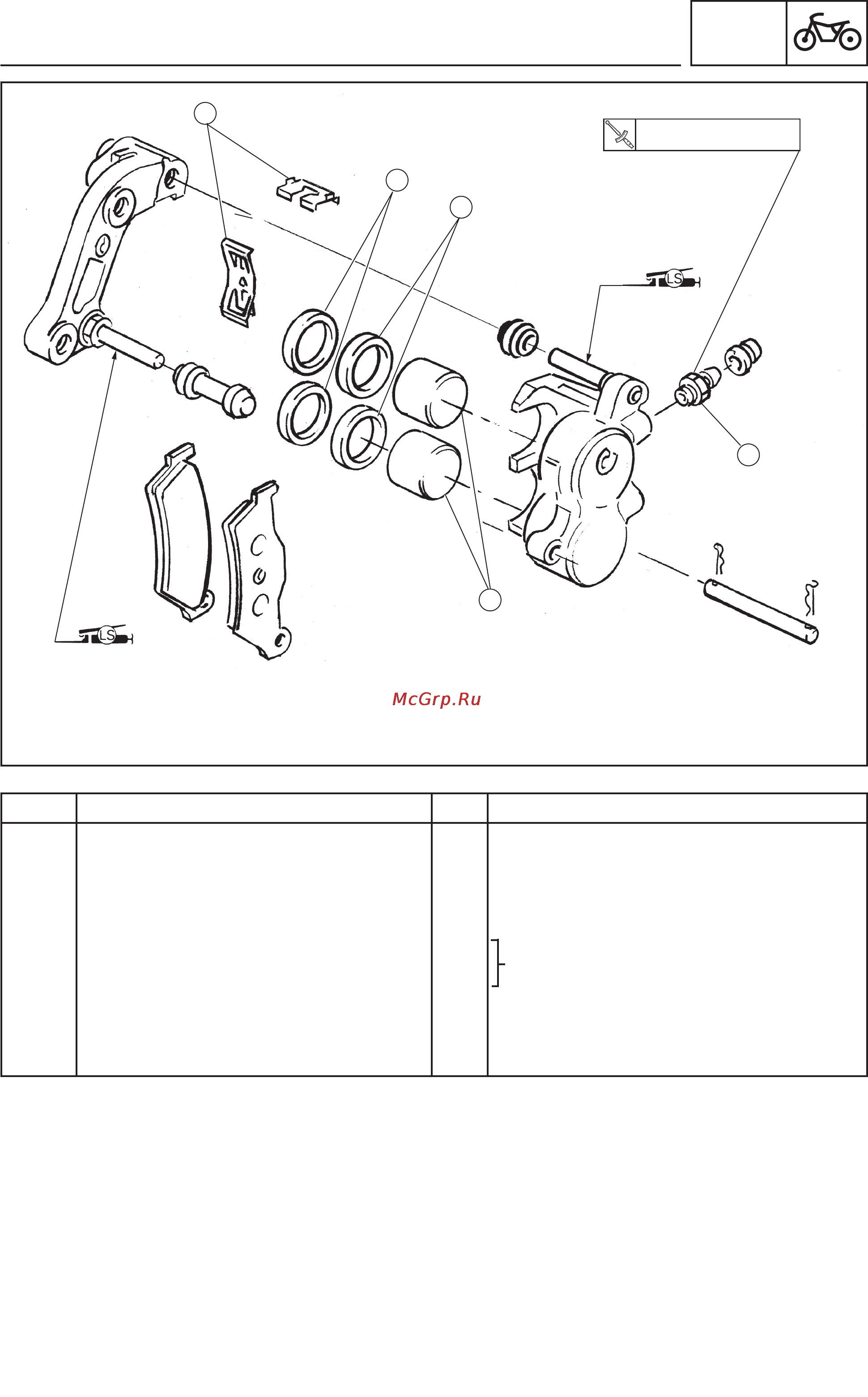

FRONT BRAKE
4-17
Order Job name/Part name Q.ty Remarks
Caliper disassembly Remove the parts in order.
Brake pad Refer to “BRAKE PAD” section.
1 Pad spring 2
2 Caliper piston 2
3 Dust seal 2
Refer to “BRAKE CALIPER DISASSEM-
4 Piston seal 2
BLY/ASSEMBLY” section.
5 Bleed screw 1
Refer the disassembly procedure for as-
sembly.
2
5
14 Nm (1.4 m
•
kg)
3
4
1
