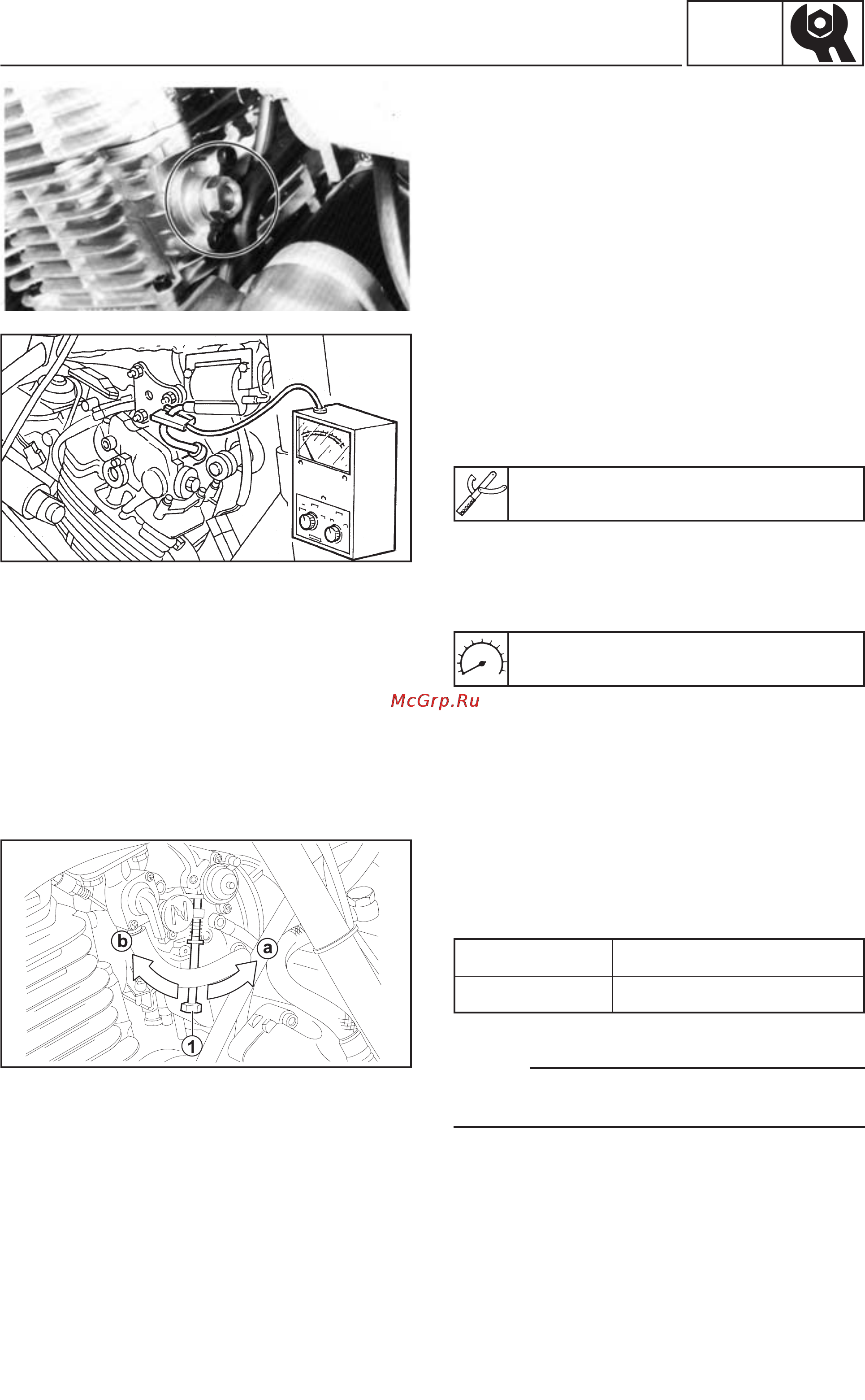

INSP
ADJ
DRIVE CHAIN ADJUSTMENT
IDLE SPEED ADJUSTMENT
3-7
DRIVE CHAIN ADJUSTMENT
The drive chain does not need to be adjusted.
IDLE SPEED ADJUSTMENT
1. Start the engine and let it heat.
2. Connect:
•
The inductive engine speed indicator to
the spark plug cable
Special tool:
P/N. 90890-03113
Engine idle speed:
1,150 ~ 1,450 rpm
3. Check:
•
The engine idle speed.
Out of specification ➔ Adjust.
4. Adjust:
•
Engine idle speed
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
Adjustment:
•
Turn the throttle stop screw (1) either way to
obtain the idle speed required.
Screwing (a) Increases idle speed
Unscrewing (b) Decreases idle speed
NOTE:
After setting the idle speed, adjust the accelerator
cable free play.
5. Disconnect:
•
Inductive engine speed indicator
