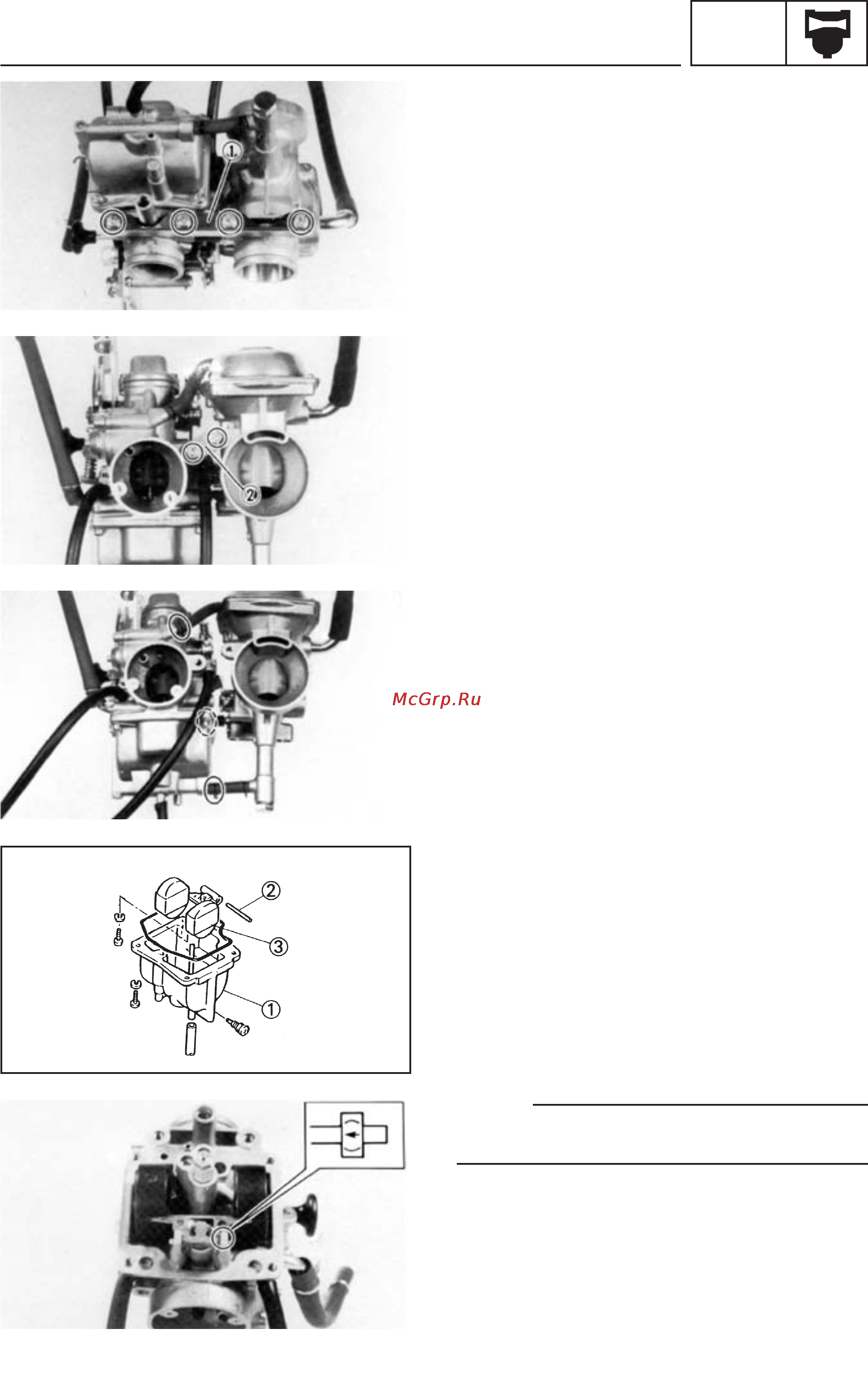

CARBURETOR DISASSEMBLY
6-6
CARB
CARBURETOR DISASSEMBLY
1. Remove:
•
Support plate (1) (front)
•
Support plate (2) (rear)
2. Separate:
•
Primary carburetor
•
Secondary carburetor
Primary carburetor
1. Remove:
•
Float chamber (1)
•
Float pin (2)
•
Float (3)
NOTE:
Remove the float needle in the direction of the
arrow.
