ENGINE DISASSEMBLY
5-10
ENG

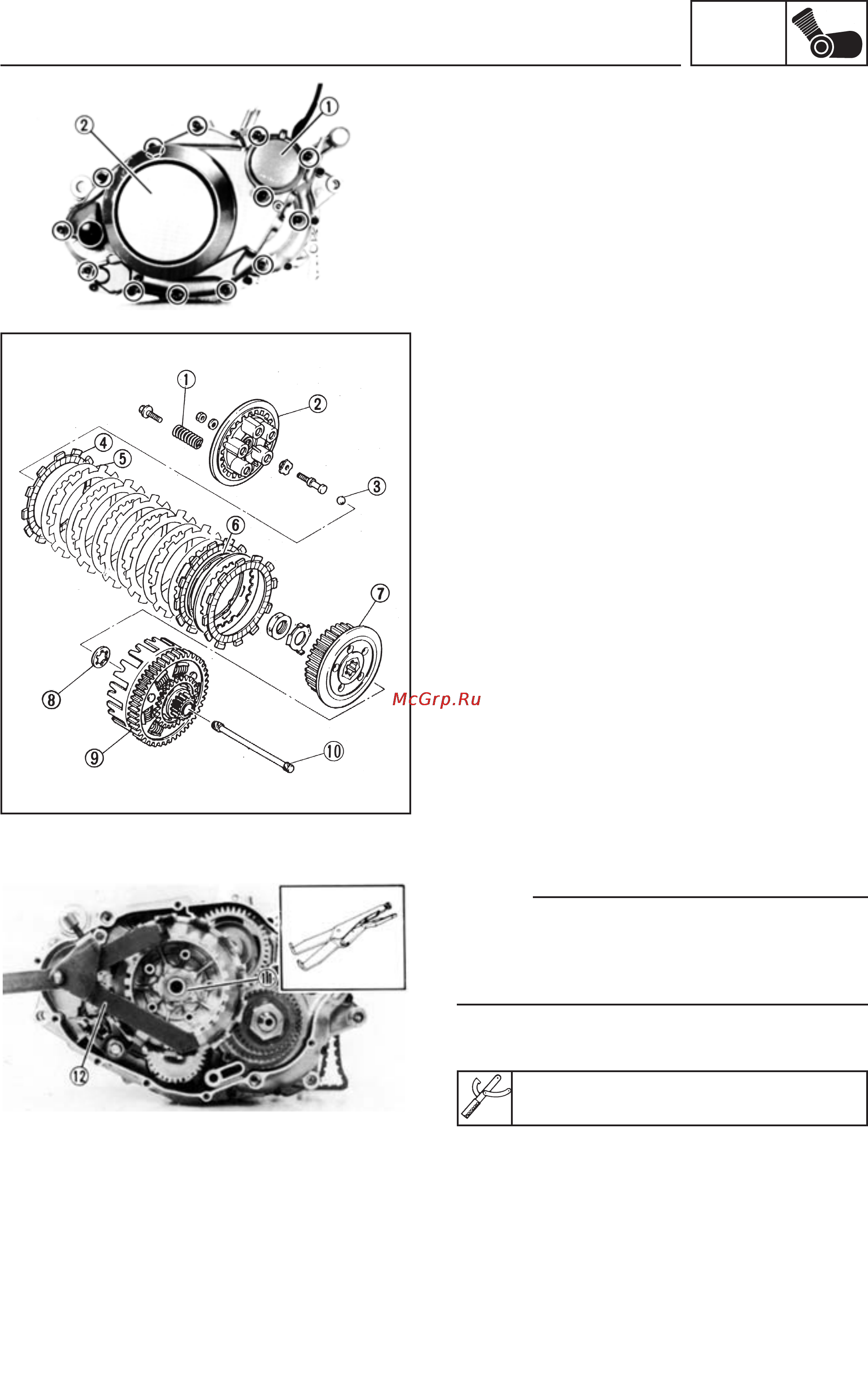

2. Remove:
•
Compression spring (1)
•
Pressure plate (2)
•
Ball (3)
•
Friction plate (4)
•
Clutch plate (5)
•
Clutch boss spring (6)
•
Clutch boss (7)
•
Thrust plate (8)
•
Clutch shroud (9)
•
Push rod (10)
1. Remove:
•
Engine oil delivery hose screw
•
Copper washer
•
Oil filter cover (1)
•
Oil filter
•
Seal ring and O-Ring
•
Crankcase cover (2) (R)
NOTE:
•
Before loosening the nut (11) (clutch shroud),
straighten the washer lock tab.
•
To loosen the nut (clutch boss), block the
clutch boss using the special tool (12).
Clutch holding tool:
P/N. 90890-04086
