Yamaha TT600RE (2004) [183/382] Steering

STEERING

4-68

CHAS

8. After tightening the nut, check the steering for

smooth movement. If it is not smooth, adjust

by progressively loosening the (lower) ring

nut.

9. Tighten:

•

Pinch bolts (upper and lower bracket)

Pinch bolt (upper bracket):

28 Nm (2.8 mkg)

Pinch bolt (under bracket):

23 Nm (2.3 mkg)

Fitting nut (handle lower holder):

40 Nm (4.0 mkg)

Flange bolt (handlebar holder):

20 Nm (2.0 mkg)

NOTE:

Always tighten the lower pinch bolt (to the pre-

scribed torque) and then the upper one (to the

prescribed torque) and then retighten the lower

one (to the prescribed torque).

Tighten the pinch bolt to specified torque. If

torqued too much, it may cause malfunction-

ing of the front fork.

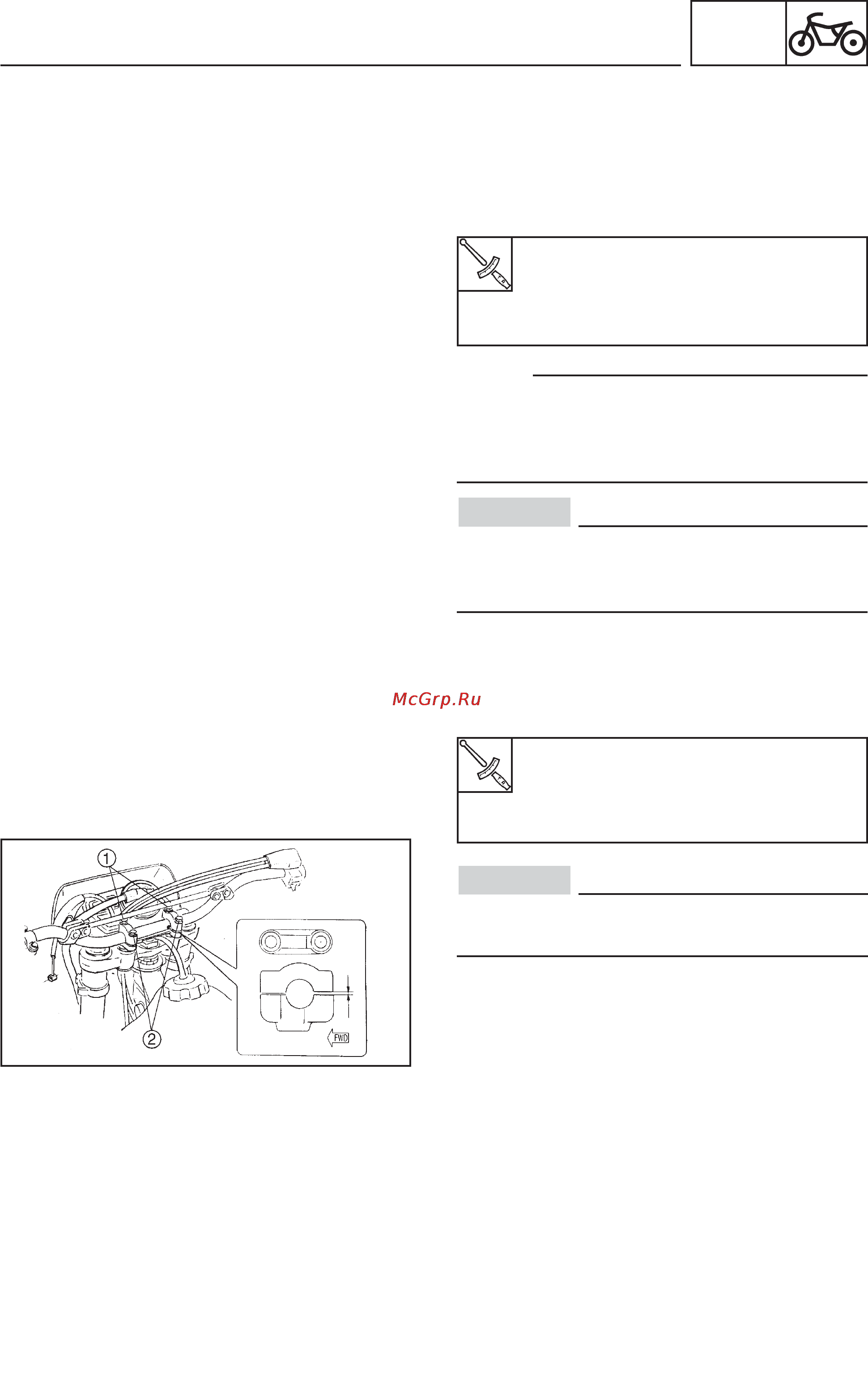

10. Install:

•

Handlebar holder

•

Handlebar

•

Handlebar upper holder

CAUTION:

First tighten the front bolt on the handlebar

holder, then tighten the rear bolt.

CAUTION:
