CHARGING SYSTEM
7-38
ELEC

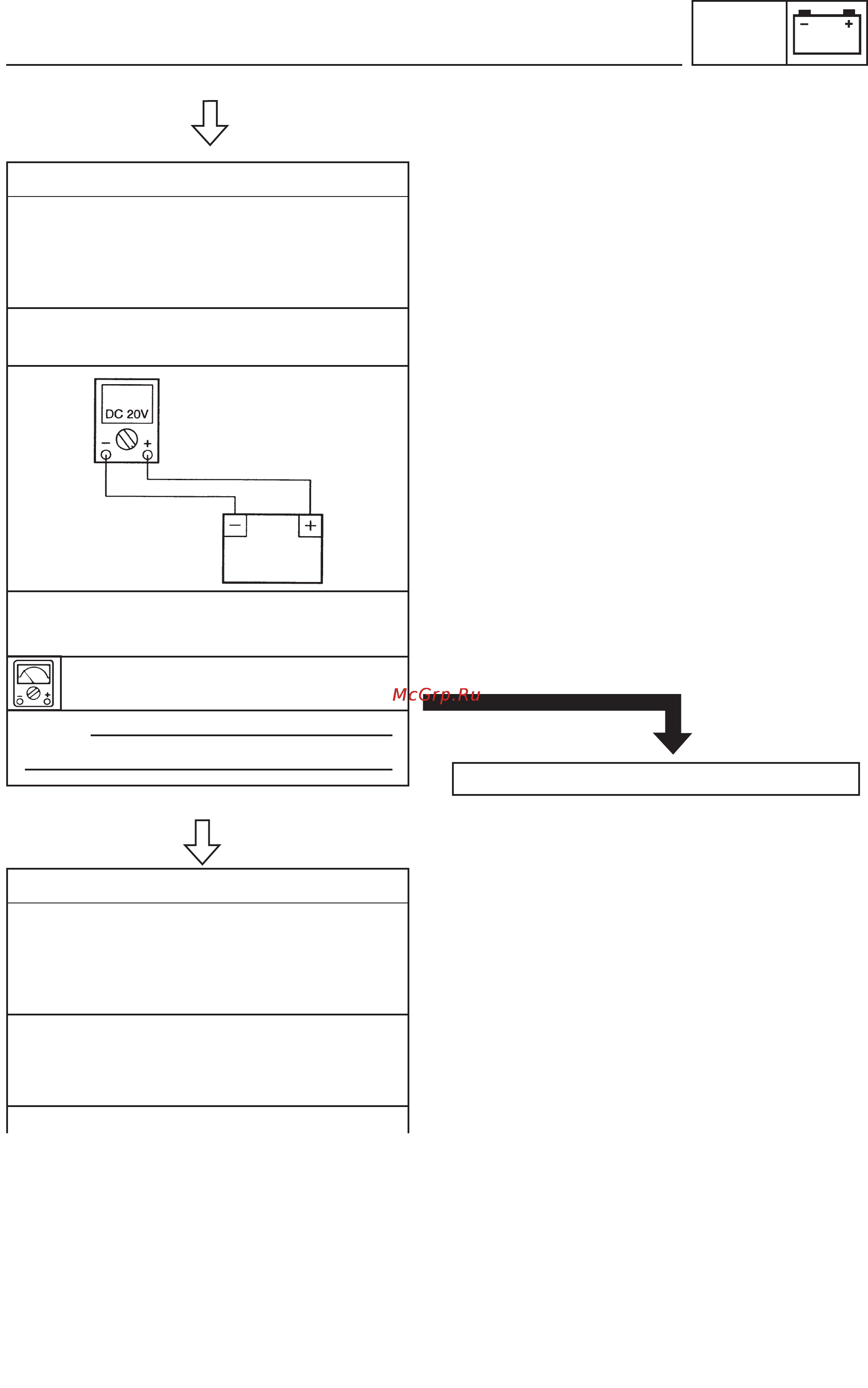

3. Charging voltage
•
Connect the inductive rev counter to the
spark plug cable.
•
Connect the pocket tester (DC 20V) to the
battery, as shown.
Tester terminal (+) ➔ Battery terminal (+)
Tester terminal (-) ➔ Battery terminal (-)
•
Start the engine and rev to about 5,000 rpm.
•
Check the charging voltage.
Charging voltage:
14.0V at 5,000 rpm
4. Stator coil resistance.
•
Disconnect the AC generator connector
from the harness.
•
Connect the pocket tester (Ω x 1) to the sta-
tor coils.
Stator coils (1)
Tester terminal (+) ➔ White cable (1)
Tester terminal (-) ➔ White cable (2))
*
NOTE:
Use a fully charged battery.
OUT OF SPECIFICATIONS
IN COMPLIANCE WITH
SPECIFICATIONS
Replace the battery.
