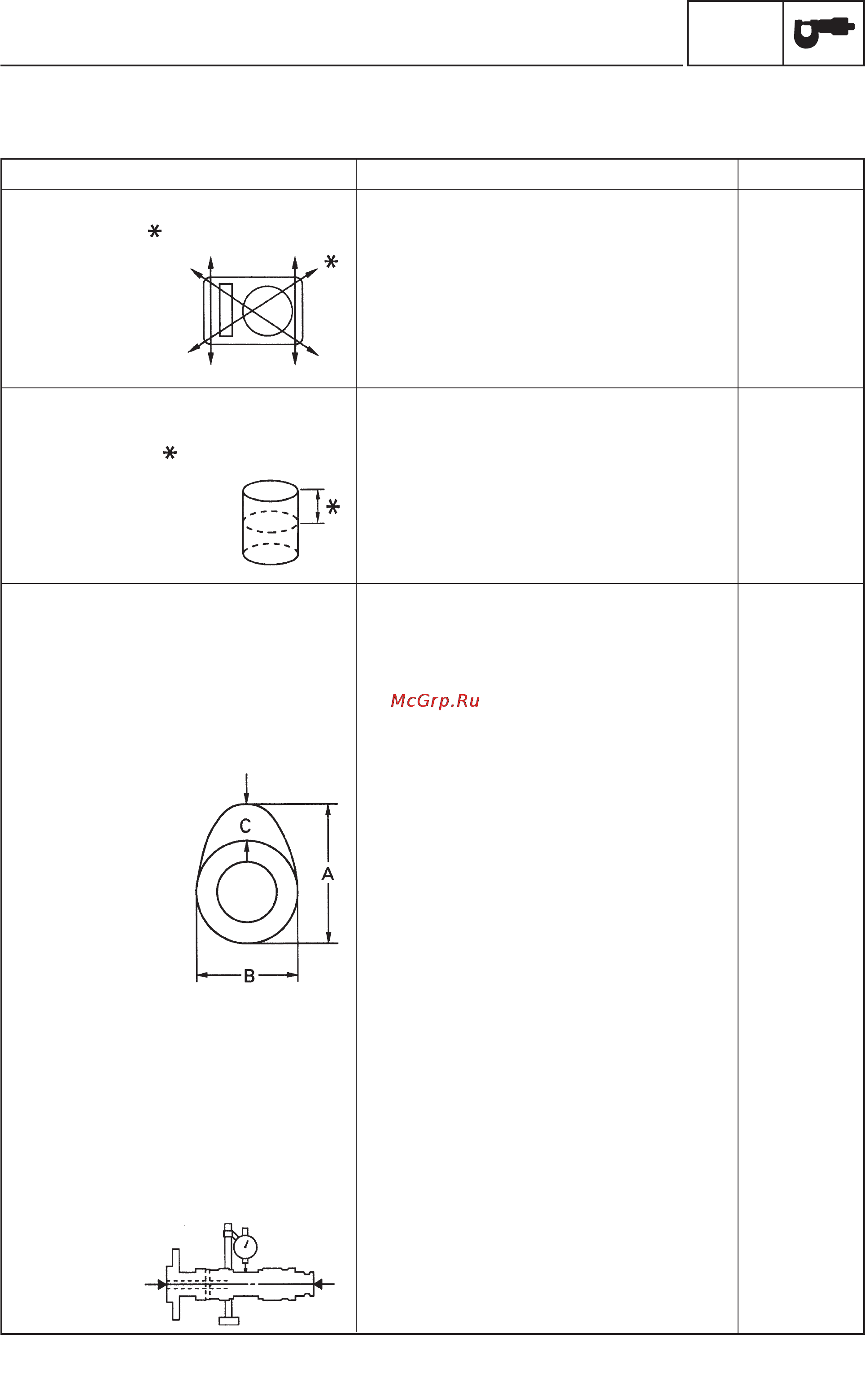

SPEC
MAINTENANCE SPECIFICATIONS
2-4
MAINTENANCE SPECIFICATIONS
ENGINE
Item Standard Limit
Cylinder head
Max. warpage ••• 0.03 mm
Cylinder
Bore 94.970 - 95.020 mm 95.10 mm
Measuring point 50 mm •••
Camshaft
Drive system Chain drive (left)
Camshaft cap inside diameter 23.000 - 23.021 mm •••
Camshaft journal diameter 22.967 - 22.980 mm •••
Camshaft-journal-to-camshaft-cap
clearance 0.020 - 0.054 mm •••
Camshaft lobe dimensions:
Intake-measurement A 36.470 - 36.570 mm •••
Intake-measurement B 30.060 - 30.160 mm •••
Intake-measurement C 6.41 mm •••
Exhaust-measurement A 36.620 - 36.720 mm •••
Exhaust-measurement B 30.110 - 30.210 mm •••
Exhaust-measurement C 6.51 mm •••
Max. camshaft runout ••• 0.030 mm
