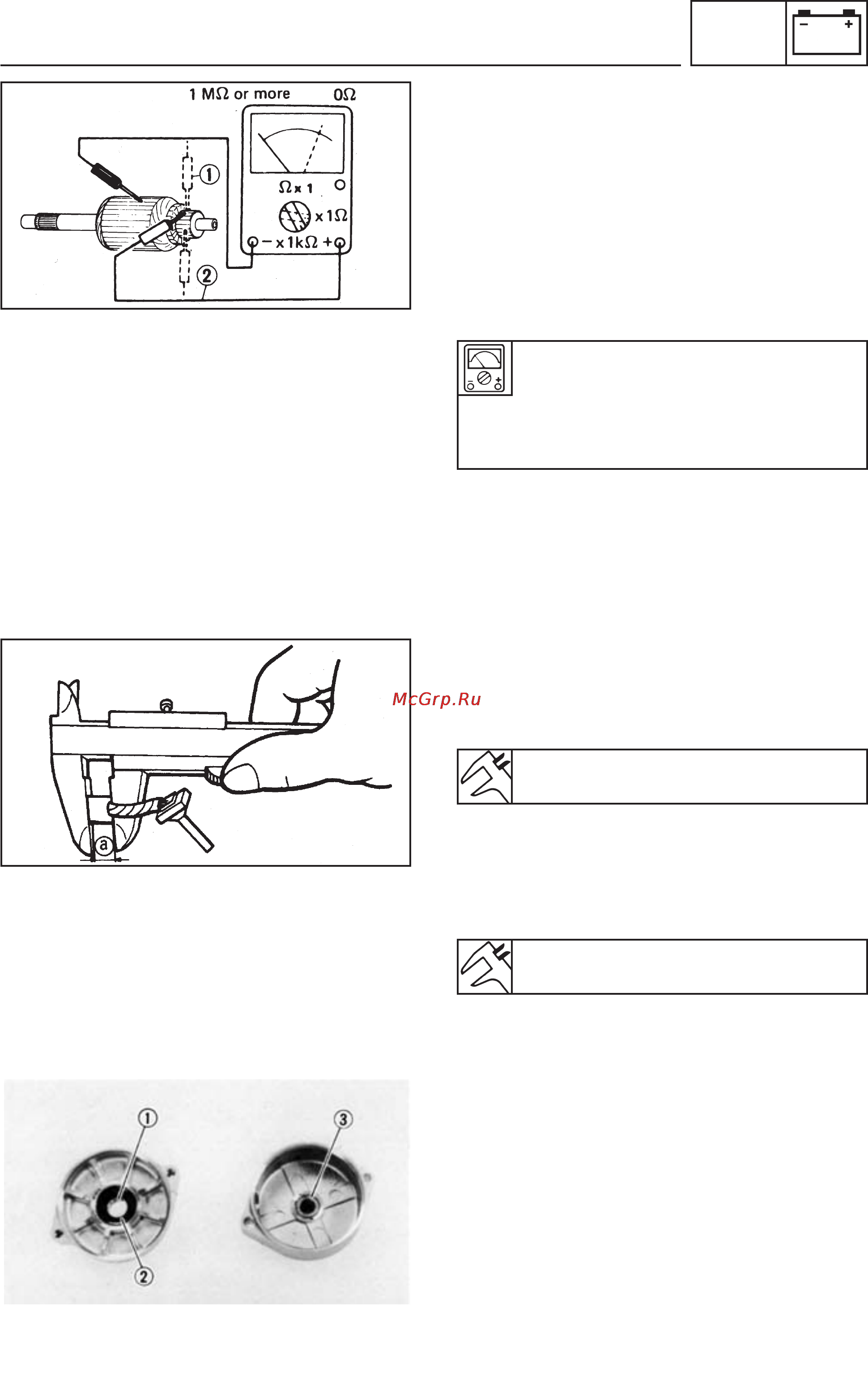

ELECTRICAL STARTING SYSTEM
7-32
ELEC
4. Inspect:
•
Armature coils (insulation/continuity).
Out of specification ➔ Replace the
motor.
5. Measure:
•
Brush lenght
Out of specification ➔ Replace all brus-
hes at once.
6. Inspect:
•
Brush spring strength
Worn out ➔ Replace all springs at once.
7. Inspect:
•
Bearings (1)
•
Oil seal (2)
•
O-Rings
•
Bush (3)
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
How to inspect the excitation coils:
•
Connect the pocket tester and check
continuity (1) and insulation (2).
•
Check the armature resistance:
•
If the resistance is not correct, replace
the starter motor.
Armature coil resistance:
Continuity check (1):
0 Ω at 20°C (68°F)
Insulation check (2):
Over 1 MΩ at 20°C (68°F)
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
Brush spring strength:
8.82 N (899 gf)
Brush lenght limit (a):
5.0 mm
