Yamaha TT600RE (2004) [242/382] Inspection and repair

•

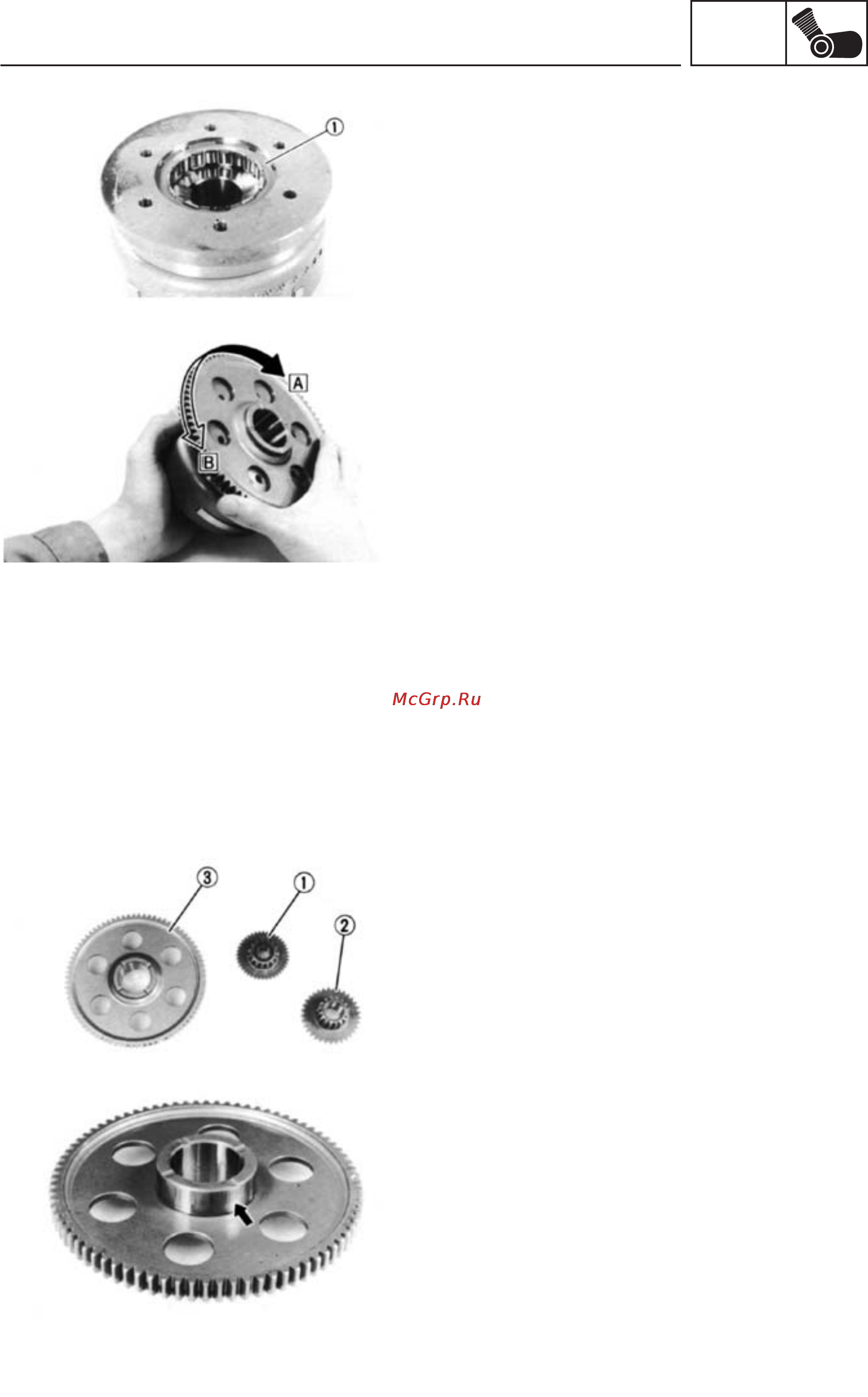

Install the starter rim on the gear and hold

the gear firm.

•

When turning the gear rim in a clockwise

direction (A), the gear and rim must be

meshed. Otherwise, the gear is faulty and

must be replaced.

•

When the gear rim is turned in a anti-

clockwise direction (B), it must turn freely.

Otherwise, the gear is faulty and must be

replaced.

INSPECTION AND REPAIR

5-38

ENG

STARTER TRANSMISSION

1. Check:

•

Starter clutch functioning (1).

Turn the clutch in the direction indicated

by the arrow.

Irregular functioning/Damage ➔ Replace

the clutch.

▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼

▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲

2. Inspect:

•

Starter neutral gear teeth (1)

•

Starter neutral gear teeth (2)

•

Starter rim teeth (3)

Burrs/Shavings/Roughness/Wear ➔

Replace.

3. Inspect:

•

Starter rim (contact surfaces)

Pitting/Wear/Damage ➔ Replace.
