Yamaha TT600RE (2004) [59/382] Insp adj
![Yamaha TT600RE (2004) [59/382] Insp adj](/views2/1121411/page59/bg3b.png)

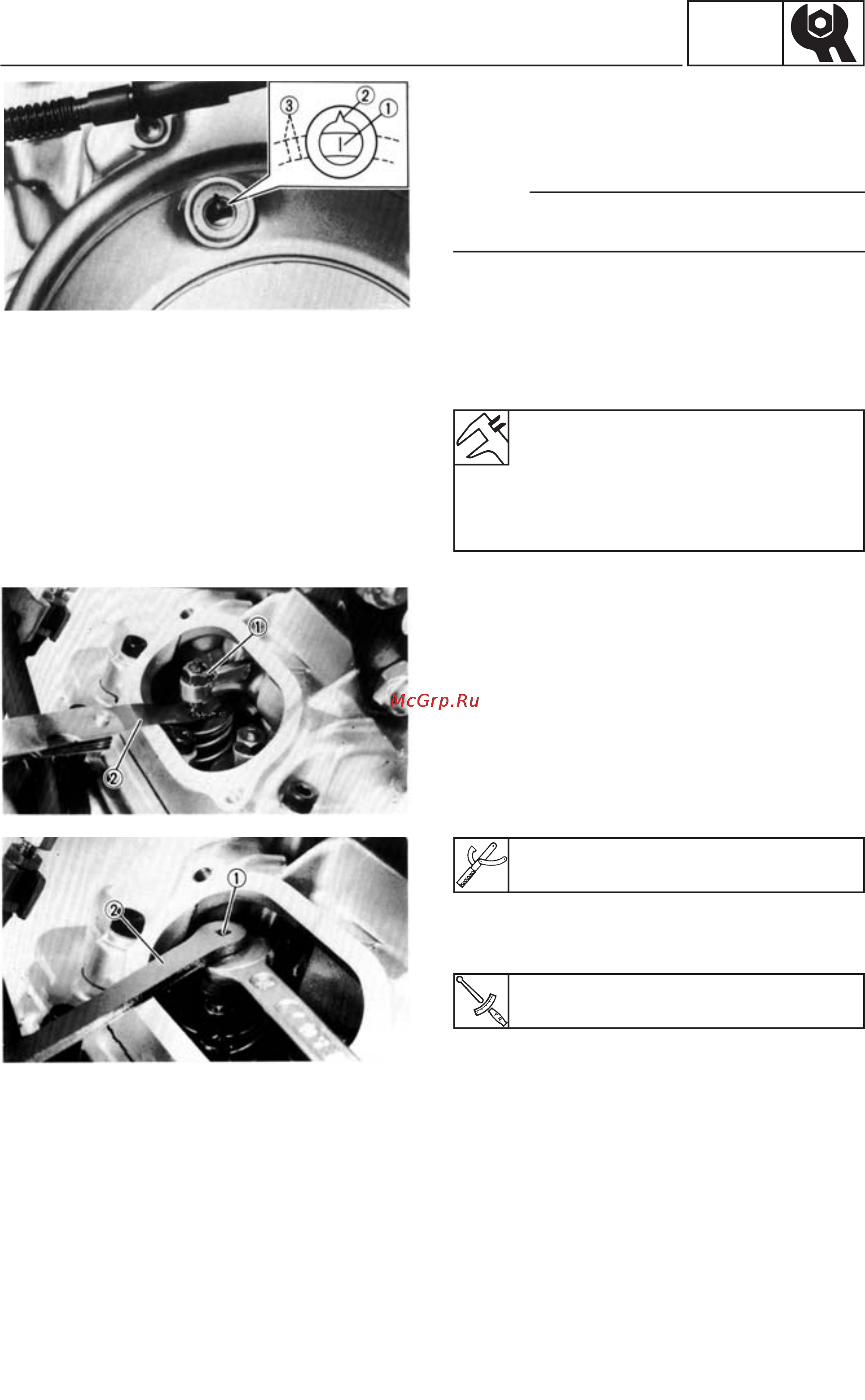

INSP
ADJ
VALVE CLEARANCE ADJUSTMENT
3-5
6. Align:
•
Reference mark “T” on the flywheel (1)
with the fixed reference mark on the
crankcase (2).
NOTE:
Check that the piston is under compression at top
dead centre (T.D.C.).
(3) Ignition timing reference mark
7. Check:
•
Valve clearance
Out of specification ➔ Adjust.
Valve clearance (cold):
Intake:
0.05 ~ 0.10 mm
Exhaust:
0.12 ~ 0.17 mm
8. Adjust:
•
Valve clearance
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
Adjustment:
•
Loosen the lock nut (1).
•
Fit a thickness gauge (2) between the rocker
arm and the valve stem.
•
Turn the adjuster (1) clockwise or anticlock-
wise using the special tool (2) to obtain the
required clearance.
Special tool:
P/N. 90890-01311
•
Holding the adjuster firmly in place, lock tight-
en lock nut.
Lock nut:
14 Nm (1.4 mkg)
•
Measure valve clearance.
If the clearance is incorrect, repeat the previ-
ous stages to achieve the required value.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
