DRIVE CHAIN, DRIVE SPROCKET
AND REAR WHEEL SPROCKET
4-84
CHAS

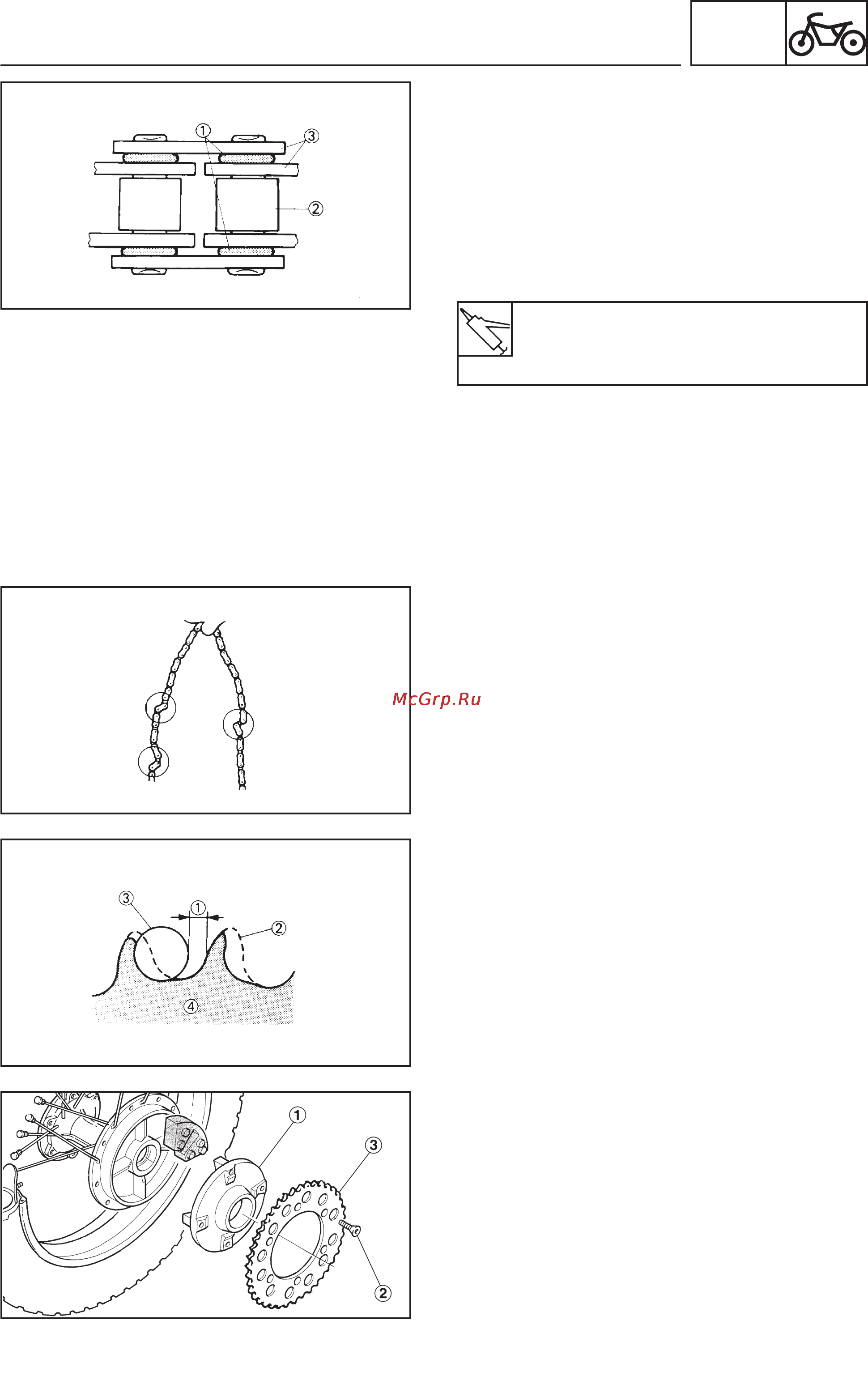

3. Inspect:
•
Seal rings (1) (drive chain)
Damaged ➔ Replace drive chain.
•
Rollers (2)
•
Lateral plates (3)
Damage/Wear ➔ Replace drive chain.
4. Lubricate:
•
Drive chain
Lubricant for drive chain:
SAE 80W/90 engine oil or special
lubricant for O-Ring chains.
5. Inspect:
•
Drive chain
Rigid ➔ Clean and lubricate, replace if
necessary.
6. Inspect:
•
Drive sprocket
•
Rear wheel sprocket
Wear over 1/4 tooth (1) ➔ Replace.
Teeth bent ➔ Replace.
(2) Undamaged tooth profile
(3) Roller
(4) Sprocket
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
How to replace the rear wheel sprocket:
With wheel removed:
1. Remove:
•
Hub (1)
•
Sprocket fastening bolts (2)
•
Rear wheel sprocket (3)
2. Install:
•
New sprocket (3)
•
Sprocket fastening bolts (2)
•
Hub (1)
