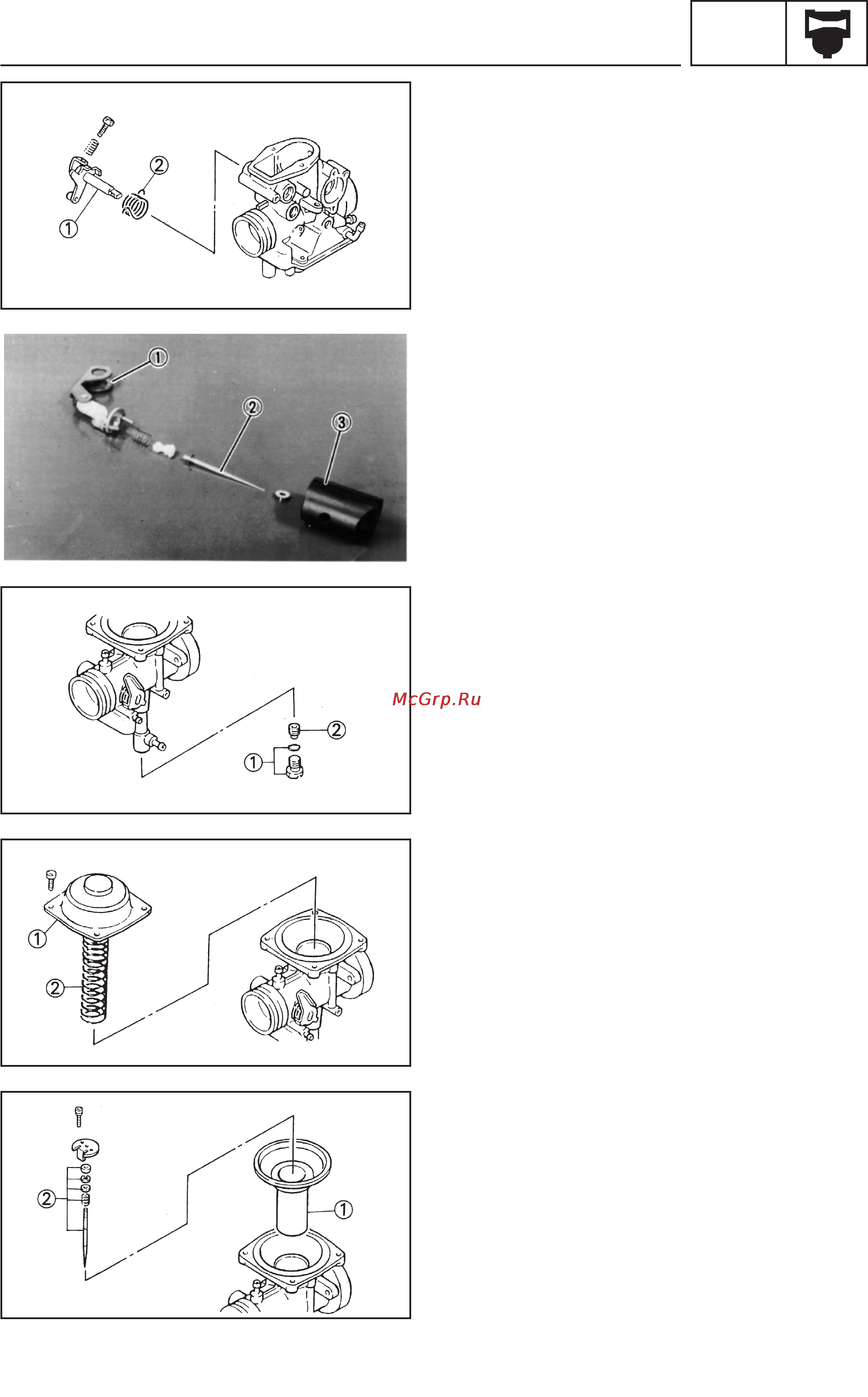

CARBURETOR DISASSEMBLY
6-8
CARB
7. Remove:
•
Throttle shaft (1)
•
Spring (2)
8. Remove:
•
Connecter comp. (1)
•
Needle jet (2)
•
Throttle valve (3)
Secondary carburetor
1. Remove:
•
Drain plug (1)
•
Main jet (2)
2. Remove:
•
Top cover (1)
•
Spring (2)
3. Remove:
•
Diaphragm (1)
•
Needle jet 2 (2)
