Yamaha TT600RE (2004) [171/382] Front fork

FRONT FORK

4-56

CHAS

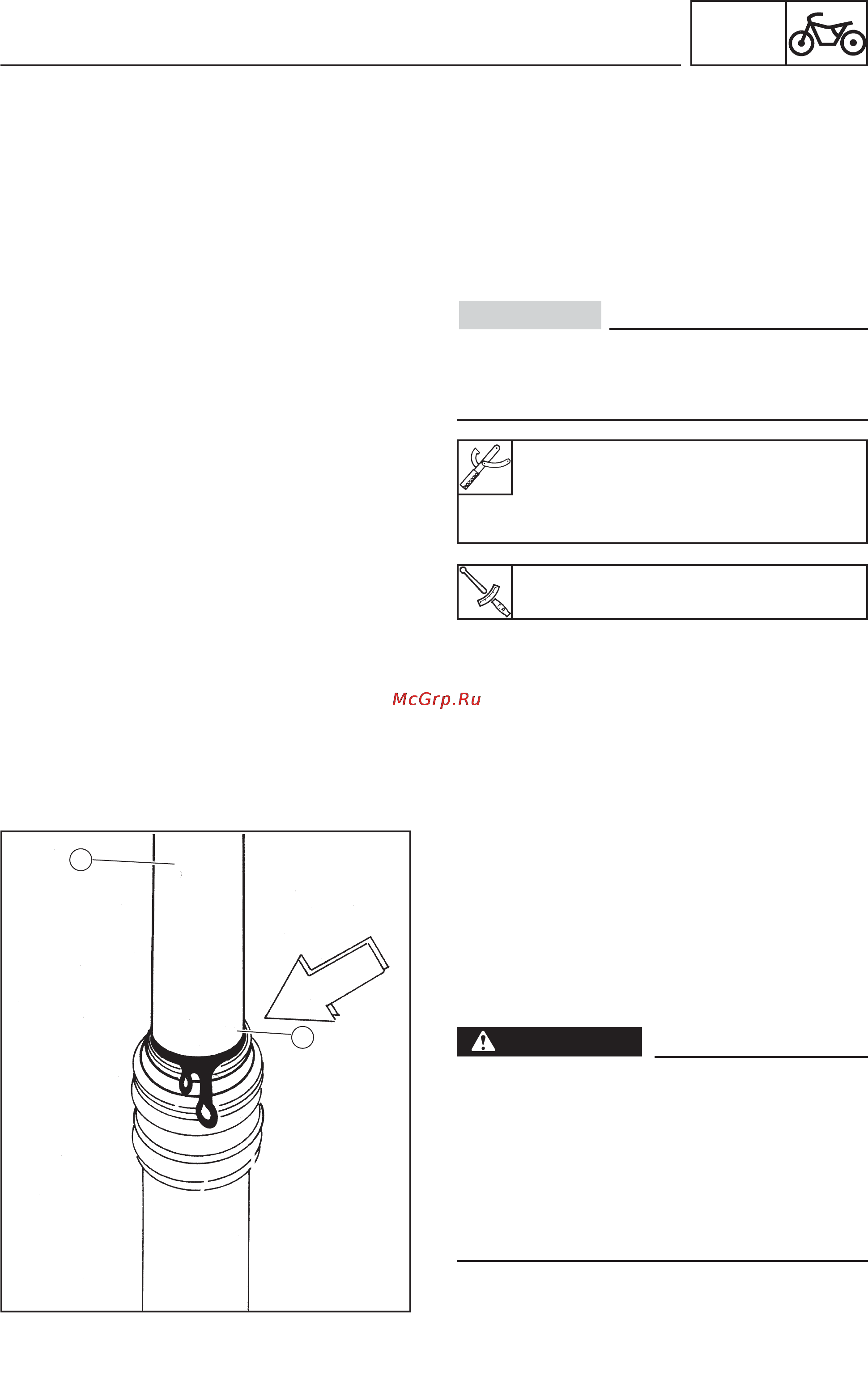

OIL LEAKAGE FROM DUST SEAL

If there is a leakage of oil from between the dust

seal (1) and the inner tube (2) replace the oil seal

(refer to “SEAL AND BUSH REPLACEMENT”

section).

ANOMALOUS HYDRAULIC BRAKING

If the fork shows an anomalous hydraulic braking

effect it is necessary to overhaul the damper cylin-

der assembly.

WARNING

Never tamper with the damper cylinder

assembly! This operation should be done by

authorized personnel. Tampering with the

damper cylinder assembly by non authorized

personnel can compromise the safety of the

front fork. The building firm will not assume

any responsibility for any damages resulting

from such action.

19. Insert:

•

Damper cylinder assembly (in the inner

tube)

20. Insert an Allen key in the bolt (3) at the bot-

tom of the outer tube and the special tool (1)

with the holder (2) on the damper cylinder

assembly and screw the bolt completely.

During tightening the bolt ensure that the end

of the damper rod holder is correctly engaged

on the damper cylinder assembly.

CAUTION:

21. Fill:

•

Fork leg oil

Refer to “OIL REPLACEMENT”section.

T-handle (1):

90890-01326

Front fork damper rod holder (2):

90890-01460

Damper cylinder assembly bolt (3):

25 Nm (2.5 kgm)
