Yamaha TT600RE (2004) [286/382] Carburetor
![Yamaha TT600RE (2004) [286/382] Carburetor](/views2/1121411/page286/bg11e.png)
CARB

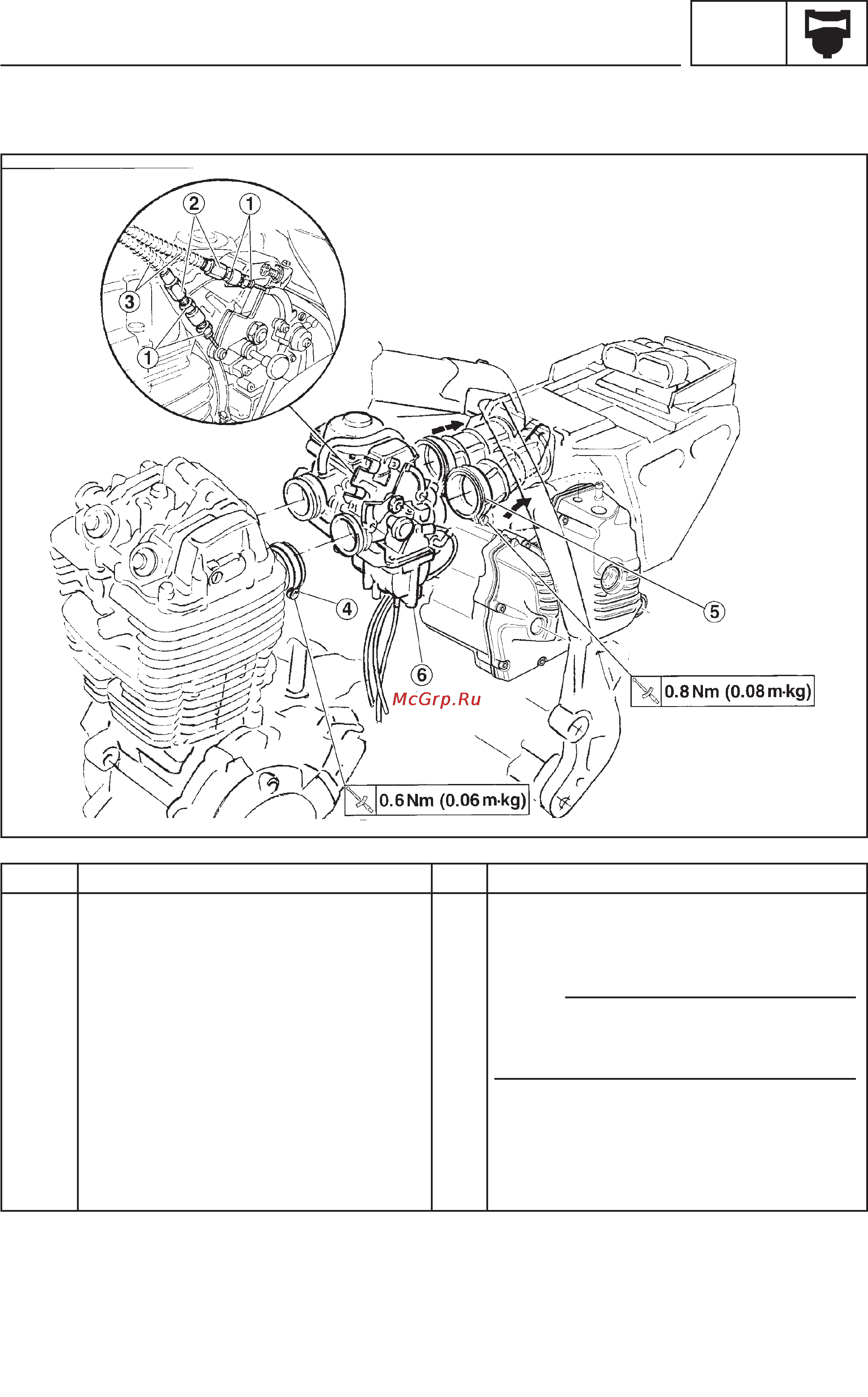

CARBURETOR REMOVAL
6-1
CARBURETOR
CARBURETOR REMOVAL
Order Job name/Part name Q.ty Remarks
Carburetor removal Remove the parts in order.
Seat Refer to “SEAT, FUEL TANK AND REAR
COWLING" section in CHAPTER 3.
Fuel pipe NOTE:
Fuel tank Be sure the cap is properly tightened and
the fuel cock is in the “OFF” position before
removing the fuel tank.
1 Lock nut 4 Loosen.
2 Throttle cable adjuster 2 Screw.
3 Throttle cable 2
4 Hose clamp 2 Loosen.
