Yamaha TT600RE (2004) [337/382] Electrical starting system
![Yamaha TT600RE (2004) [337/382] Electrical starting system](/views2/1121411/page337/bg151.png)
ELEC

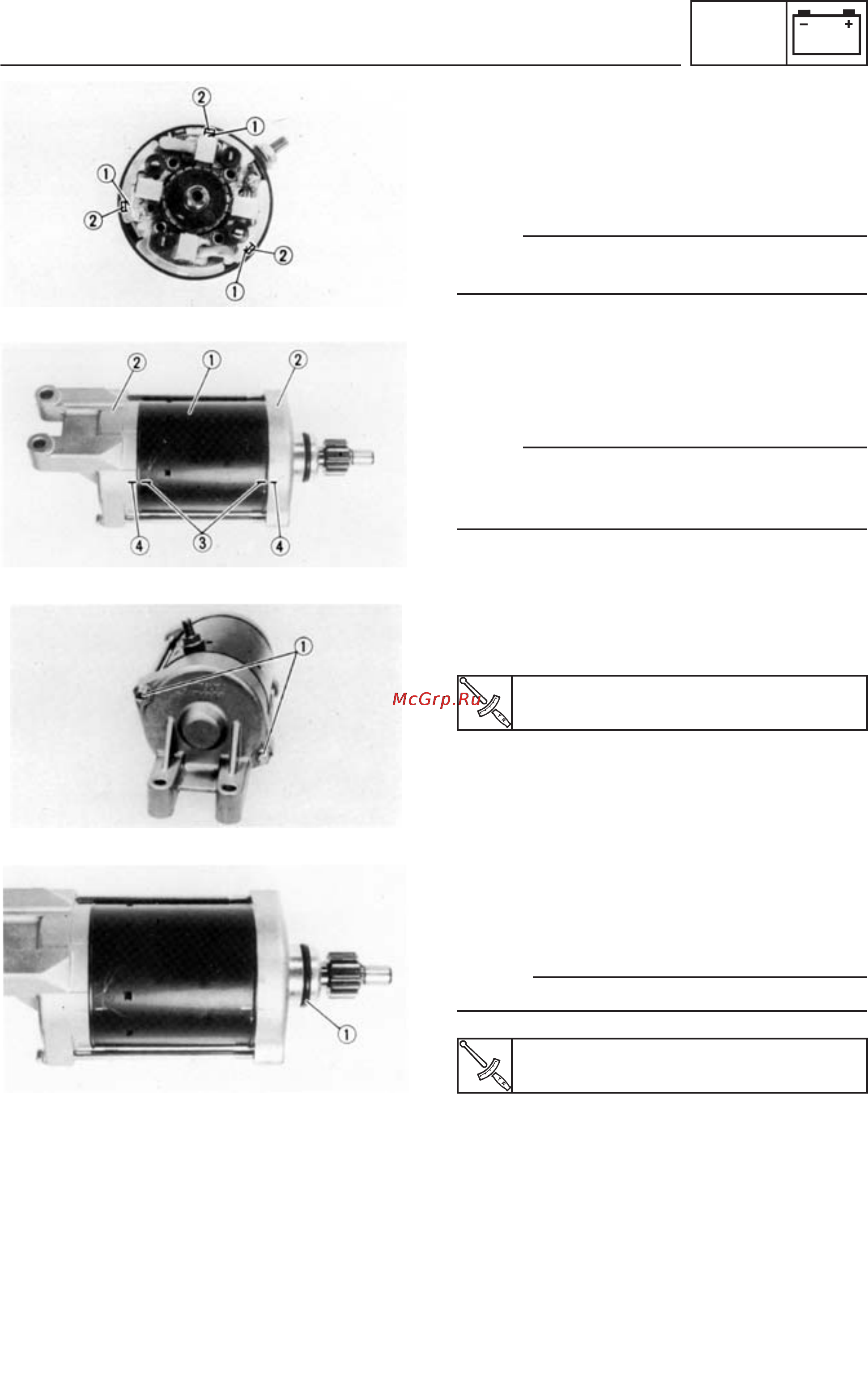

ELECTRICAL STARTING SYSTEM
7-33
Assembly
Revert the disassembly procedure.
Pay attention to the following points:
1. Install:
•
Brush housing
2. Install:
•
Stator (1)
•
Front bracket (2)
NOTE:
Align the jutting surface on the brush housing with
the slot (2).
NOTE:
Align the reference marks (3) on the stator with
the corresponding reference marks on the cover
(4).
3. Install:
•
Screws (1)
Installation
1. Install:
•
Starter motor.
Screw (stator):
7 Nm (0.7 kgm)
Screw (starter motor):
10 Nm (1.0 kgm)
NOTE:
Slightly grease the O-Ring (1)
