ENGINE ASSEMBLY AND SETTING
5-64
ENG

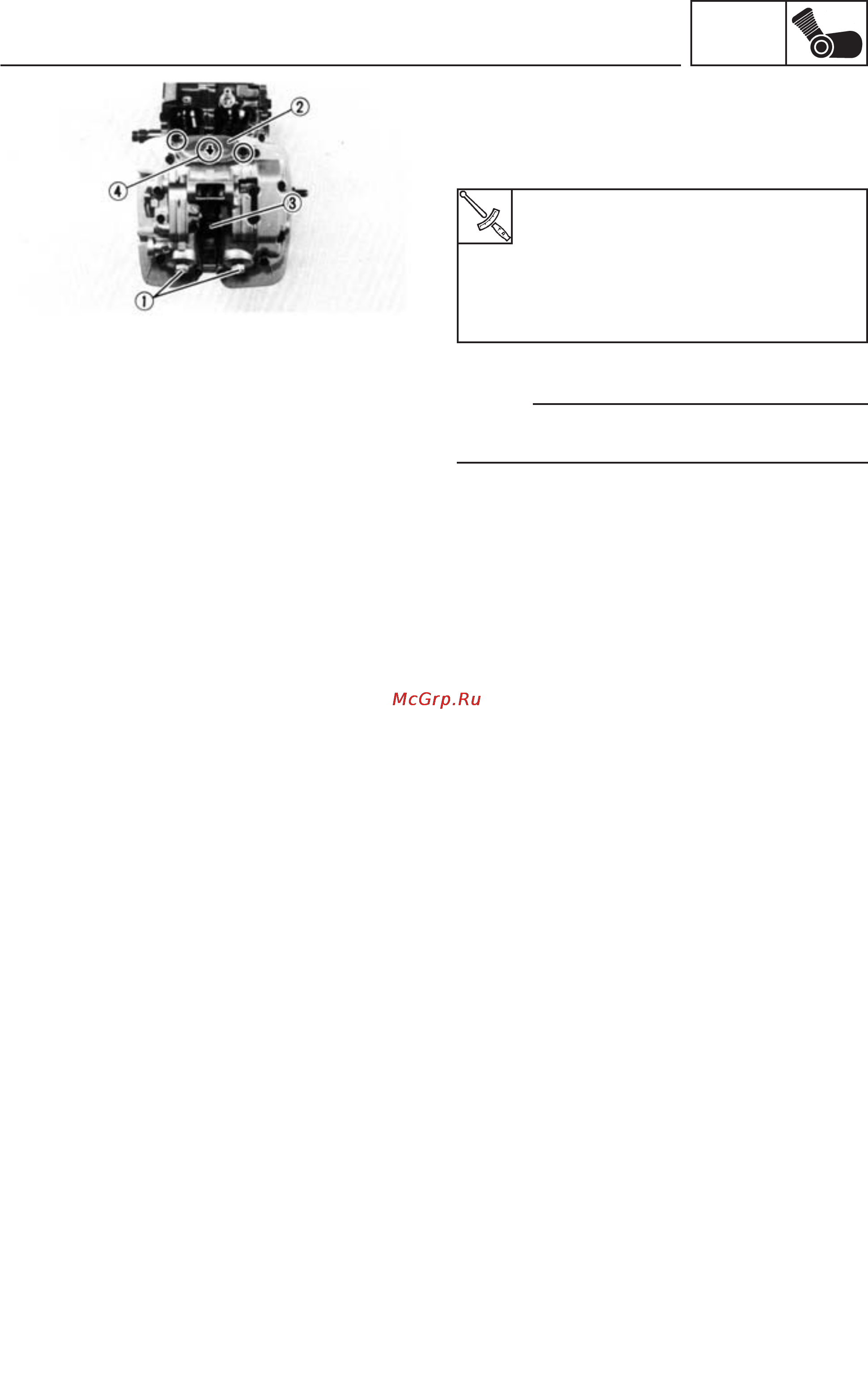

15. Install:
•
Tappet covers (1) (exhaust)
•
Tappet cover (2) (intake)
•
Spark plug (3)
Tappet cover (exhaust):
12 Nm (1.2 mkg)
Screw (tappet cover-intake):
10 Nm (1.0 mkg)
Spark plug:
18 Nm (1.8 mkg)
NOTE:
The tappet cover (intake) should be assembled
with the arrow (4) pointing upwards.
