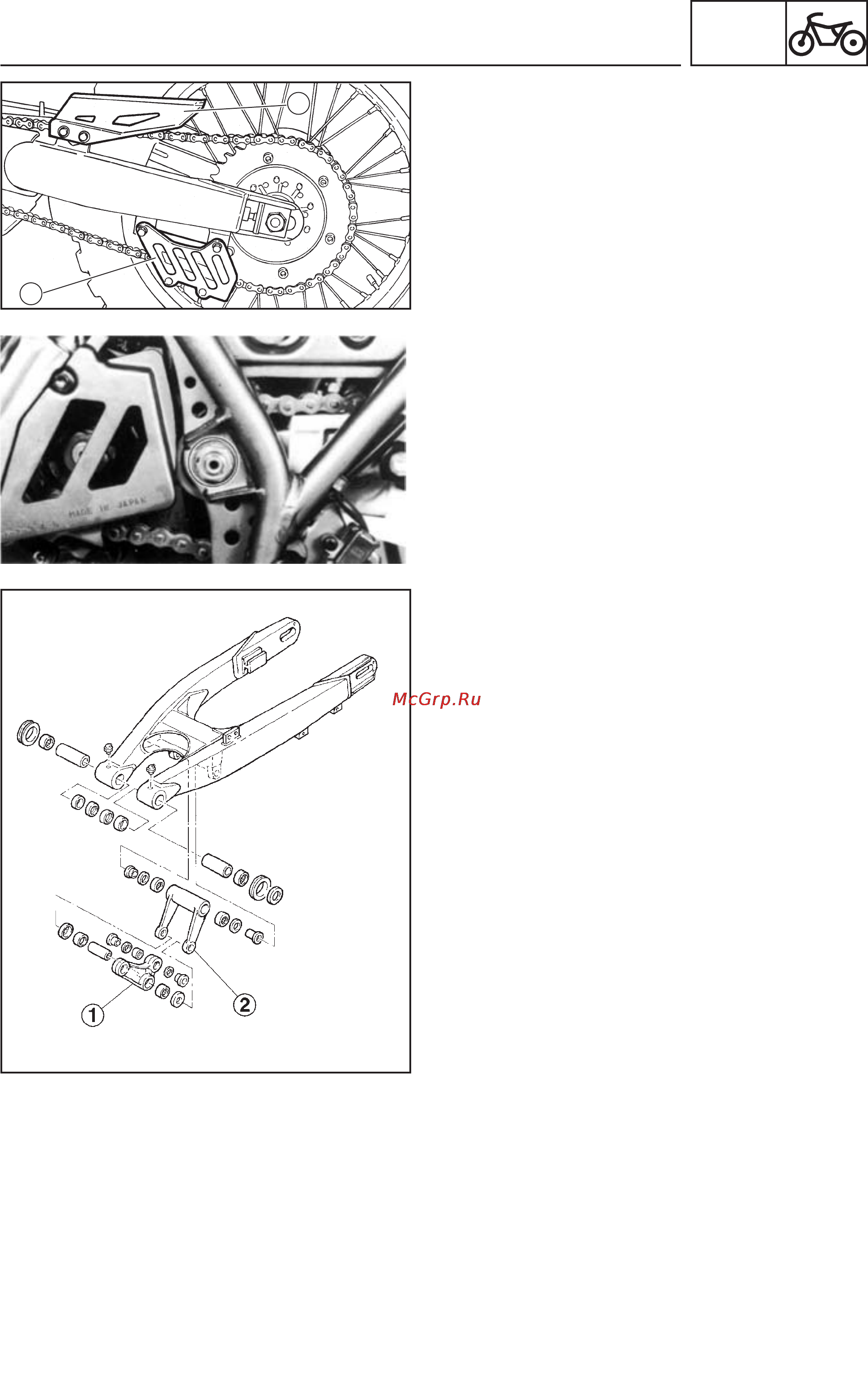

SWINGARM
CHAS
4-78
3. Remove:
•
Upper chain case (1)
•
Chain support (2)
4. Remove:
•
Swingarm pivot shaft
•
Swingarm
SWINGARM INSPECTION
1. Inspect:
•
Swingarm
Deformation/Cracks/Damage ➔ Replace.
2. Inspect:
•
Connecting rod (1)
•
Relay arm (2)
Deformation/Cracks/Damage ➔ Replace.
3. Inspect:
•
Oil seals
Wear/Damaged ➔ Replace.
•
Washers
•
Thrust cover
Wear/Damaged ➔ Replace.
•
Bushes
Scratches/Damaged ➔ Replace.
•
Bearings
Pitting/Damaged ➔ Replace.
4. Inspect:
•
Chain guard seal
•
Chain case and support
Wear/Damage ➔ Replace.
1
2
