ENGINE ASSEMBLY AND SETTING
5-66
ENG

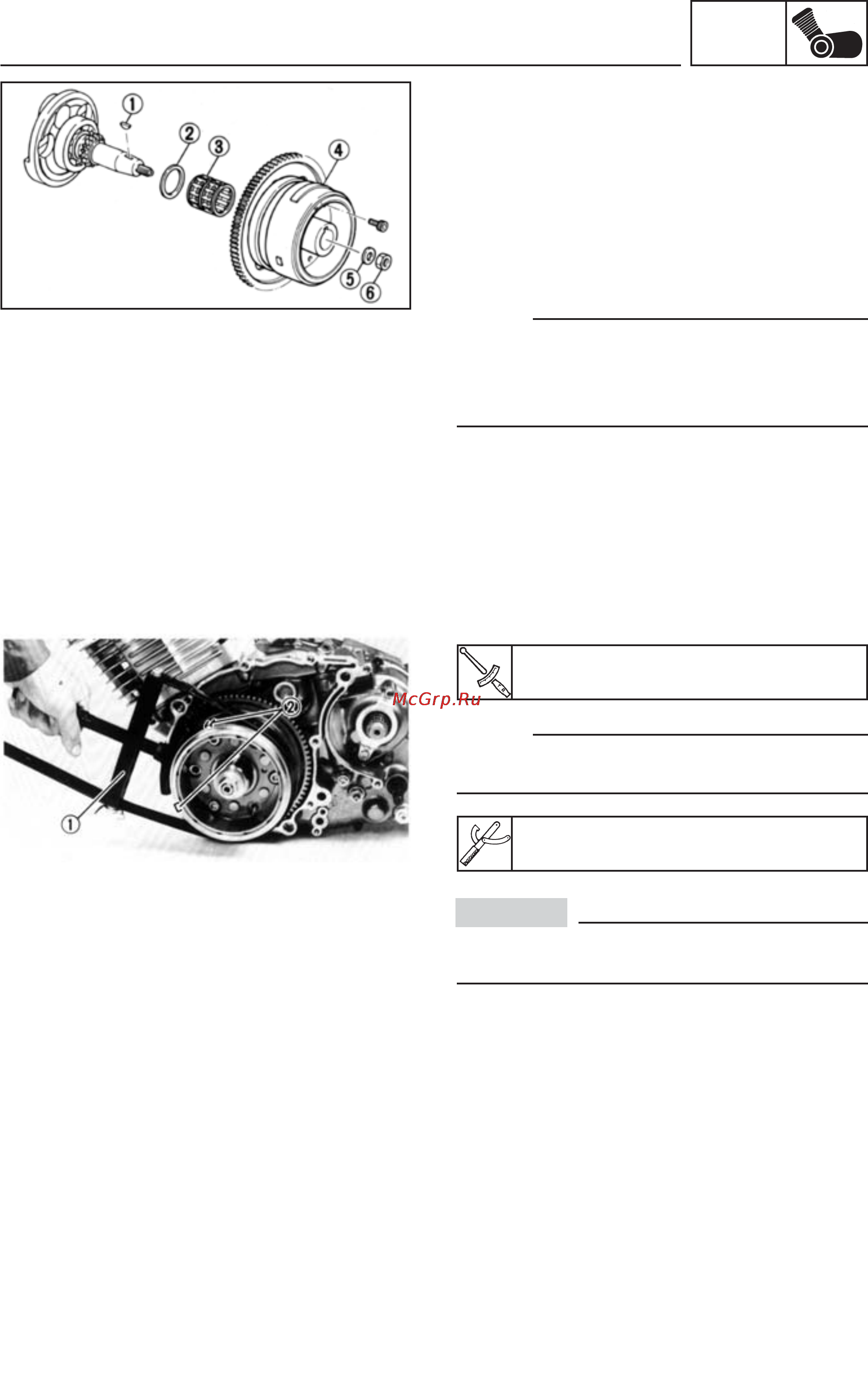

AC GENERATOR
1. Install:
•
Woodruff key (1)
•
Washer (2)
•
Bearing (3)
•
Rotor (4)
•
Washer (5)
•
Nut (6)
NOTE:
When installing the AC generator rotor, check that
the woodruff key fits properly into its seat on the
crankshaft. Apply a thin layer of lithium soap-
based grease on the conical tip of the crankshaft.
2. Tighten:
•
Nut (rotor)
Nut (rotor):
120 Nm (12.0 mkg)
NOTE:
To tighten the nut, lock the rotor with the special
tool (1).
Sheave holder:
P/N. 90890-01701
Be careful not to touch the jutting edges (2) on
the rotor with the sheave holder.
CAUTION:
