ENGINE ASSEMBLY AND SETTING

5-61

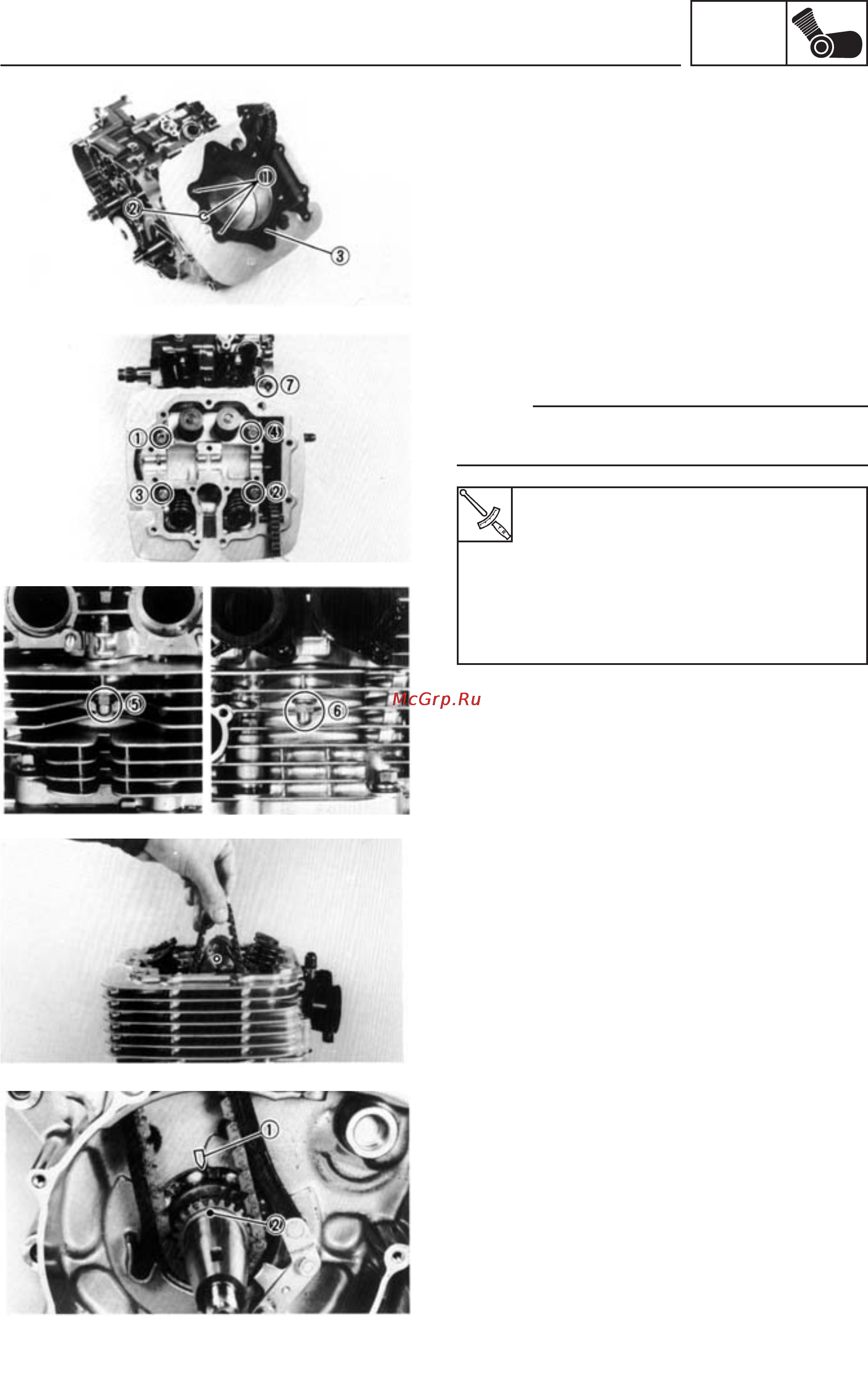

7. Install:

•

Dowel pins (1)

•

O-Ring (2)

•

Gasket (3) (cylinder head)

▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼

Cylinder head:

Screw (l), (2), (3) and (4):

29 Nm (2.9 mkg)

Nut (5) and (6):

22 Nm (2.2 mkg)

Screw (7):

10 Nm (1.0 mkg)

8. Install:

•

Cylinder head

NOTE:

Tighten screws beginning with the one with the

lowest number.

9. Install:

•

Chain stopper guide

•

Camshaft

•

Cam chain sprocket

Timing chain installation:

•

Install the cam chain on the cylinder head as

illustrated (compression phase timing).

•

Run the cam shaft in an anticlockwise direc-

tion until the mark on the crankcase (1) and

the point on the cam chain gearwheel (2) are

aligned.
