ENG
ENGINE ASSEMBLY AND SETTING
5-41
ENGINE ASSEMBLY AND SETTING

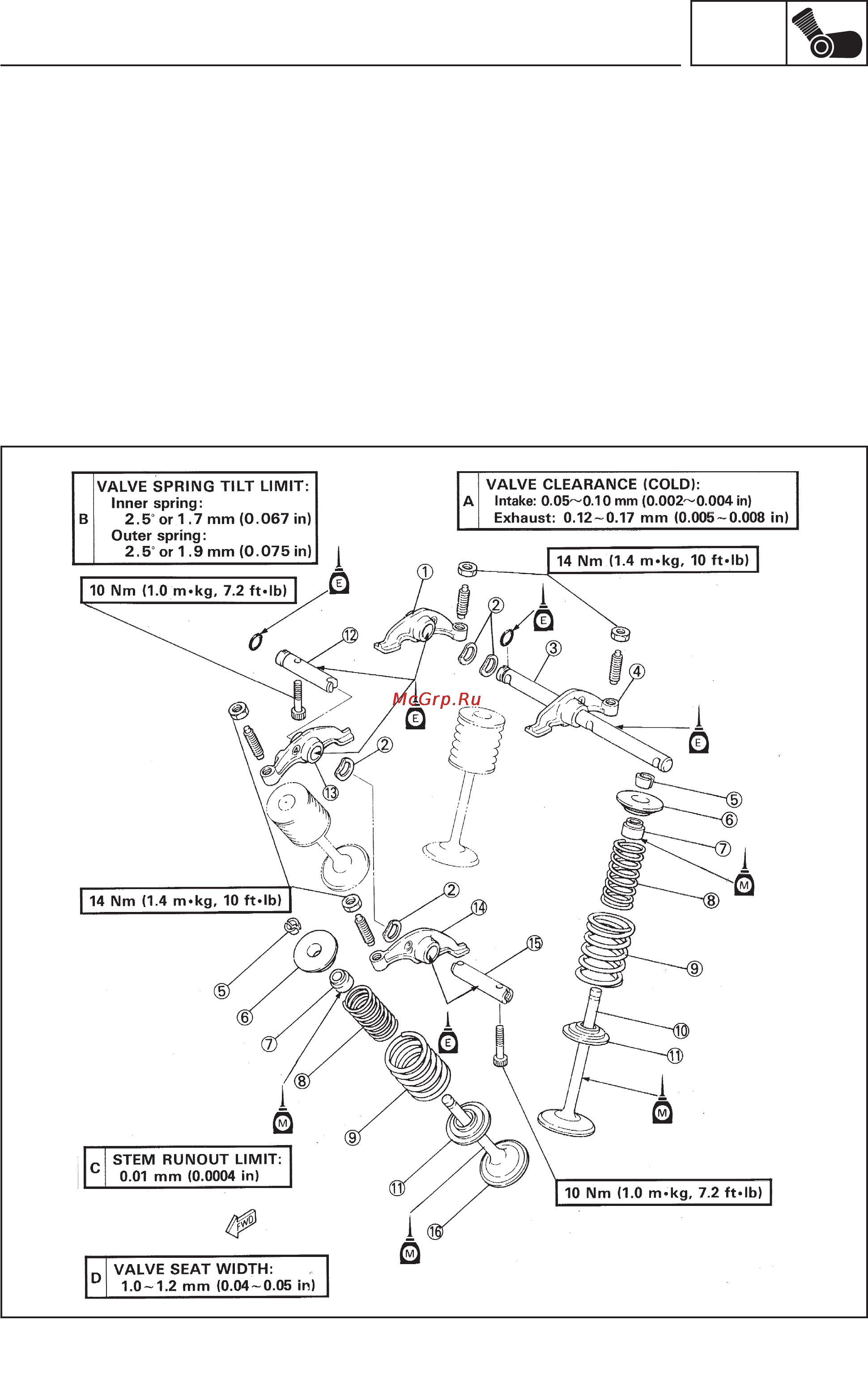

VALVES AND ROCKER ARMS
(1) Rocker arm n. 2
(2) Wave washer
(3) Rocker shaft (intake)
(4) Rocker arm n. 1
(5) Valve cotters
(6) Upper valve spring
retainer
(7) Oil seal
(8) Inner valve spring
(9) Outer valve spring
(10) Valve (intake)
(11) Lower valve spring
retainer
(12) Rocker shaft
(exhaust)
(13) Rocker arm n. 4
(14) Rocker arm n. 3
(15) Rocker shaft
(exhaust)
(16) Valve (exhaust)
