Yamaha TT600RE (2004) [256/382] Engine assembly and setting

ENGINE ASSEMBLY AND SETTING

5-52

ENG

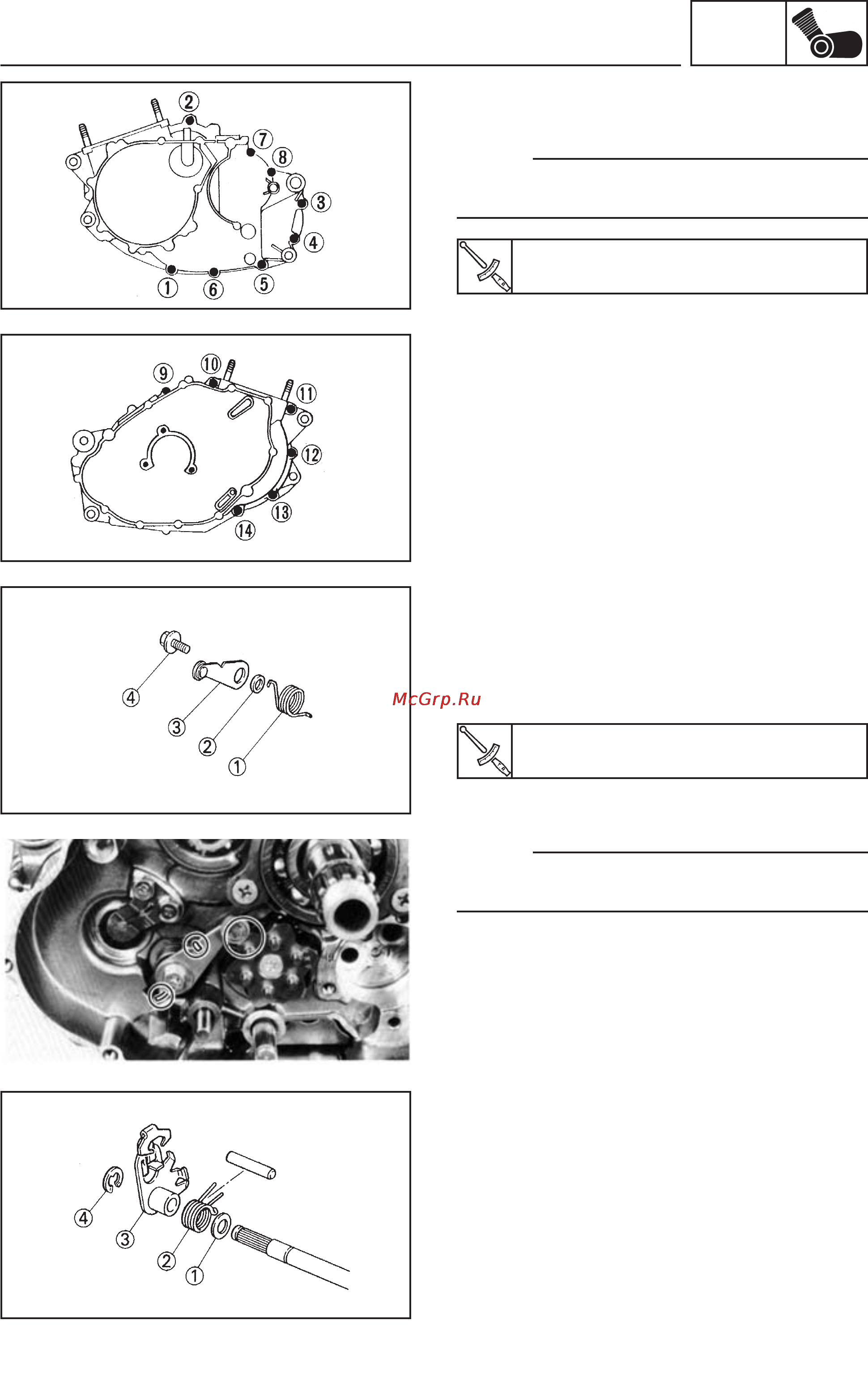

4. Tighten:

•

Screws (crankcase) (1) ~ (14)

NOTE:

Tighten the screws beginning with the one with

the lowest number.

Screw (crankcase):

10 Nm (1.0 mkg)

Stopper lever screw (4):

10 Nm (1.0 mkg)

5. Apply:

•

4-stroke engine oil

(to the connecting rod pin, the bearing and

the oil passage).

6. Check:

•

Gearbox and transmission functioning

Jerky functioning ➔ Replace.

SHIFT SHAFT AND OIL PUMP

1. Install

•

Spring (1)

•

Collar (2)

•

Stopper lever (3)

NOTE:

Place the stopper lever and the spring in the cor-

rect position.

2. Install:

•

Plate washer (1)

•

Spring (2)

•

Shift lever (3)

•

Circlip (4)
