Yamaha TT600RE (2004) [217/382] Engine disassembly

ENG

ENGINE DISASSEMBLY

5-13

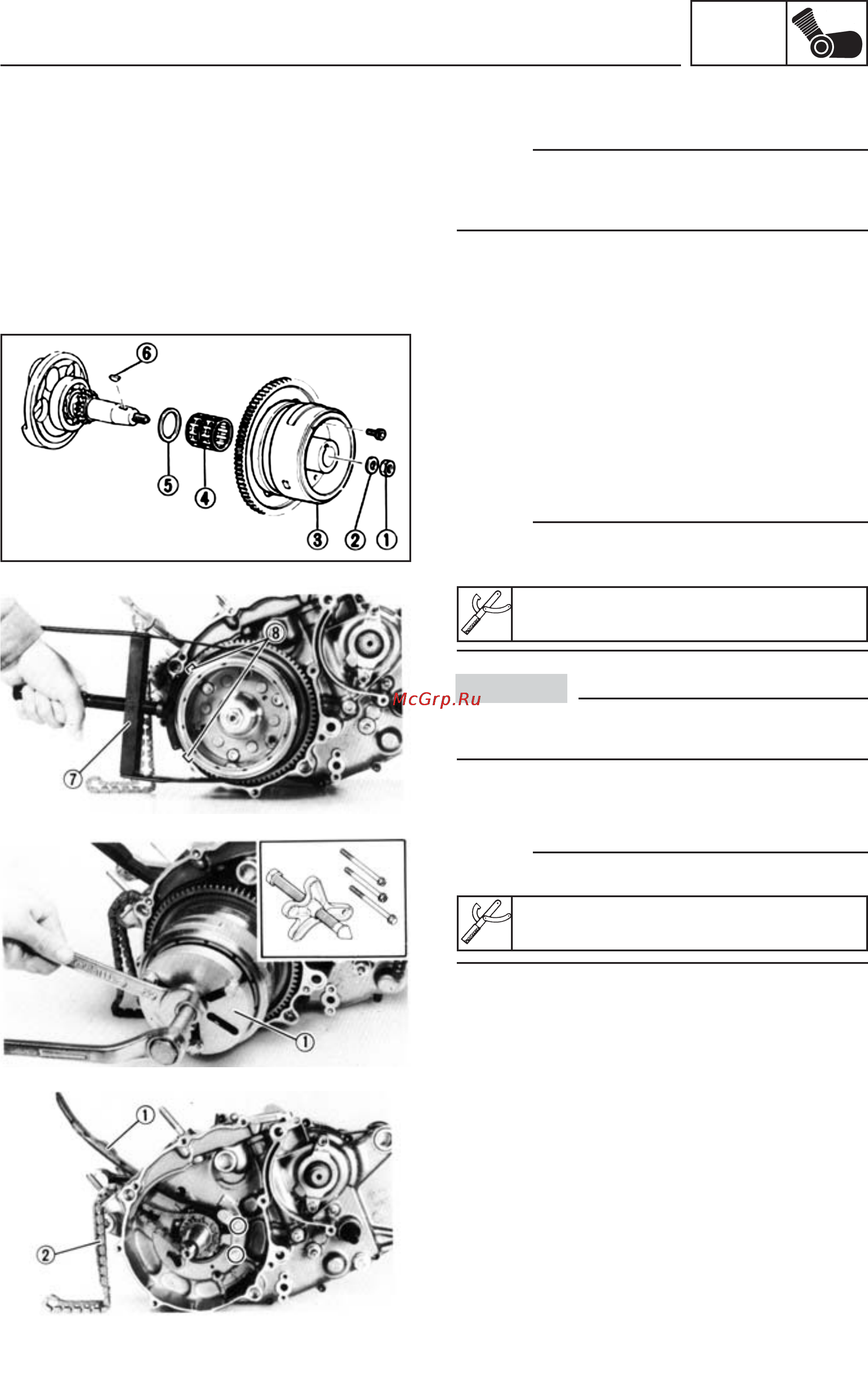

AC GENERATOR AND TIMING CHAIN

NOTE:

The AC generator may be inspected with the

engine installed by removing the following parts:

•

Crankcase (L)

1. Remove:

•

Nut (1)

•

Washer (2)

•

Rotor (3) (with starter gear)

•

Bearing (4)

•

Shim adjustment washer (5)

•

Key (6)

NOTE:

To loosen the nut (rotor), lock the rotor with the

special tool (7).

Sheave holder:

P/N. 90890-01701

Flywheel puller:

P/N. 90890-01362

Be careful not to touch the jutting edges (8) on

the rotor with the special tool.

CAUTION:

NOTE:

Remove the rotor with the puller (1).

2. Remove:

•

Chain guide (1)

•

Timing chain (2)
