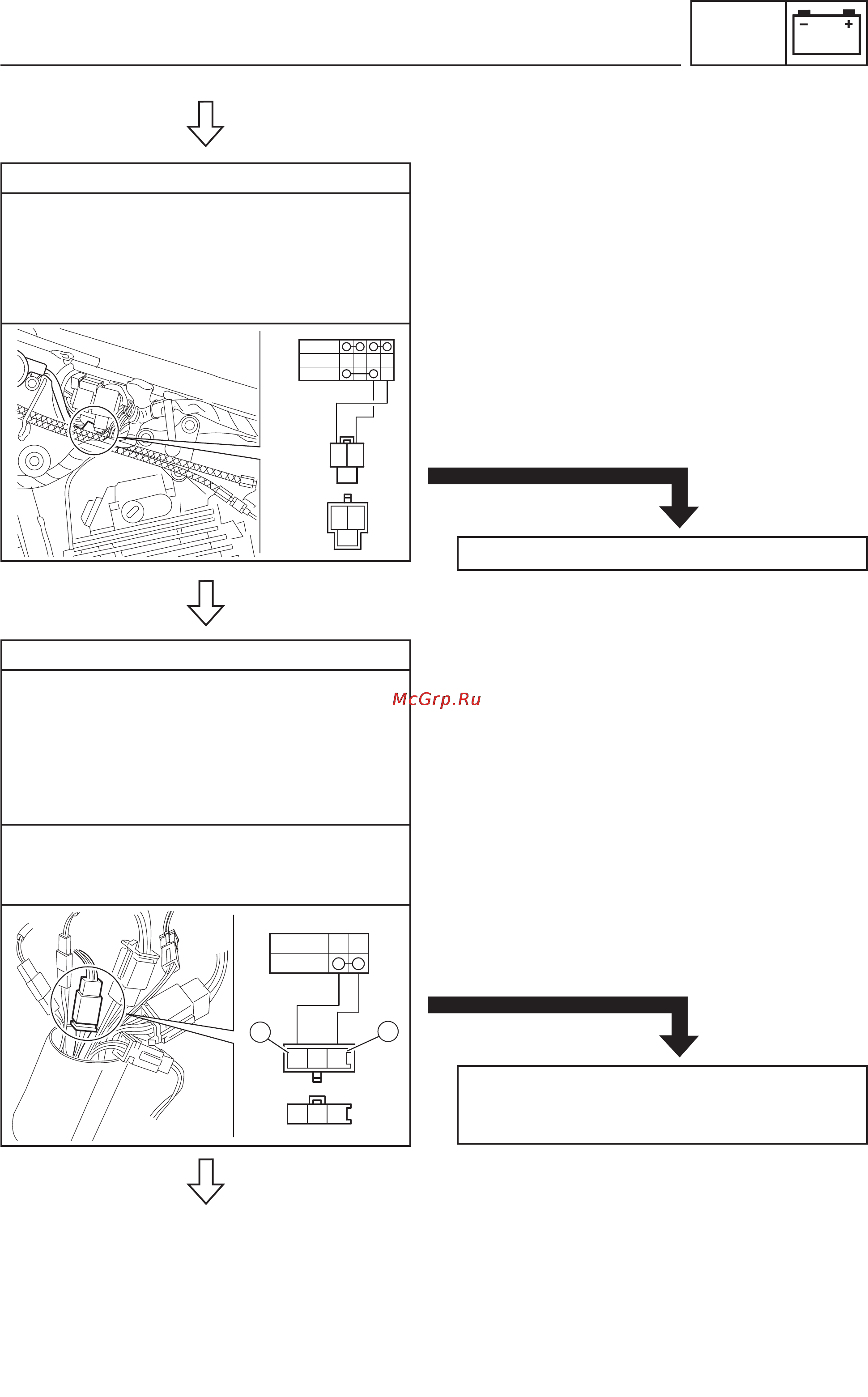

ELECTRICAL STARTING SYSTEM
7-26
ELEC
5. Main switch
•
Disconnect the main switch connector
from the wire harness.
•
Connect the pocket tester (Ω x 1) to the
main switch cables.
Refer to “SWITCH CHECK” in Chapter 3.
CORRECT
INCORRECT
The main switch is defective. Replace.
ON
OFF
PARK
Br L
R
Br L
R
6. Emergency stop engine switch.
•
Disconnect the emergency stop engine
switch connector (Brown, Green/Yellow
and Red/Black) from the wire harness.
•
Connect the pocket tester (Ω x 1) to the
switch cables.
Refer to “SWITCH CHECK” in Chapter 3.
Tester terminal (+) ➔
Red/Black (1) cable
Tester terminal (–) ➔ Brown cable (2)
INCORRECT
The emergency stop engine switch is defective.
Replace the right handlebar switch.
*
CORRECT
*
OFF
RUN
Br
Br
GY
GY
RB
RB
2
1
