Yamaha TT600RE (2004) [267/382] Engine assembly and setting
![Yamaha TT600RE (2004) [267/382] Engine assembly and setting](/views2/1121411/page267/bg10b.png)
ENG
ENGINE ASSEMBLY AND SETTING
5-63

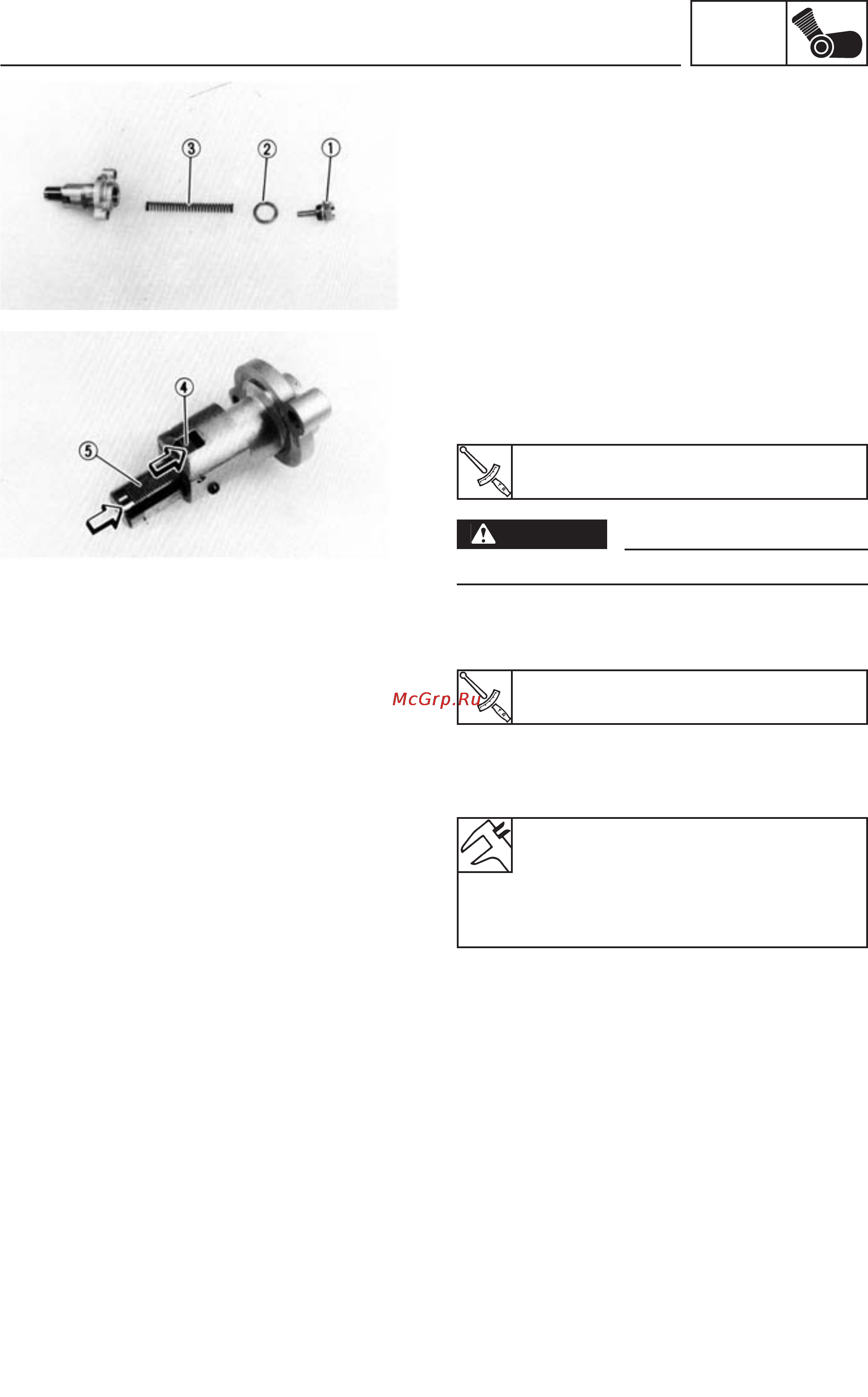

13. Install:
•
Chain tensioner
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
Assembly steps:
•
Remove the chain tensioner screw (1), the
washer (2) and the spring (3).
•
Release the chain tensioner unidirectional
cam (4) and push the thrust rod (5).
•
Install the chain tensioner in the cylinder with
a new gasket.
Screw (chain tensioner body):
10 Nm (1.0 mkg)
Chain tensioner screw:
20 Nm (2.0 mkg)
WARNING
Always use a new gasket.
•
Install the spring, the washer and the chain
tensioner.
14. Adjust:
•
Valve clearance
Valve clearance:
Intake
0.05 ~ 0.10 mm
Exhaust
0.12 - 0.17 mm
See section “VALVE CLEARANCE
ADJUSTMENT” in CHAPTER 3.
