SIGNAL SYSTEM
7-56
ELEC

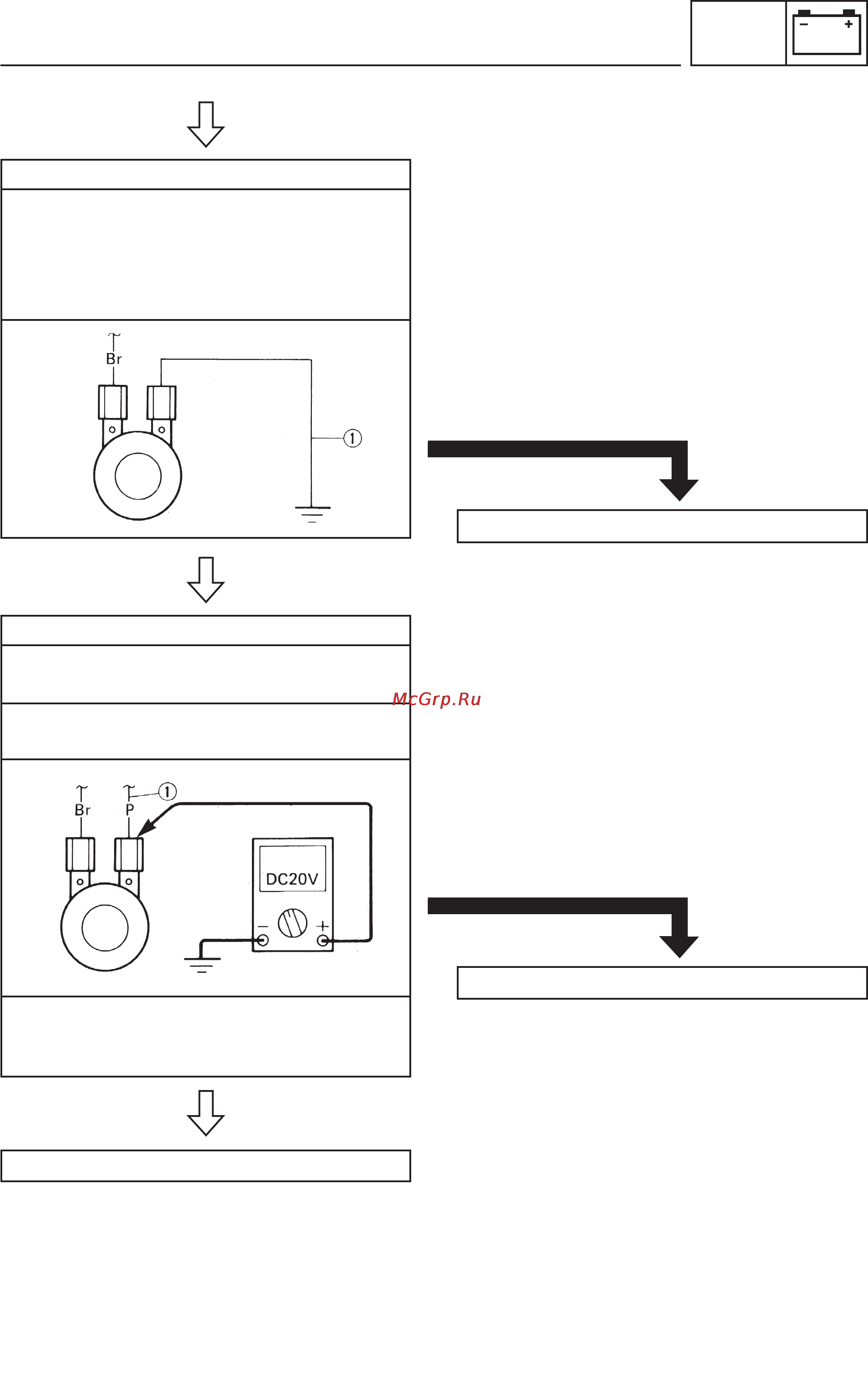

3. Horn.
•
Disconnect the “Pink” cable from horn ter-
minal.
•
Connect a special cable (1) to the horn
terminal and earth the cable.
•
Turn the main switch to ON.
THE HORN DOES
NOT WORK
THE HORN WORKS
The horn is efficient.
4. Voltage.
•
Connect the pocket tester (DC 20V) to the
“Pink” terminal of the horn.
Tester terminal (+) ➔ Pink cable (1)
Tester terminal (–) ➔ Earth
•
Turn the main switch to ON.
•
Check the voltage (12V) on the “Pink” ter-
minal of the horn.
OUT OF SPECIFICATION
The horn is defective. Repair.
IN COMPLIANCE WITH
SPECIFICATIONS (12V)
*
Repair or replace the horn.
