Yamaha TT600RE (2004) [263/382] Engine assembly and setting

ENG

ENGINE ASSEMBLY AND SETTING

5-59

PISTON, CYLINDER, CYLINDER HEAD AND

CAMSHAFT

1. Apply:

•

4-stroke engine oil

(on piston pin).

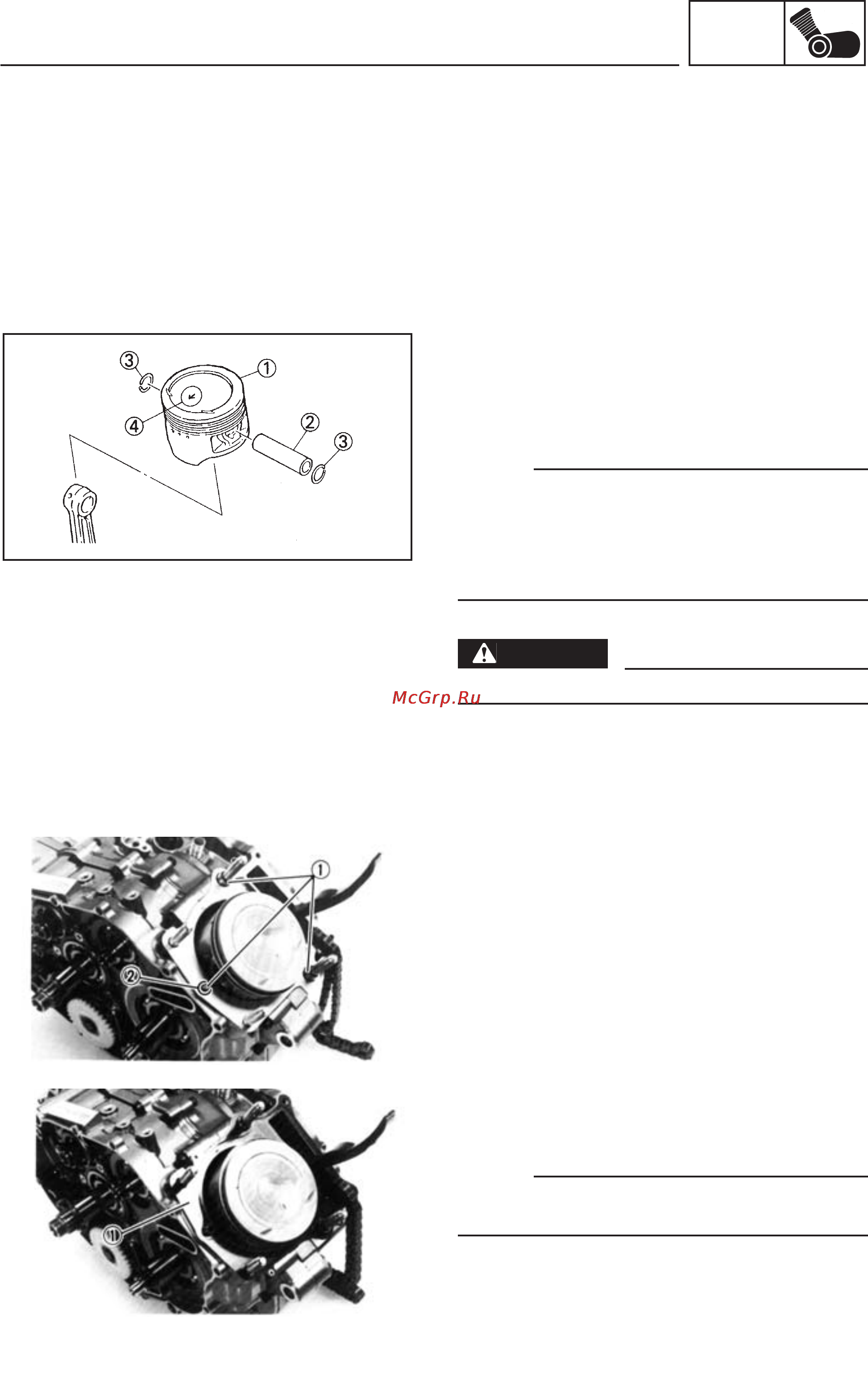

2. Install:

•

Piston (1)

•

Pin (2)

•

Circlip (3)

NOTE:

•

Arrow (4) on the piston must point towards the

front of the engine.

•

Before installing the piston pin circlips, cover

the crankcase with a clean cloth to prevent

foreign bodies falling into it.

WARNING

Always use new circlips for the piston pin.

3. Install:

•

Dowel pins (1)

•

O-Ring (2)

4. Install:

•

Gasket (1) (cylinder)

NOTE:

Install the cylinder gasket as shown in the illustra-

tion.
