![Yamaha TT600RE (2004) [122/382] Front wheel and brake disc](/img/pdf.png)
Yamaha TT600RE (2004) [122/382] Front wheel and brake disc
![Yamaha TT600RE (2004) [122/382] Front wheel and brake disc](/views2/1121411/page122/bg7a.png)
CHAS
FRONT WHEEL AND BRAKE DISC
4-7

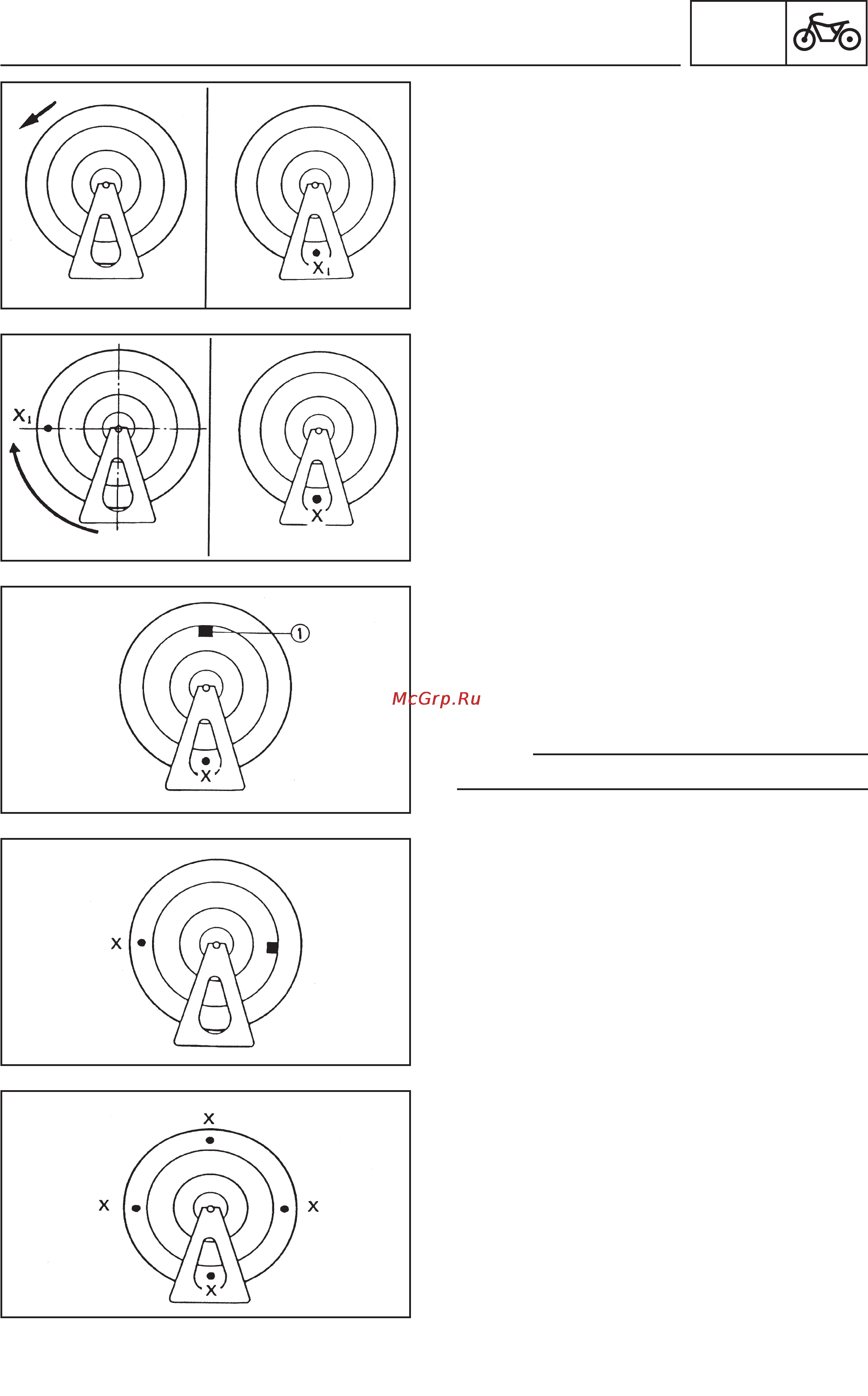

4. Adjust:
•
Wheel static balance
Adjusting steps:
•
Install a balancing weight (1) on the rim exact-
ly opposite to the heavy spot “X”.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
•
Turn the wheel so that the heavy spot is 90°
up.
•
Check that the heavy spot is at rest there. If
not, try another weight until the wheel is bal-
anced.
NOTE:
Start with the smallest weight.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
5. Check:
•
Wheel static balance
Checking steps:
•
Turn the wheel so that it comes to each point
as shown.
•
Check that the wheel is at rest at each point.
If not, readjust the front wheel static balance.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
Procedure:
a. Spin the wheel and wait for it to rest.
b. Put an “X
1
” mark on the wheel’s bottom spot.
c. Turn the wheel so that the “X
1
” mark is 90° up.
d. Release the wheel and wait for it to rest.
Put an “X
2
” mark on the wheel’s bottom spot.
e. Repeat the above b., c., and d. several times
until all marks come to the same spot.
f. This spot is the wheel’s heavy spot “X”.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
