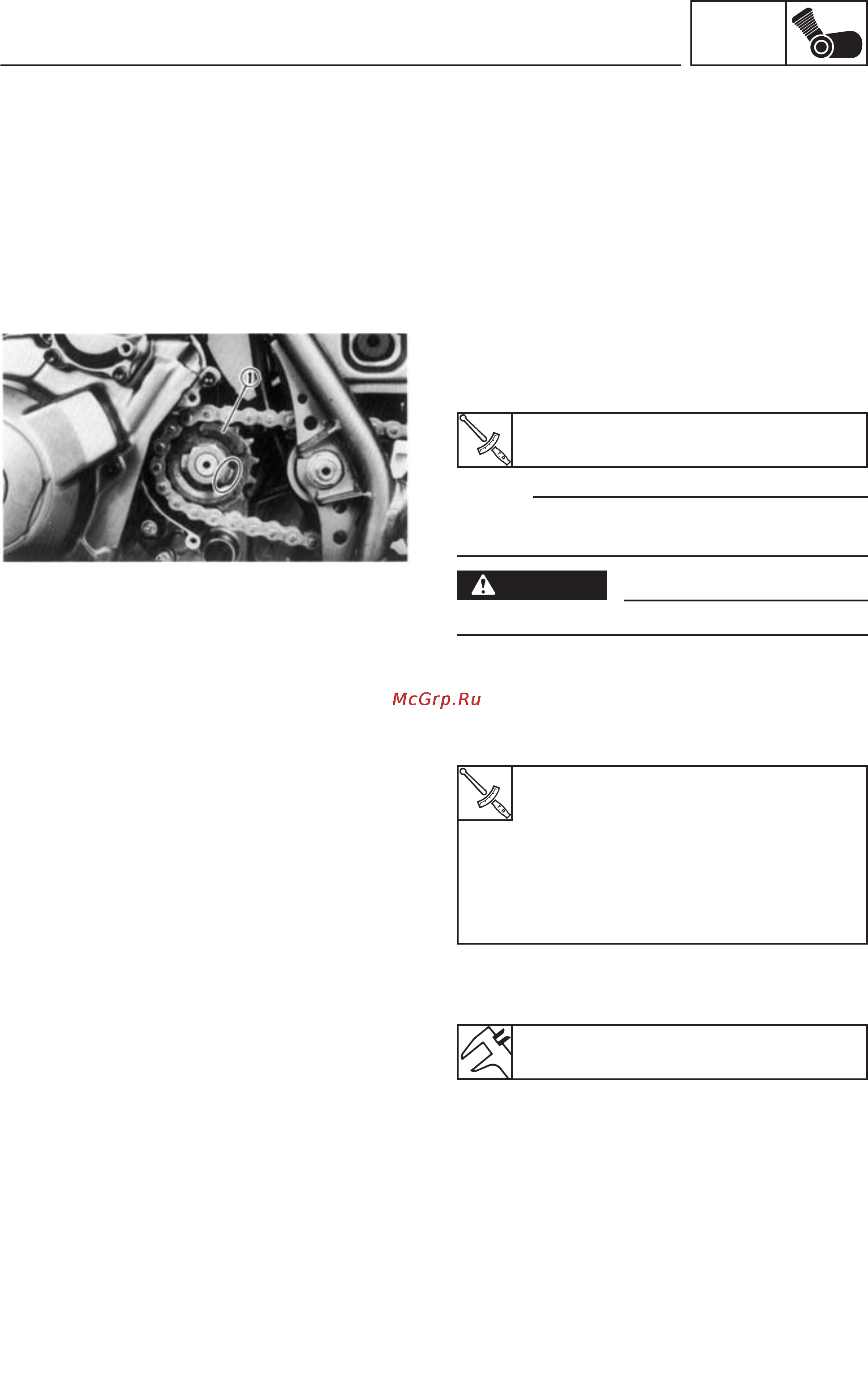

ENGINE REASSEMBLY
5-76
ENG
ENGINE REASSEMBLY
To reassemble the engine, repeat the procedures
described in the paragraph “ ENGINE REMOVAL”
in this chapter in reverse order. Pay attention to
the following points.
1. Install:
•
Sprocket (1)
•
Drive chain
Nut (sprocket):
110 Nm (11.0 mkg)
Drive chain slack:
30 ~ 40 mm
Screw (sprocket cover):
10 Nm (1.0 mkg)
Use LOCTlTE
®
Screw (shift ptidal):
10 Nm (1.0 mkg)
Screw (footrest):
48 Nm (4.8 mkg)
NOTE:
Bend the lock washer tab along the face of the
nut.
WARNING
Always use a new lock washer.
2. Install:
•
Cover (sprocket)
•
Shift pedal
•
Footrest (L)
3. Adjust:
•
Drive chain slack
See section “DRIVE CHAIN SLACK
INSPECTION AND ADJUSTMENT” in
CHAPTER
